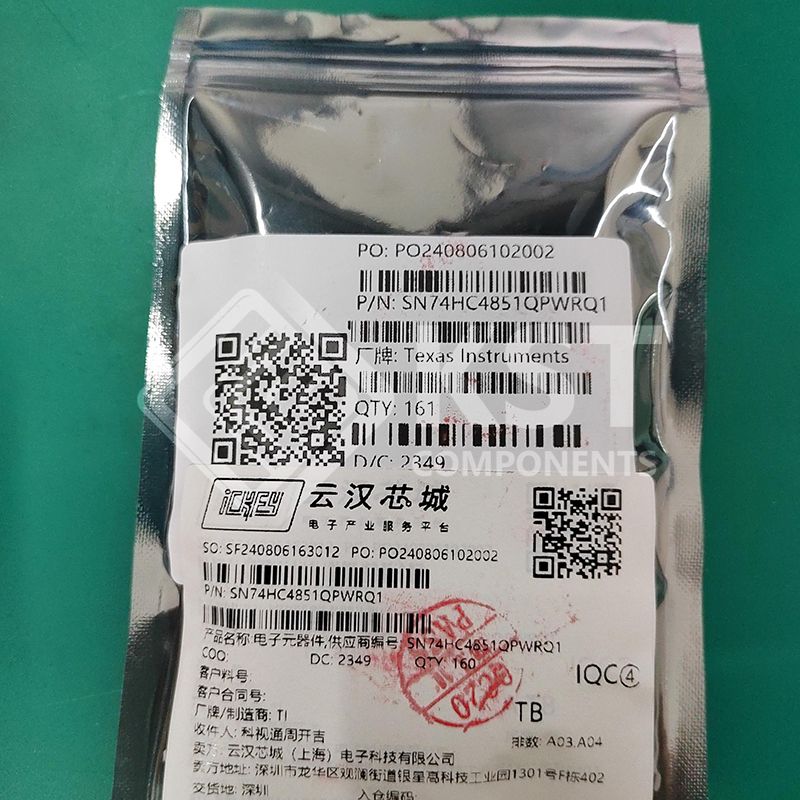

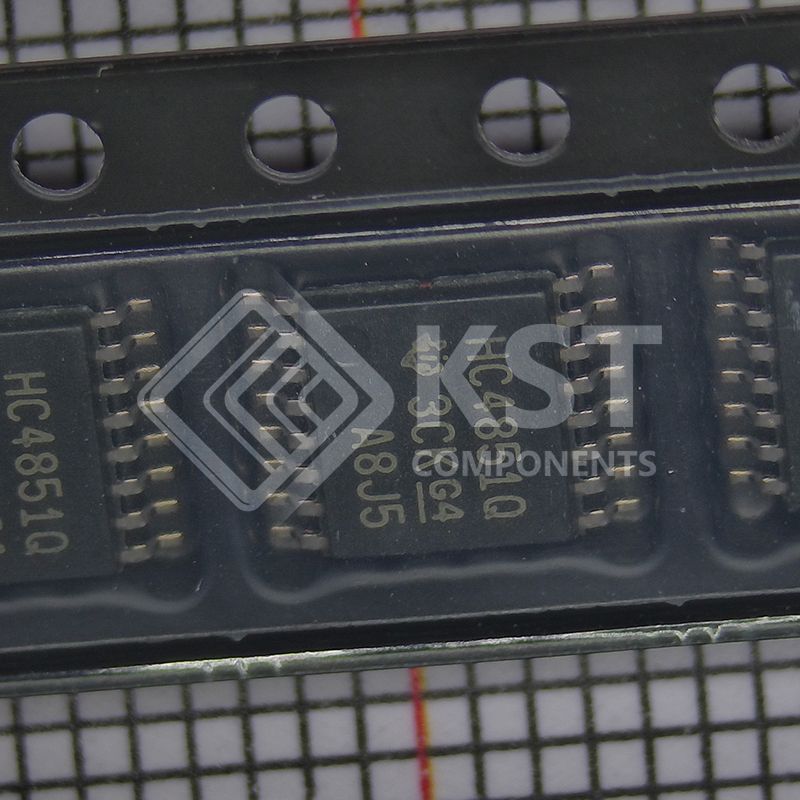

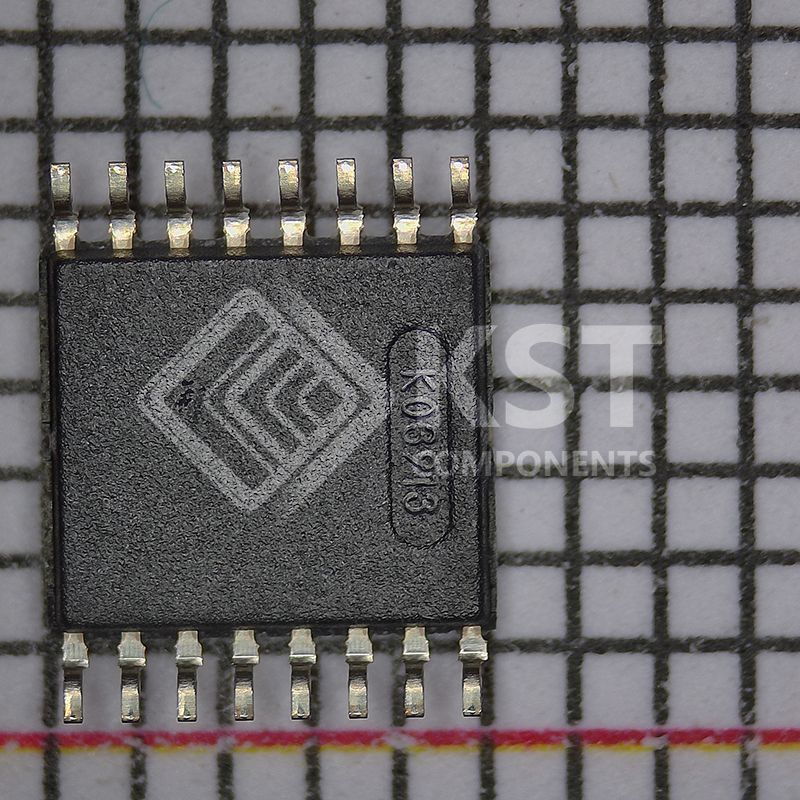

SN74HC4851QPWRQ1
Part Number:
SN74HC4851QPWRQ1
Product Classification:
Wire Cutters
Manufacturer:
3PEAK
Description:
IC MUX 8:1 195OHM 16TSSOP
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Integrated Circuits (ICs)
Interface
Analog Switches, Multiplexers, Demultiplexers
|
|
|
Manufacturer |
Texas Instruments
|
|
|
Series |
-
|
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Switch Circuit |
-
|
|
|
Multiplexer/Demultiplexer Circuit |
8:1
|
|
|
Number of Circuits |
1
|
|
|
On-State Resistance (Max) |
195Ohm
|
|
|
Channel-to-Channel Matching (ΔRon) |
3Ohm
|
|
|
Voltage - Supply, Single (V+) |
2V ~ 6V
|
|
|
Voltage - Supply, Dual (V±) |
-
|
|
|
Switch Time (Ton, Toff) (Max) |
78ns, 78ns
|
|
|
-3db Bandwidth |
-
|
|
|
Charge Injection |
-
|
|
|
Channel Capacitance (CS(off), CD(off)) |
22pF
|
|
|
Current - Leakage (IS(off)) (Max) |
200nA
|
|
|
Crosstalk |
-
|
|
|
Operating Temperature |
-40°C ~ 125°C (TA)
|
|
|
Grade |
Automotive
|
|
|
Qualification |
AEC-Q100
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |
16-TSSOP (0.173", 4.40mm Width)
|
|
|
Supplier Device Package |
16-TSSOP
|
|
|
Base Product Number |
74HC4851 |
