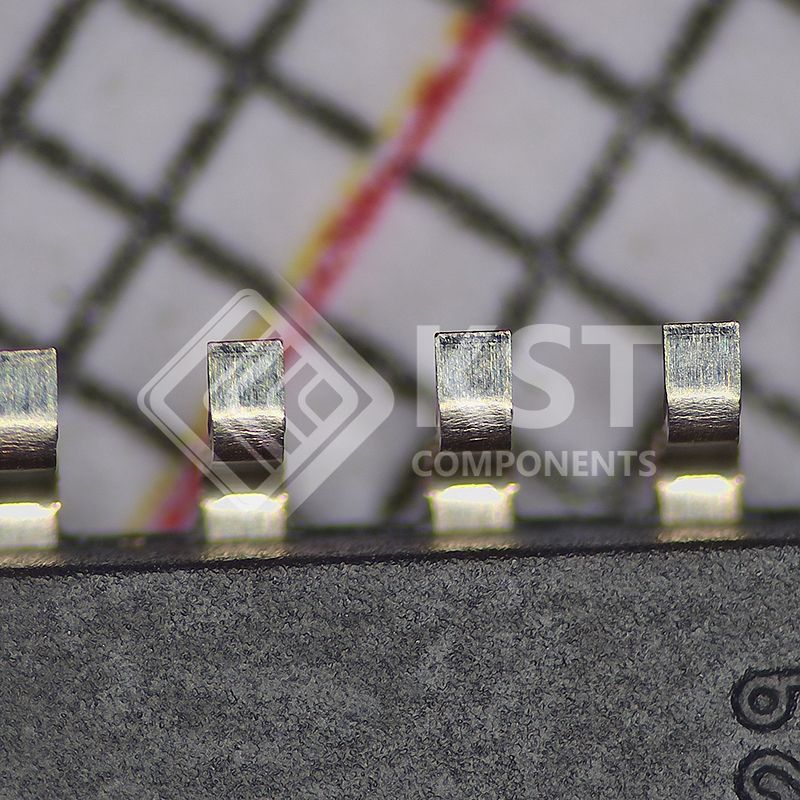

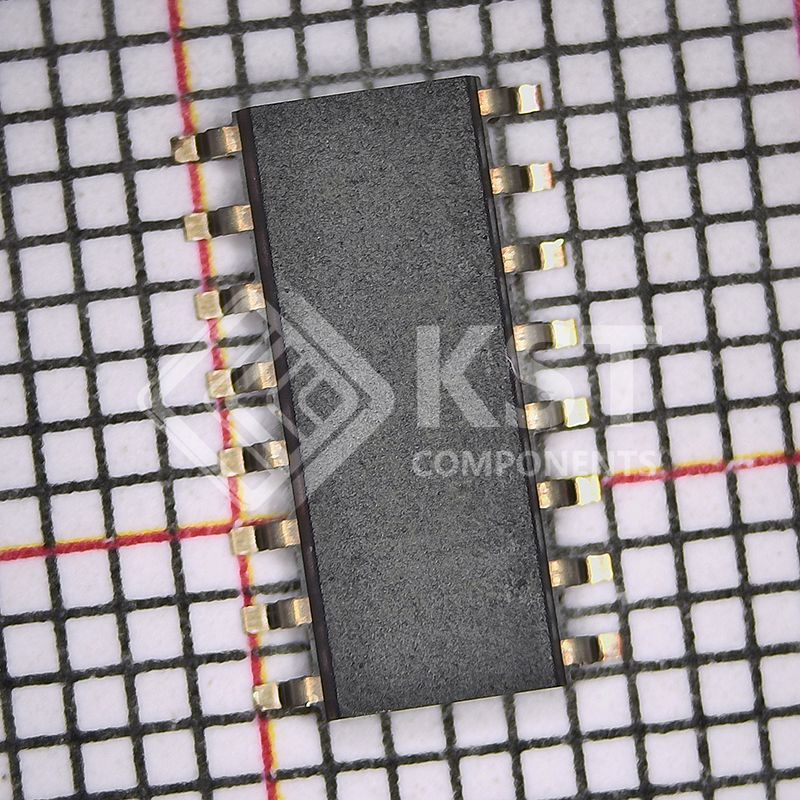

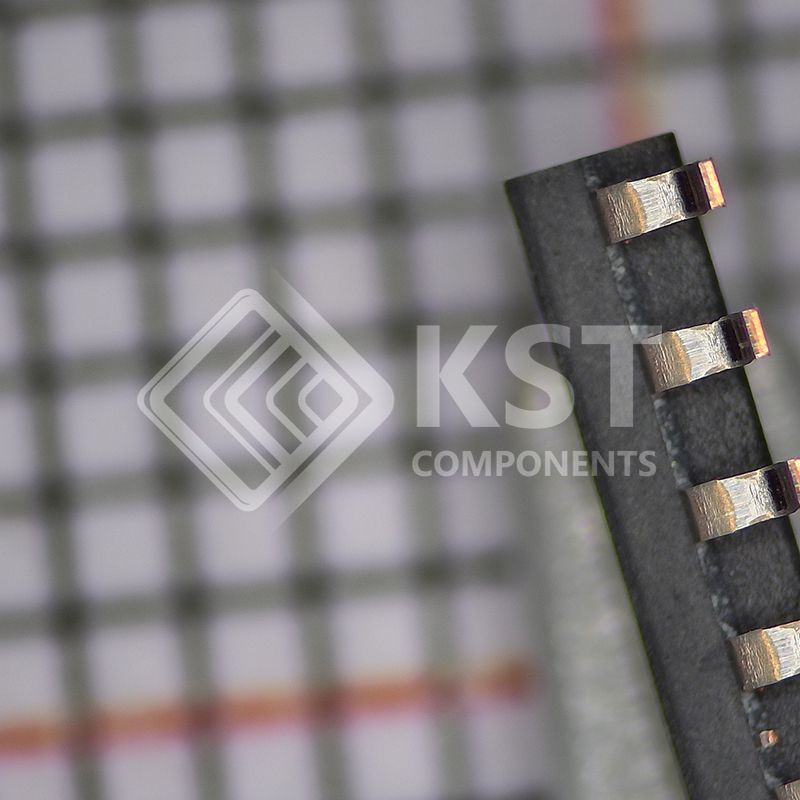

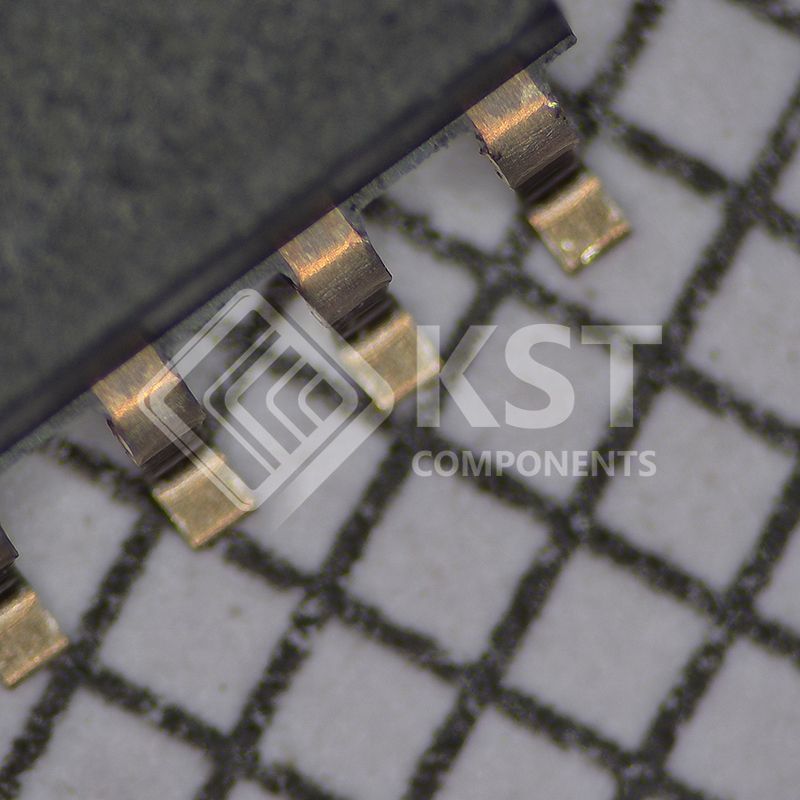

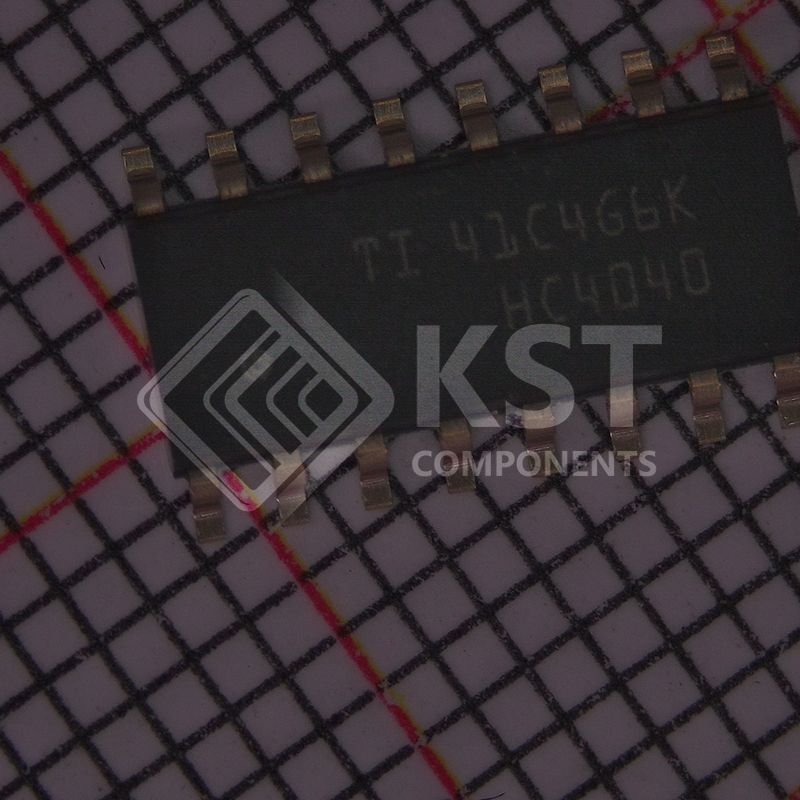

SN74HC4040DR
Part Number:
SN74HC4040DR
Product Classification:
Electrical, Specialty Fuses
Manufacturer:
3PEAK
Description:
IC BINARY COUNTER 12-BIT 16SO
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Integrated Circuits (ICs)
Logic
Counters, Dividers
|
|
|
Manufacturer |
Texas Instruments
|
|
|
Series |
74HC |
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Logic Type |
Binary Counter
|
|
|
Direction |
Up
|
|
|
Number of Elements |
1
|
|
|
Number of Bits per Element |
12
|
|
|
Reset |
Asynchronous
|
|
|
Timing |
Asynchronous
|
|
|
Count Rate |
33 MHz
|
|
|
Trigger Type |
Negative Edge
|
|
|
Voltage - Supply |
2 V ~ 6 V
|
|
|
Operating Temperature |
-40°C ~ 85°C
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |
16-SOIC (0.209", 5.30mm Width)
|
|
|
Supplier Device Package |
16-SO
|
|
|
Base Product Number |
74HC4040 |
