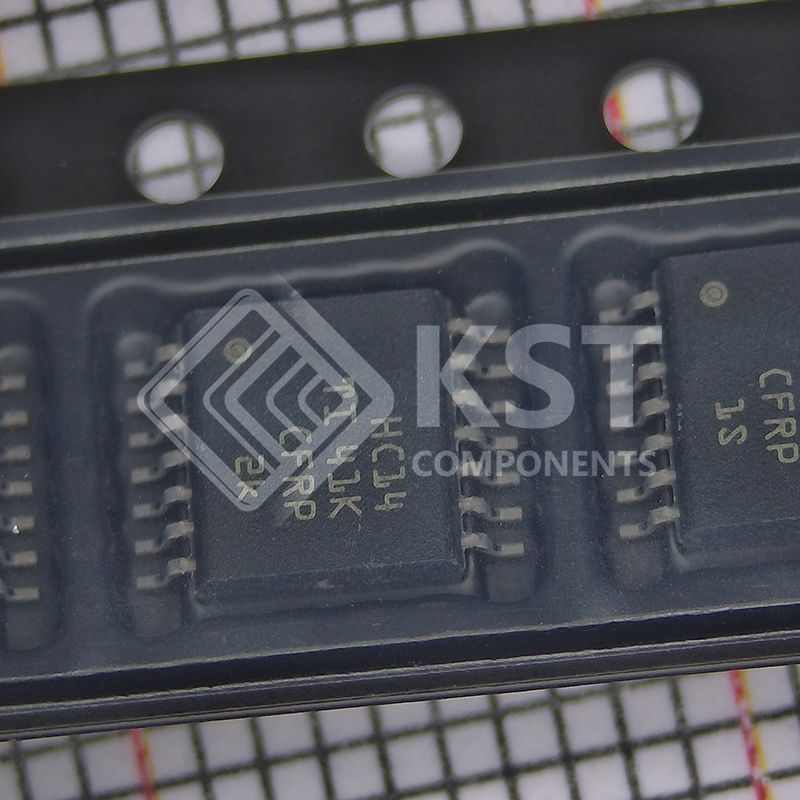

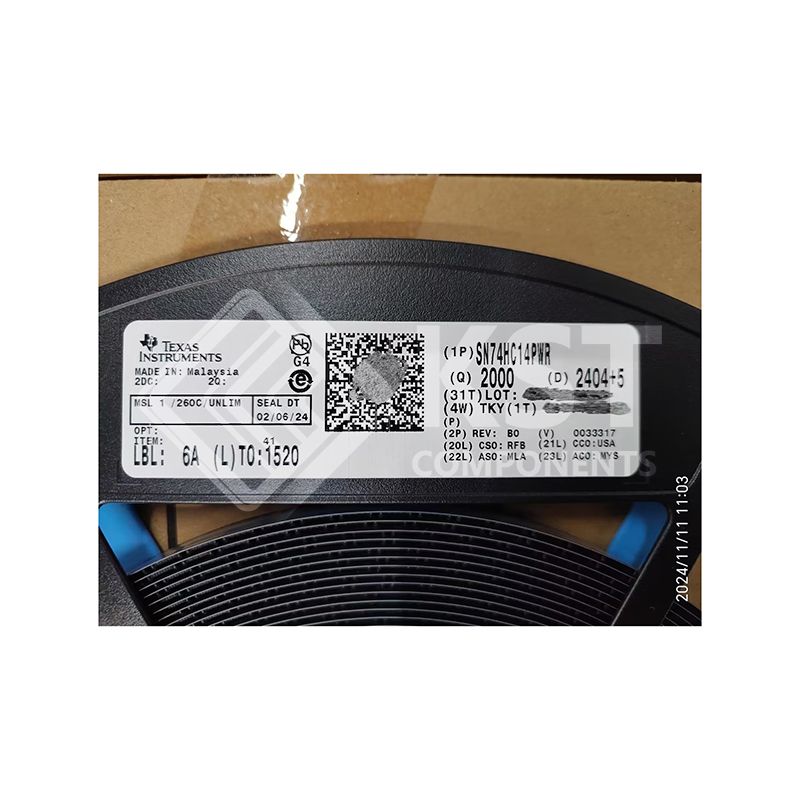

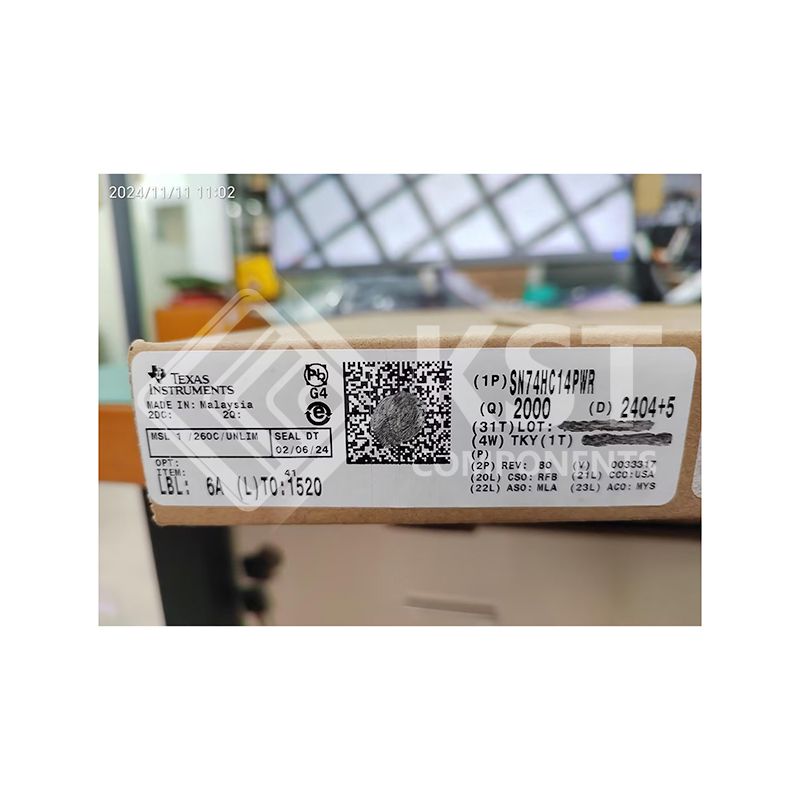

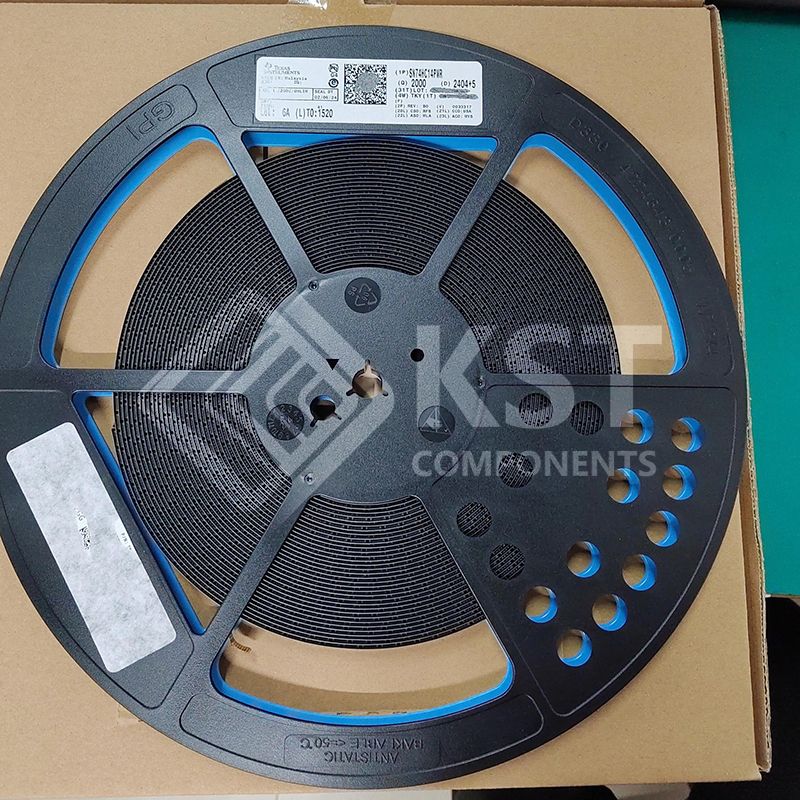

SN74HC14PWR
Part Number:
SN74HC14PWR
Product Classification:
Accessories - Boots, Seals
Manufacturer:
3PEAK
Description:
IC INVERTER 6CH 1-INP 14TSSOP
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Integrated Circuits (ICs)
Logic
Gates and Inverters
|
|
|
Mfr |
Texas Instruments |
|
|
Series |
74HC |
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Logic Type |
Inverter |
|
|
Number of Circuits |
6
|
|
|
Number of Inputs |
1
|
|
|
Features |
Schmitt Trigger
|
|
|
Voltage - Supply |
2V ~ 6V
|
|
|
Current - Quiescent (Max) |
2 µA
|
|
|
Current - Output High, Low |
5.2mA, 5.2mA
|
|
|
Input Logic Level - Low |
0.3V ~ 1.2V
|
|
|
Input Logic Level - High |
1.5V ~ 4.2V
|
|
|
Max Propagation Delay @ V, Max CL |
21ns @ 6V, 50pF
|
|
|
Operating Temperature |
-40°C ~ 85°C
|
|
|
Mounting Type |
Surface Mount
|
|
|
Supplier Device Package |
14-TSSOP
|
|
|
Package / Case |
14-TSSOP (0.173", 4.40mm Width)
|
|
|
Base Product Number |
74HC14 |
