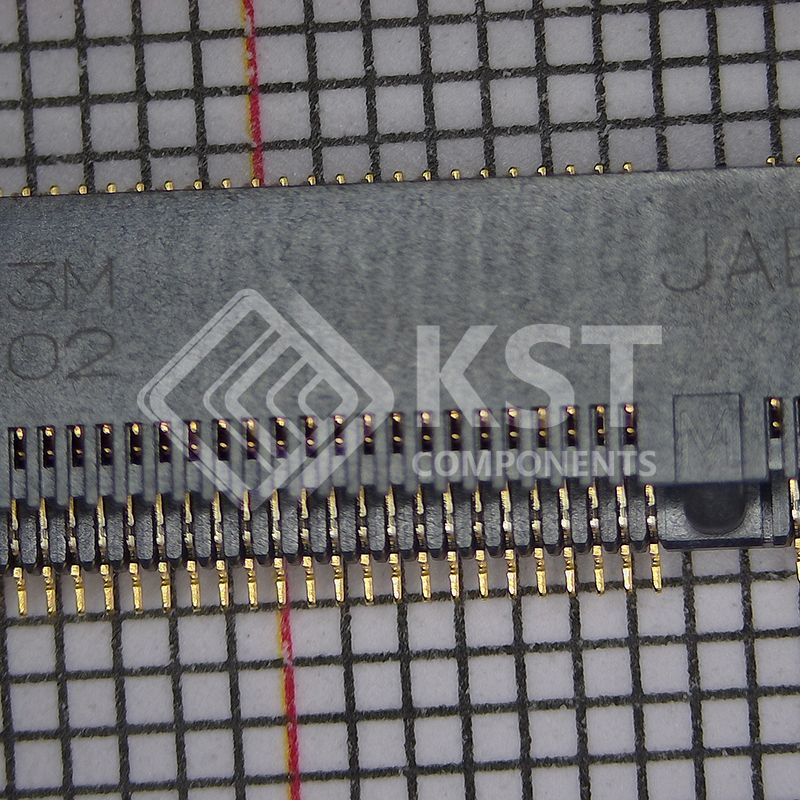

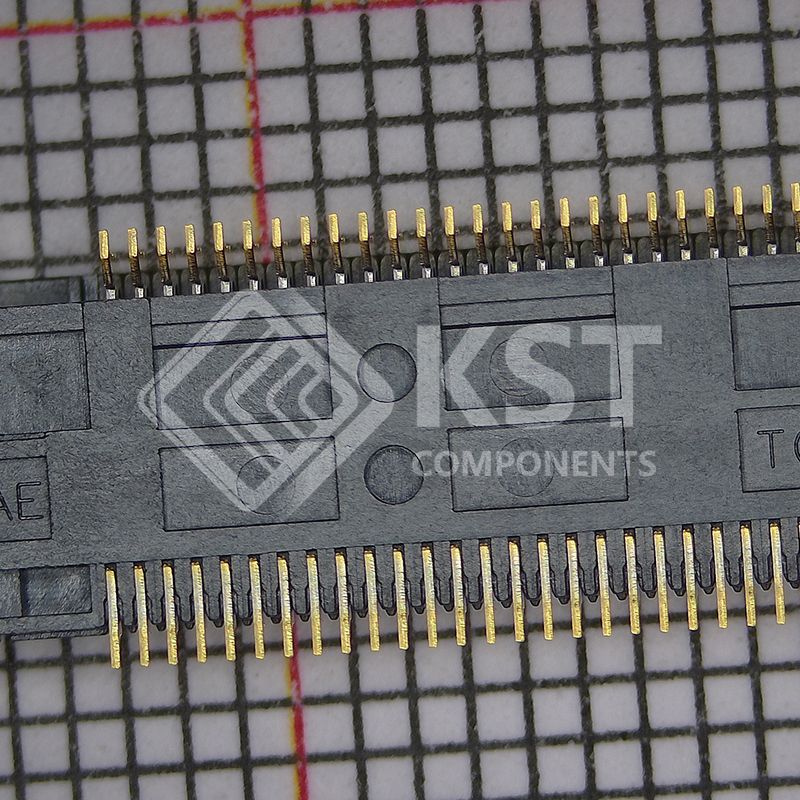

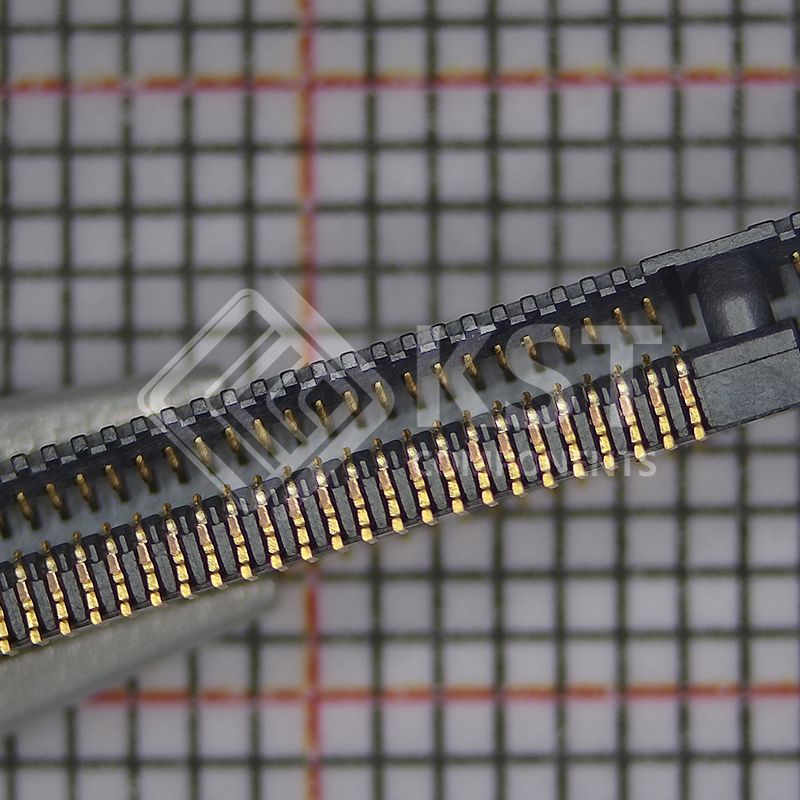

SM3ZS067U310AMR1200
Part Number:
SM3ZS067U310AMR1200
Product Classification:
LED Lighting Kits
Manufacturer:
Amphenol LTW
Description:
CONN M.2 FMALE 67POS 0.020 GOLD
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Connectors, Interconnects
Card Edge Connectors
Edgeboard Connectors
|
|
|
Manufacturer |
JAE Electronics
|
|
|
Series |
SM3 |
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Card Type |
M.2 (NGFF) Mini Card
|
|
|
Gender |
Female
|
|
|
Number of Positions/Bay/Row |
-
|
|
|
Number of Positions |
67
|
|
|
Card Thickness |
0.031" (0.79mm)
|
|
|
Number of Rows |
2
|
|
|
Pitch |
0.020" (0.50mm)
|
|
|
Read Out |
Dual
|
|
|
Features |
Board Guide
|
|
|
Mounting Type |
Surface Mount, Right Angle
|
|
|
Termination |
Solder
|
|
|
Contact Material |
Copper Alloy
|
|
|
Contact Finish |
Gold
|
|
|
Contact Finish Thickness |
5.11µin (0.130µm)
|
|
|
Contact Type |
-
|
|
|
Color |
-
|
|
|
Flange Feature |
-
|
|
|
Operating Temperature |
-40°C ~ 80°C
|
|
|
Material - Insulation |
Thermoplastic
|
|
|
Base Product Number |
SM3ZS067 |
