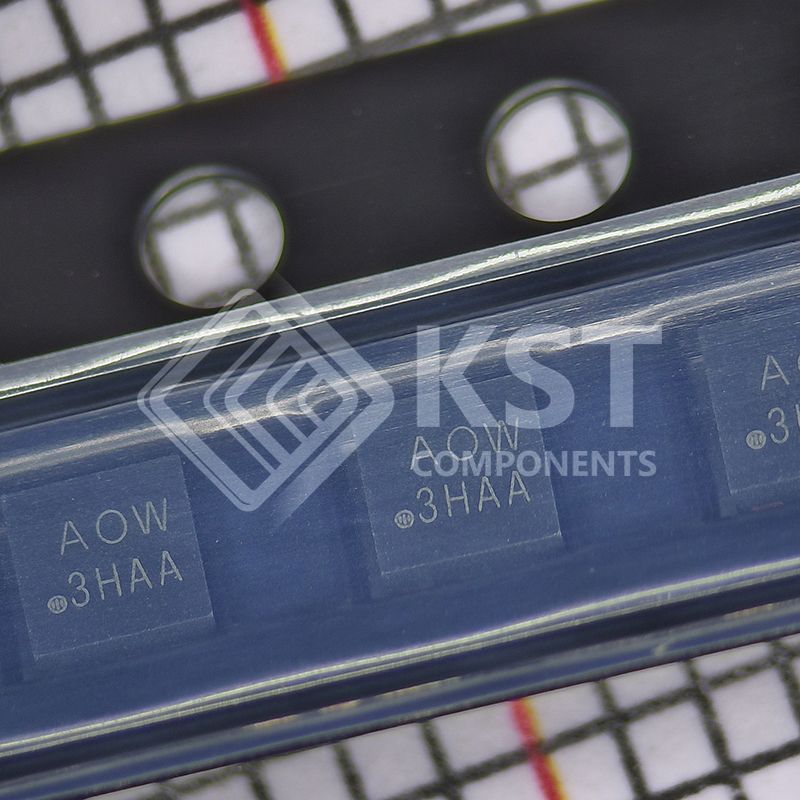

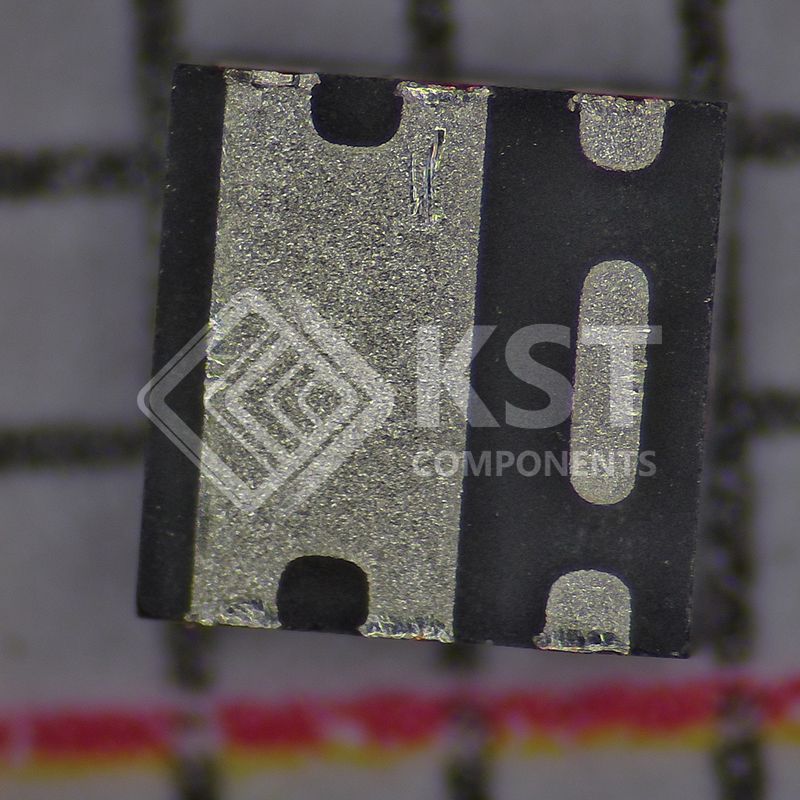

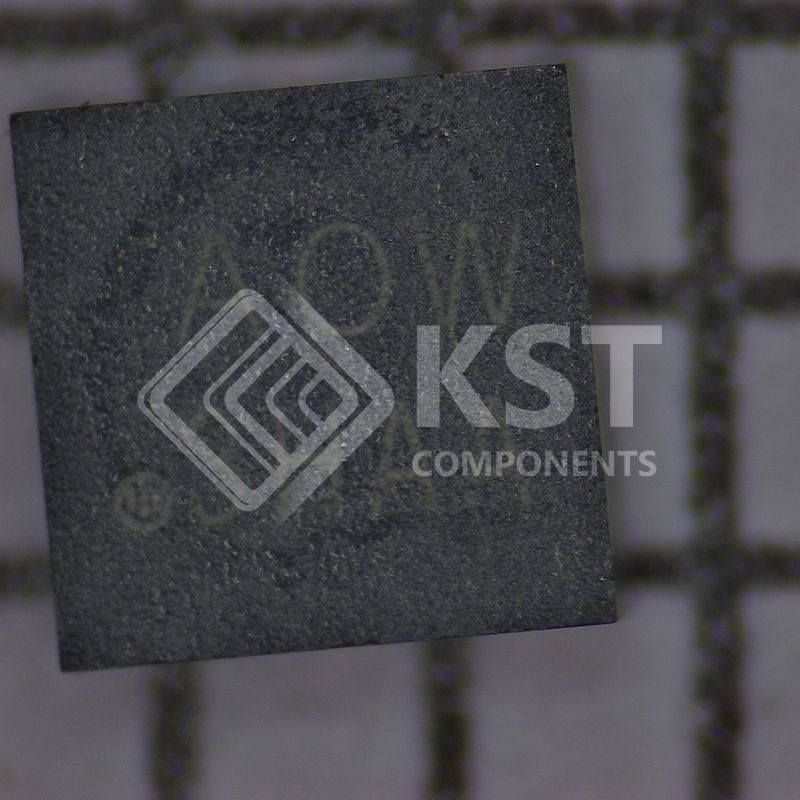

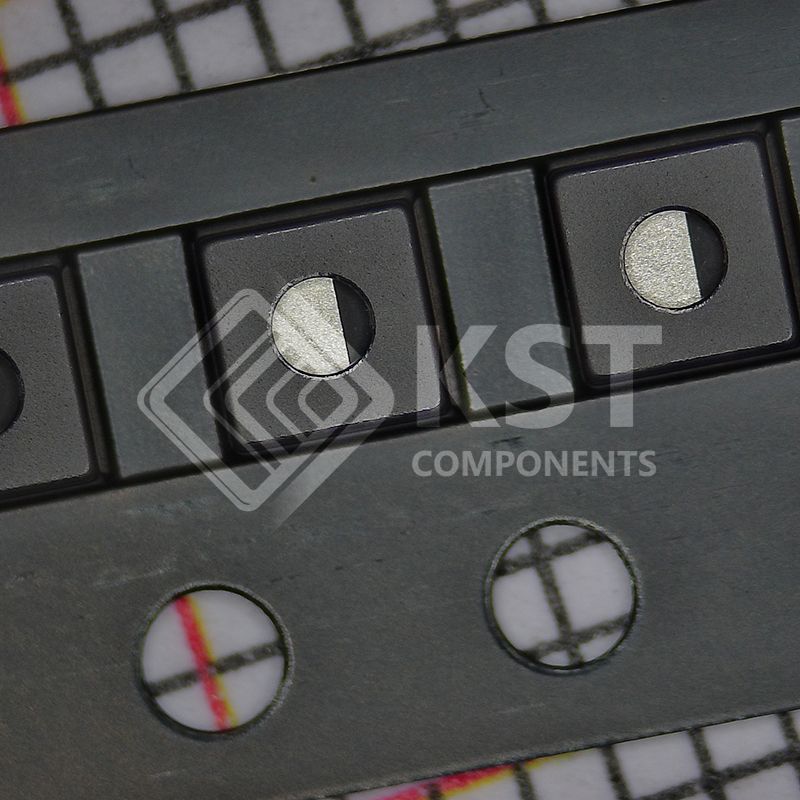

SiA436DJ-T1-GE3
Part Number:
SiA436DJ-T1-GE3
Product Classification:
Solid State Relays (SSR)
Manufacturer:
2J Antennas
Description:
MOSFET N-CH 8V 12A PPAK SC70-6
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Discrete Semiconductor Products
Transistors
FETs, MOSFETs
Single FETs, MOSFETs
|
|
|
Mfr |
Vishay Siliconix |
|
|
Series |
TrenchFET® |
|
|

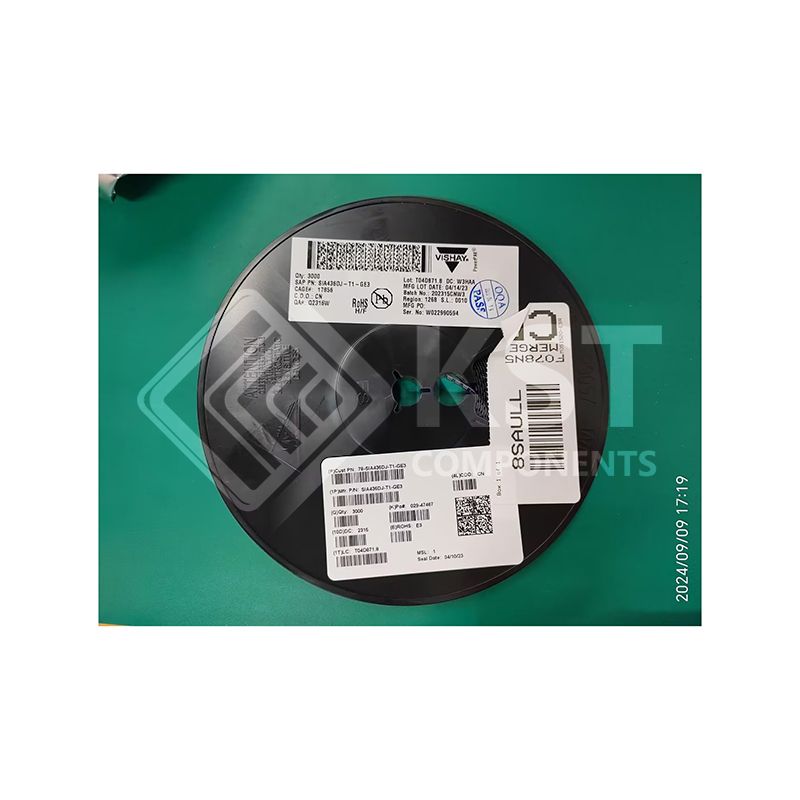

Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
FET Type |
N-Channel |
|
|
Technology |
MOSFET (Metal Oxide) |
|
|
Drain to Source Voltage (Vdss) |
8 V
|
|
|
Current - Continuous Drain (Id) @ 25°C |
12A (Tc) |
|
|
Drive Voltage (Max Rds On, Min Rds On) |
1.2V, 4.5V
|
|
|
Rds On (Max) @ Id, Vgs |
9.4mOhm @ 15.7A, 4.5V
|
|
|
Vgs(th) (Max) @ Id |
800mV @ 250µA
|
|
|
Gate Charge (Qg) (Max) @ Vgs |
25.2 nC @ 5 V
|
|
|
Vgs (Max) |
±5V
|
|
|
Input Capacitance (Ciss) (Max) @ Vds |
1508 pF @ 4 V
|
|
|
FET Feature |
-
|
|
|
Power Dissipation (Max) |
3.5W (Ta), 19W (Tc)
|
|
|
Operating Temperature |
-55°C ~ 150°C (TJ)
|
|
|
Mounting Type |
Surface Mount
|
|
|
Supplier Device Package |
PowerPAK® SC-70-6
|
|
|
Package / Case |
PowerPAK® SC-70-6 |
|
|
Base Product Number |
SIA436 |
