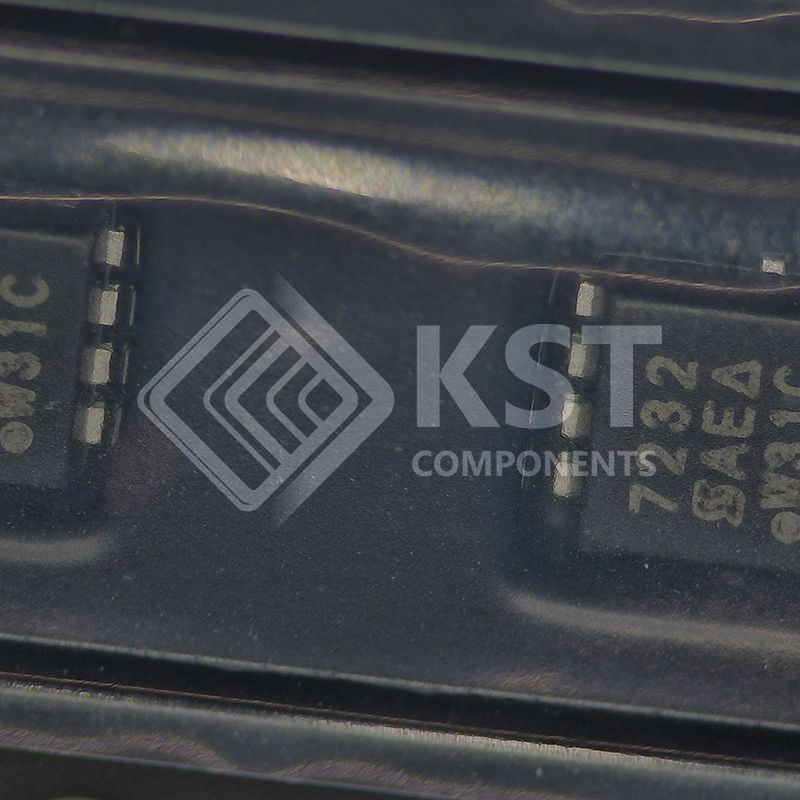

SI7232DN-T1-GE3
Part Number:
SI7232DN-T1-GE3
Product Classification:
Solid State Relays (SSR)
Manufacturer:
2J Antennas
Description:
MOSFET 2N-CH 20V 25A PPAK 1212
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Discrete Semiconductor Products
Transistors
FETs, MOSFETs
FET, MOSFET Arrays
|
|
|
Manufacturer |
Vishay Siliconix
|
|
|
Series |
TrenchFET® |
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Technology |
MOSFET (Metal Oxide)
|
|
|
Configuration |
2 N-Channel (Dual)
|
|
|
FET Feature |
Logic Level Gate
|
|
|
Drain to Source Voltage (Vdss) |
20V
|
|
|
Current - Continuous Drain (Id) @ 25°C |
25A
|
|
|
Rds On (Max) @ Id, Vgs |
16.4mOhm @ 10A, 4.5V
|
|
|
Vgs(th) (Max) @ Id |
1V @ 250µA
|
|
|
Gate Charge (Qg) (Max) @ Vgs |
32nC @ 8V
|
|
|
Input Capacitance (Ciss) (Max) @ Vds |
1220pF @ 10V
|
|
|
Power - Max |
23W
|
|
|
Operating Temperature |
-55°C ~ 150°C (TJ)
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |
PowerPAK® 1212-8 Dual
|
|
|
Supplier Device Package |
PowerPAK® 1212-8 Dual
|
|
|
Base Product Number |
SI7232 |
