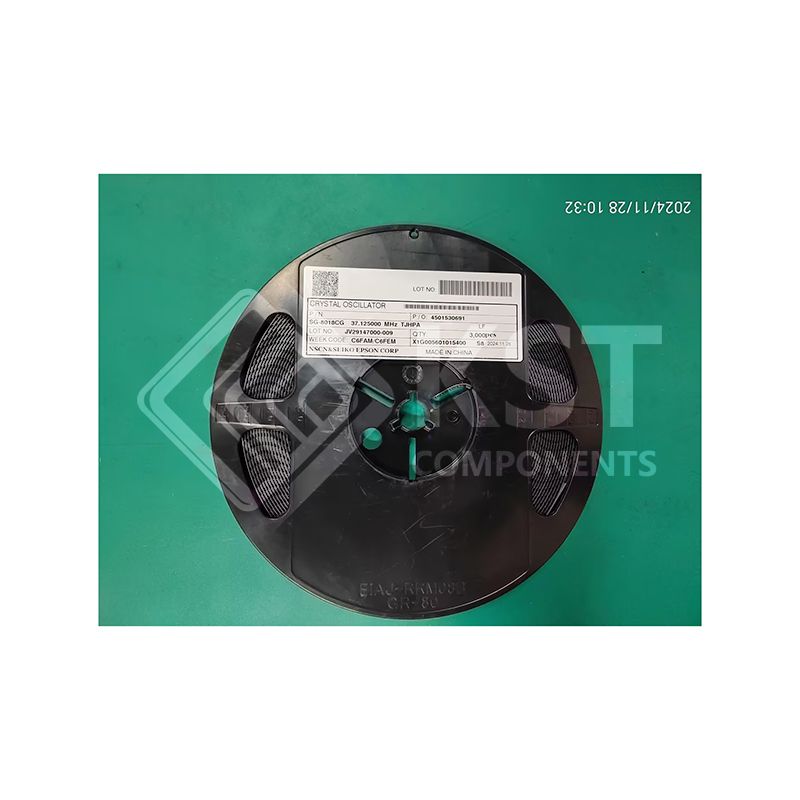

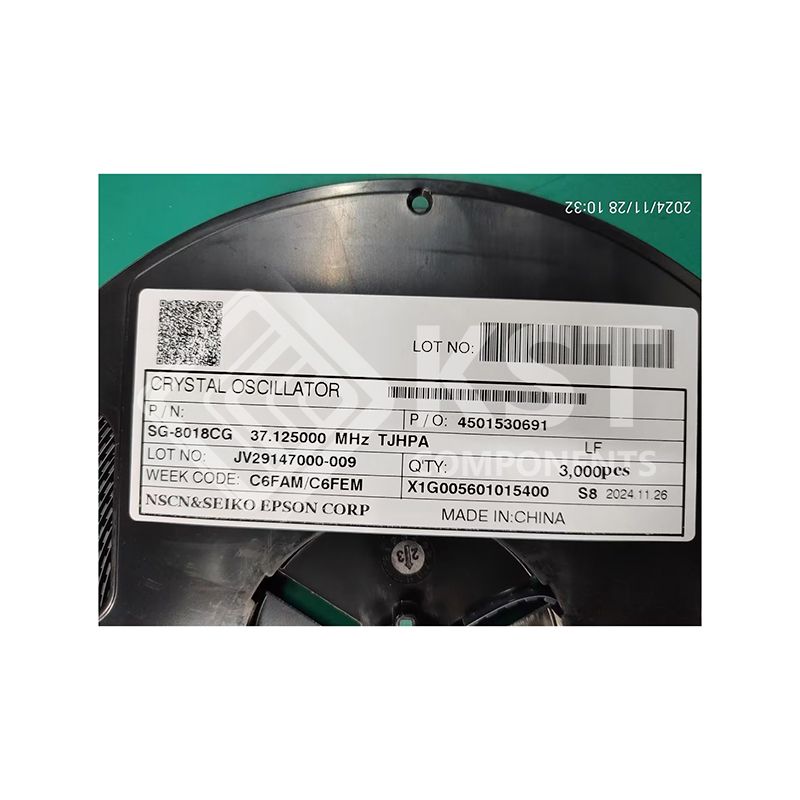

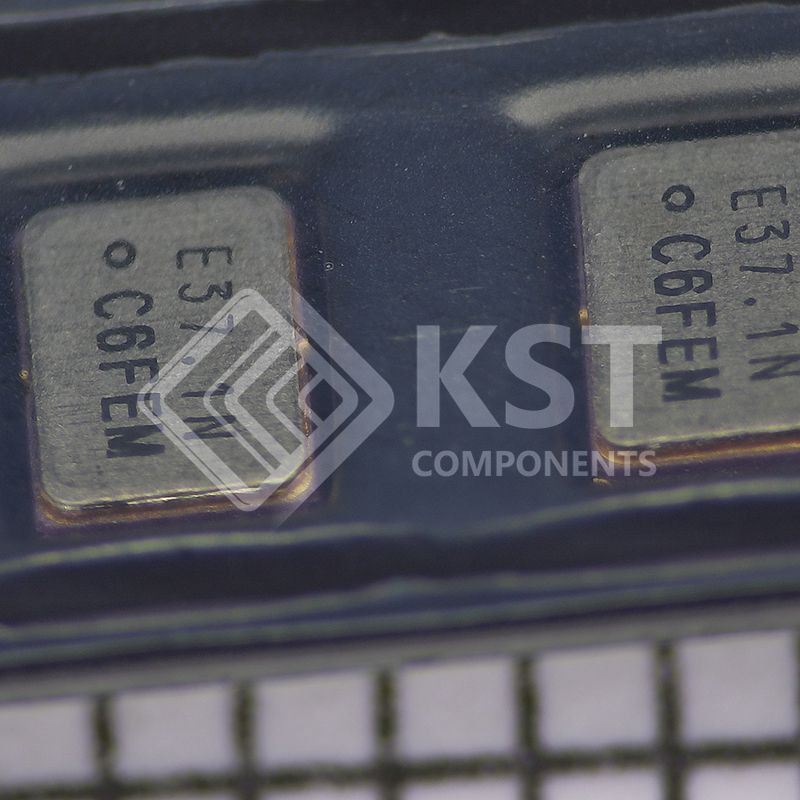

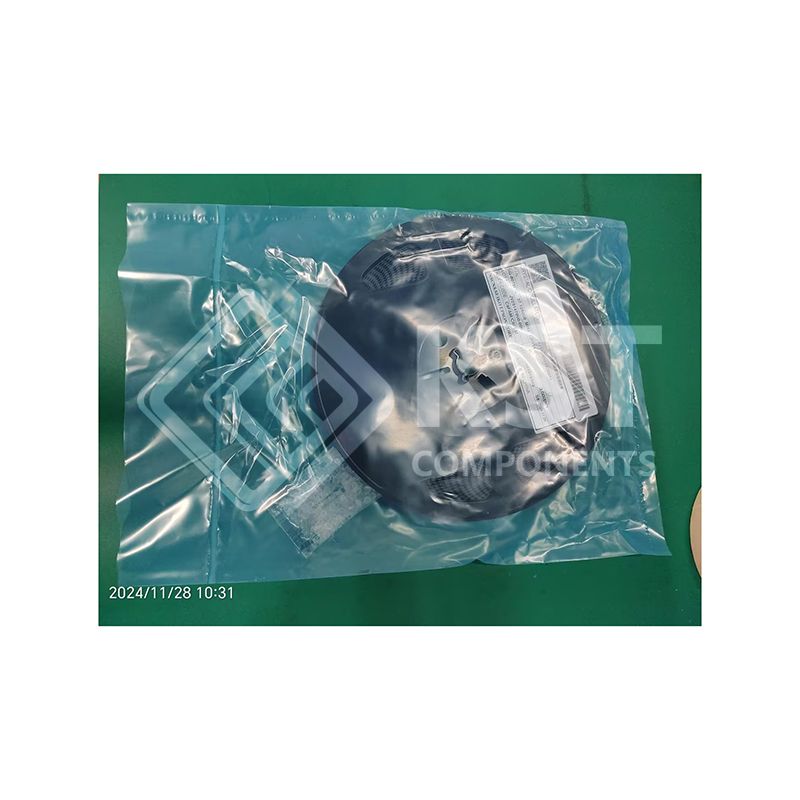

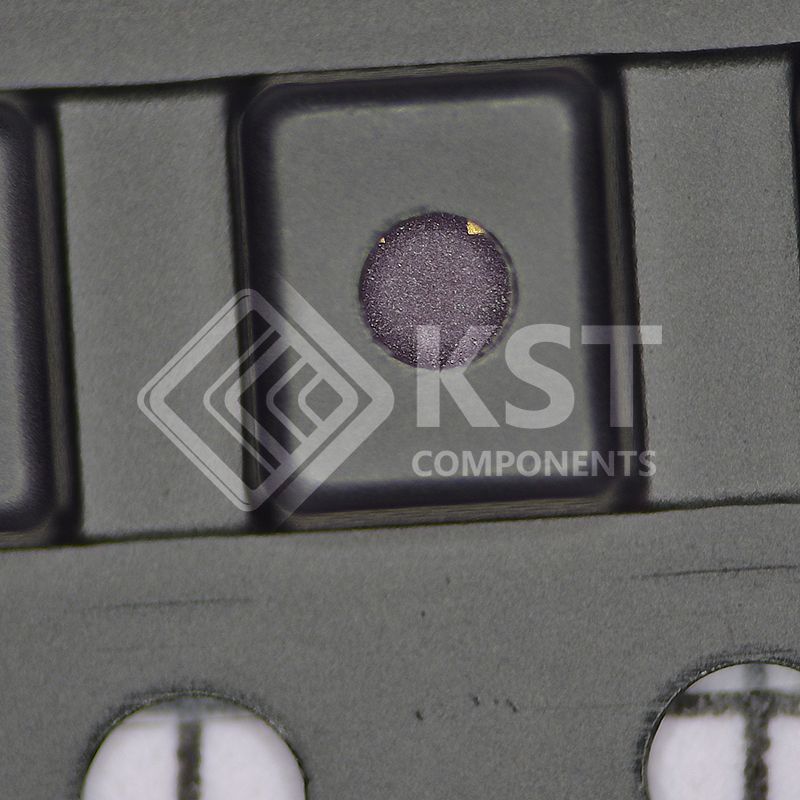

SG-8018CG 37.1250M-TJHPA0
Part Number:
SG-8018CG 37.1250M-TJHPA0
Product Classification:
AC DC Configurable Power Supply Modules
Manufacturer:
Amphenol PCB Piezotronics
Description:
XTAL OSC XO 37.1250MHZ CMOS SMD
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Crystals, Oscillators, Resonators
Oscillators
|
|
|
Mfr |
EPSON |
|
|
Series |
SG-8018 |
|
|
Packaging |
Tape & Reel (TR)
|
|
|
Part Status |
Active
|
|
|
Base Resonator |
Crystal |
|
|
Type |
XO (Standard) |
|
|
Frequency |
37.125 MHz
|
|
|
Function |
Enable/Disable
|
|
|
Output |
CMOS
|
|
|
Voltage - Supply |
1.62V ~ 3.63V
|
|
|
Frequency Stability |
±50ppm
|
|
|
Absolute Pull Range (APR) |
-
|
|
|
Operating Temperature |
-40°C ~ 105°C
|
|
|
Spread Spectrum Bandwidth |
-
|
|
|
Current - Supply (Max) |
8.1mA
|
|
|
Ratings |
-
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |
4-SMD, No Lead
|
|
|
Supplier Device Package |
4-VDFN (3.2x2.5)
|
|
|
Size / Dimension |
0.098" L x 0.079" W (2.50mm x 2.00mm)
|
|
|
Height - Seated (Max) |
0.031" (0.80mm)
|
|
|
Current - Supply (Disable) (Max) |
3.5mA
|
