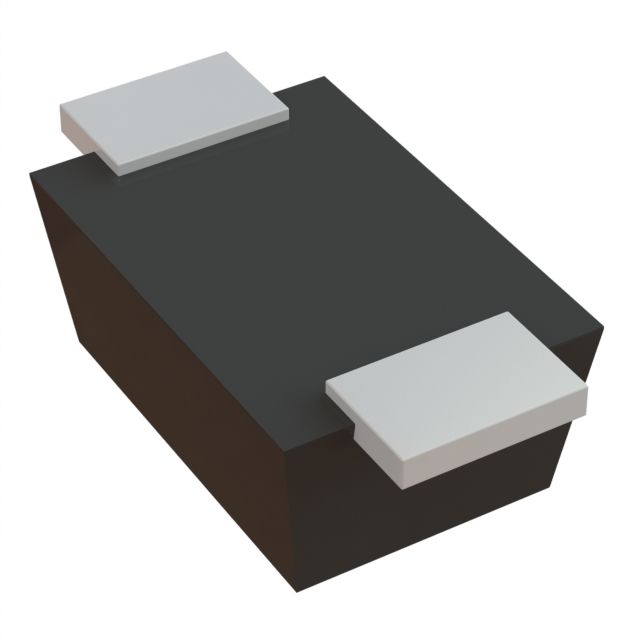

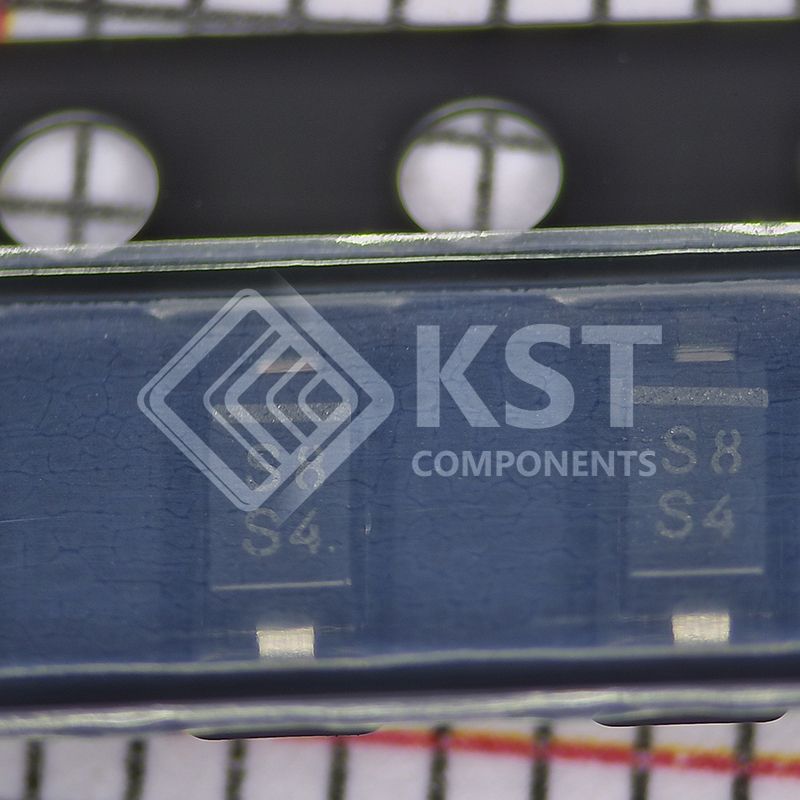

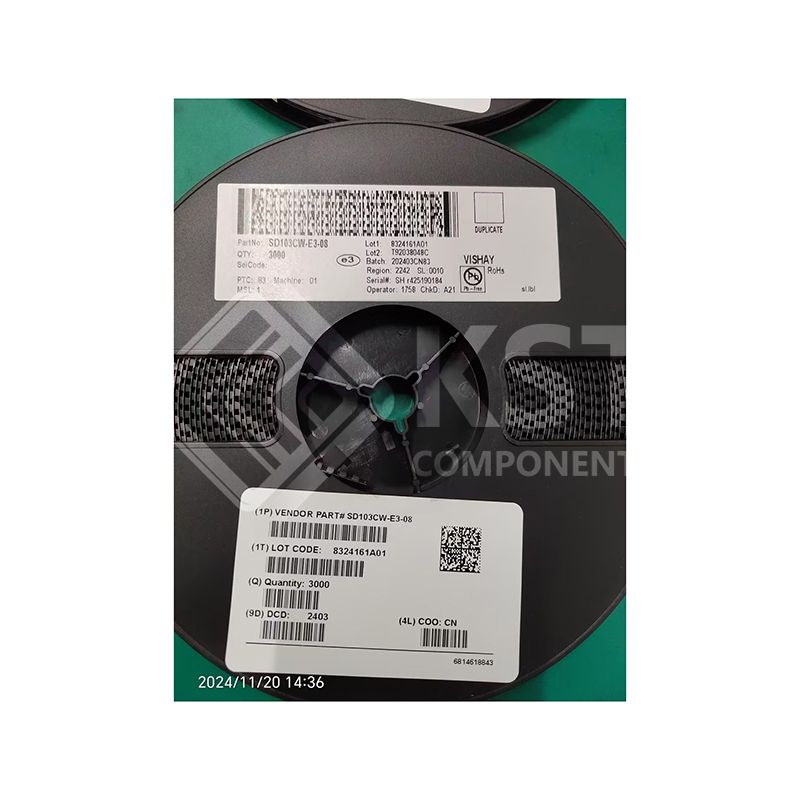

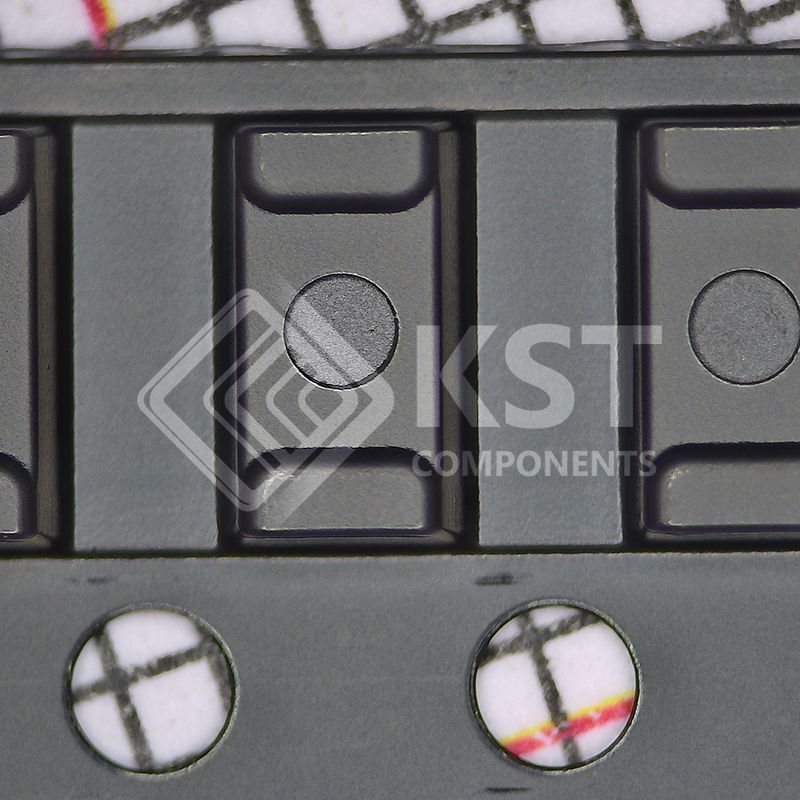

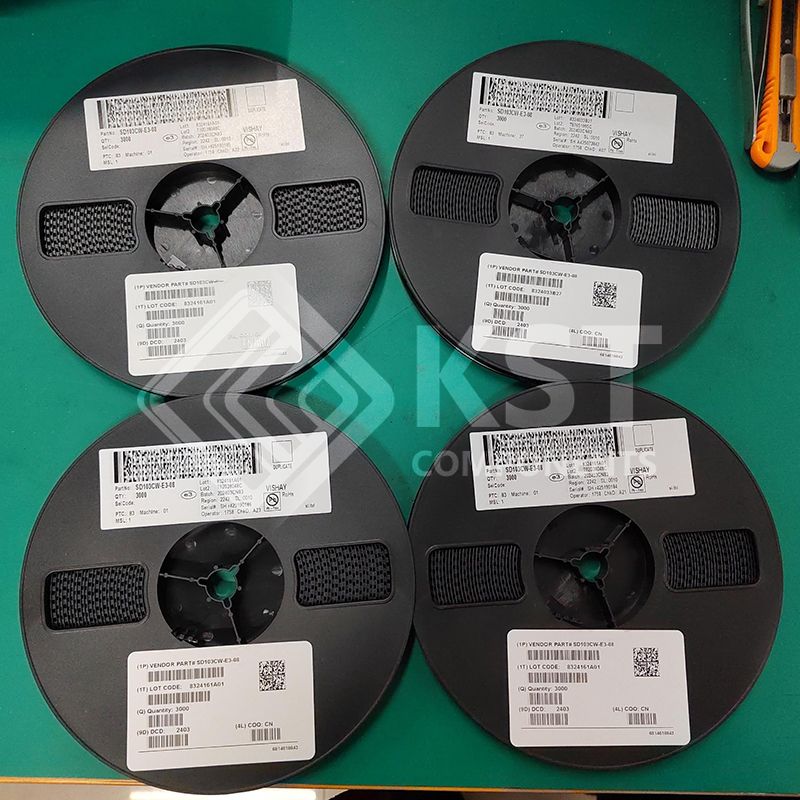

SD103CW-E3-08
Part Number:
SD103CW-E3-08
Product Classification:
Toggle Switches
Manufacturer:
Aker Technology USA
Description:
DIODE SCHOTTKY 20V SOD123
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Discrete Semiconductor Products
Diodes
Rectifiers
Single Diodes
|
|
|
Mfr |
Vishay General Semiconductor - Diodes Division |
|
|
Series |
-
|
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Technology |
Schottky |
|
|
Voltage - DC Reverse (Vr) (Max) |
20 V
|
|
|
Current - Average Rectified (Io) |
-
|
|
|
Voltage - Forward (Vf) (Max) @ If |
600 mV @ 200 mA
|
|
|
Speed |
Fast Recovery =< 500ns, > 200mA (Io)
|
|
|
Reverse Recovery Time (trr) |
10 ns
|
|
|
Current - Reverse Leakage @ Vr |
5 µA @ 10 V
|
|
|
Capacitance @ Vr, F |
50pF @ 0V, 1MHz
|
|
|
Mounting Type |
Surface Mount |
|
|
Package / Case |
SOD-123 |
|
|
Supplier Device Package |
SOD-123
|
|
|
Operating Temperature - Junction |
125°C (Max)
|
|
|
Base Product Number |
SD103 |
