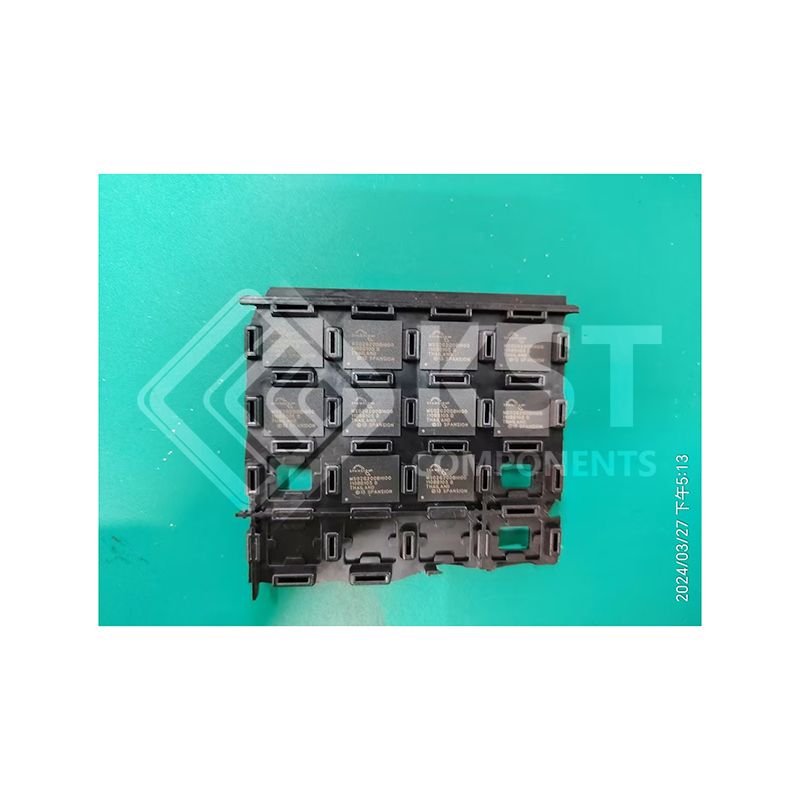

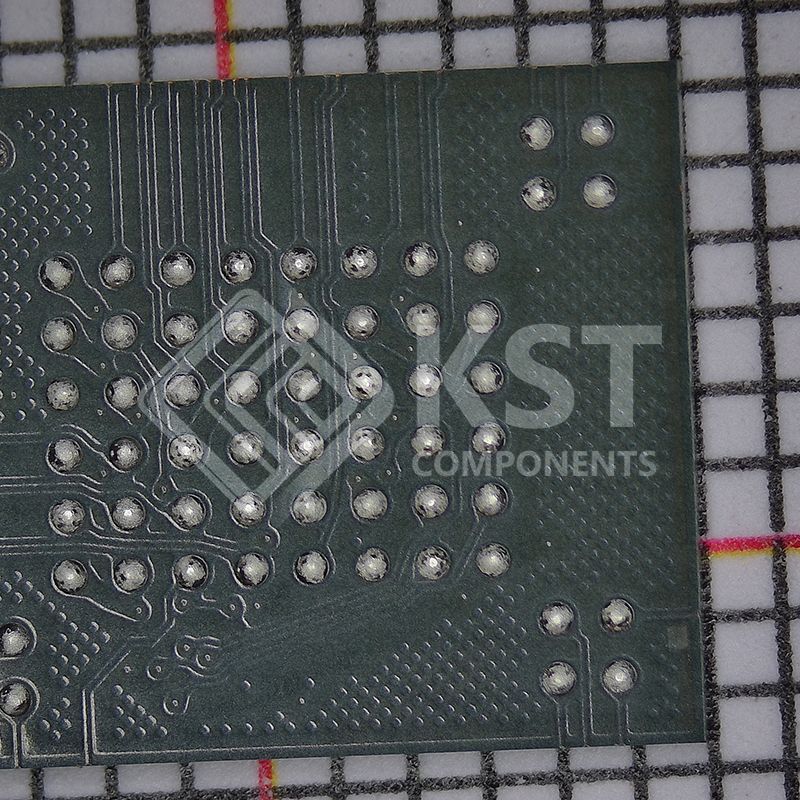

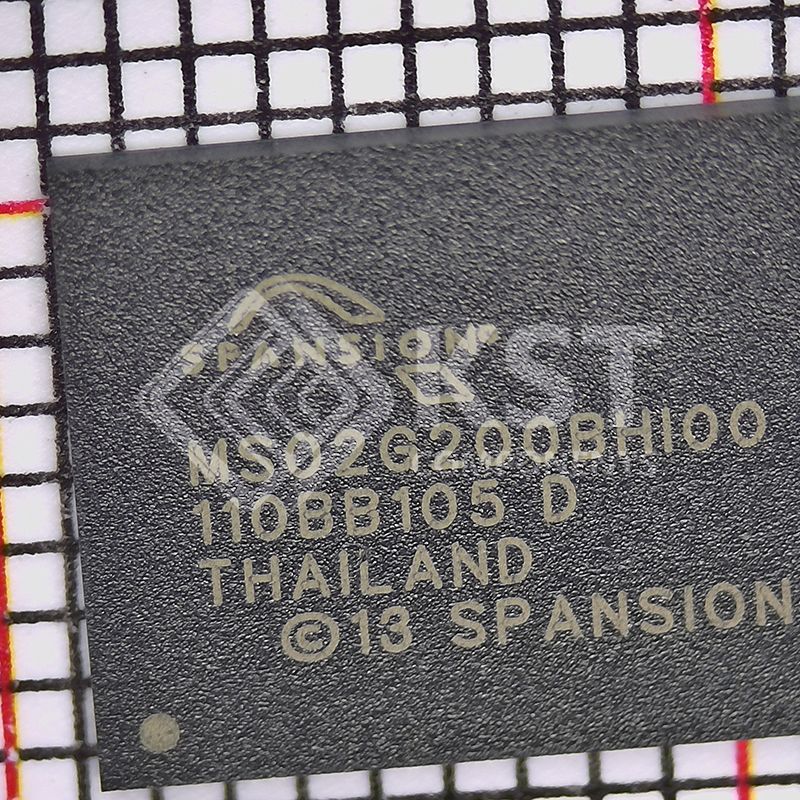

S34MS02G200BHI000

 Density
❐ 1 Gb / 2 Gb / 4 Gb
 Architecture
❐ Input / Output Bus Width: 8 bits / 16 bits
❐ Page size:
• x8
1 Gb: (2048 + 64) bytes; 64-byte spare area
2 Gb / 4 Gb: (2048 + 128) bytes; 128-byte spare area
• x16
1 Gb: (1024 + 32) words; 32-word spare area
2 Gb / 4Gb: (1024 + 64) words; 64-word spare area
❐ Block size: 64 Pages
• x8
1 Gb: 128 KB + 4 KB
2 Gb / 4 Gb: 128 KB + 8 KB
• x16
1 Gb: (64k + 2k) words
2 Gb / 4 Gb: (64k + 4k) words
❐ Plane size:
• x8
1 Gb: 1024 Blocks per Plane or (128 MB + 4 MB)
2 Gb: 1024 Blocks per Plane or (128 MB + 8 MB)
4 Gb: 2048 Blocks per Plane or (256 MB + 16 MB)
• x16
1 Gb: 1024 Blocks per Plane or (64M + 2M) words
2 Gb: 1024 blocks per plane or (64M + 4M) words
4 Gb: 2048 blocks per plane or (128M + 8M) words
❐ Device size:
• 1 Gb: 1 plane per device or 128 MB
• 2 Gb: 2 planes per device or 256 MB
• 4 Gb: 2 planes per device or 512 MB
 NAND flash interface
❐ Open NAND Flash Interface (ONFI) 1.0 compliant
❐ Address, Data, and Commands multiplexed
 Supply voltage
❐ 1.8 V device: VCC = 1.7 V ~ 1.95 V
 Security
❐ One Time Programmable (OTP) area
❐ Serial number (unique ID) (Contact factory for support)
❐ Hardware program/erase disabled during power transition
 Additional features
❐ 2 Gb and 4 Gb parts support Multiplane Program and Erase
commands
❐ Supports Copy Back Program
❐ 2 Gb and 4 Gb parts support Multiplane Copy Back Program
❐ Supports Read Cache
 Electronic signature
❐ Manufacturer ID: 01h
 Operating temperature
❐ Industrial: 40 °C to 85 °C
❐ Industrial Plus: 40 °C to 105 °C
