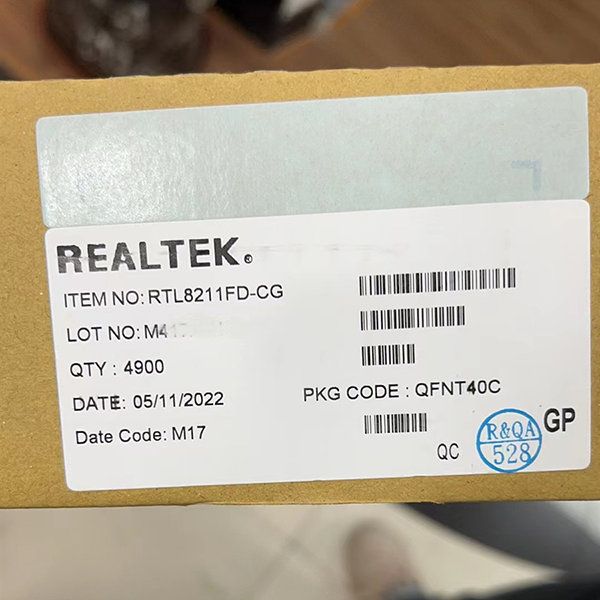

RTL8211FD-CG

Features

● 1000Base-T IEEE 802.3ab compatible ● 100Base-TX IEEE 802.3u compatible ● 10Base-T IEEE 802.3 compatible ● Supports RGMII ● Supports IEEE 802.3az-2010 (Energy Efficient Ethernet) ● Built-in Wake-on-LAN (WOL) ● Supports Interrupt function ● Supports Parallel Detection ● Crossover Detection & Auto-Correction ● Automatic polarity correction ● Supports PHYRSTB core power Turn-Off ● Baseline Wander Correction ● Supports 120m for CAT.5 cable in 1000Base-T ● Selectable 3.3/2.5/1.8/1.5V signaling for RGMII ● Supports 25MHz external crystal or OSC ● Provides 125MHz clock source for MAC ● Provides 3 network status LEDs ● Supports Link Down power saving ● Green Ethernet (1000/100Mbps mode only) ● Built-in Switching LDO ● 40-pin QFN Green package ● 55 nm process with ultra-low power consumption ● Industrial grade manufacturing process (RTL8211FDI-CG)

Applications

● DTV (Digital TV) ● MAU (Media Access Unit) ● CNR (Communication and Network Riser) ● Game Console ● Printer and Office Machine ● DVD Player and Recorder ● Ethernet Hub ● Ethernet Switch
