QA03
Part Number:
QA03
Product Classification:
Programmable Display Switches
Manufacturer:
Axiomatic Technologies
Description:
DC DC CONVERTER FOR IGBT DRIVER,
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Power Supplies - Board Mount
DC DC Converters
|
|
|
Manufacturer |
Mornsun America, LLC
|
|
|
Series |
QA |
|
|

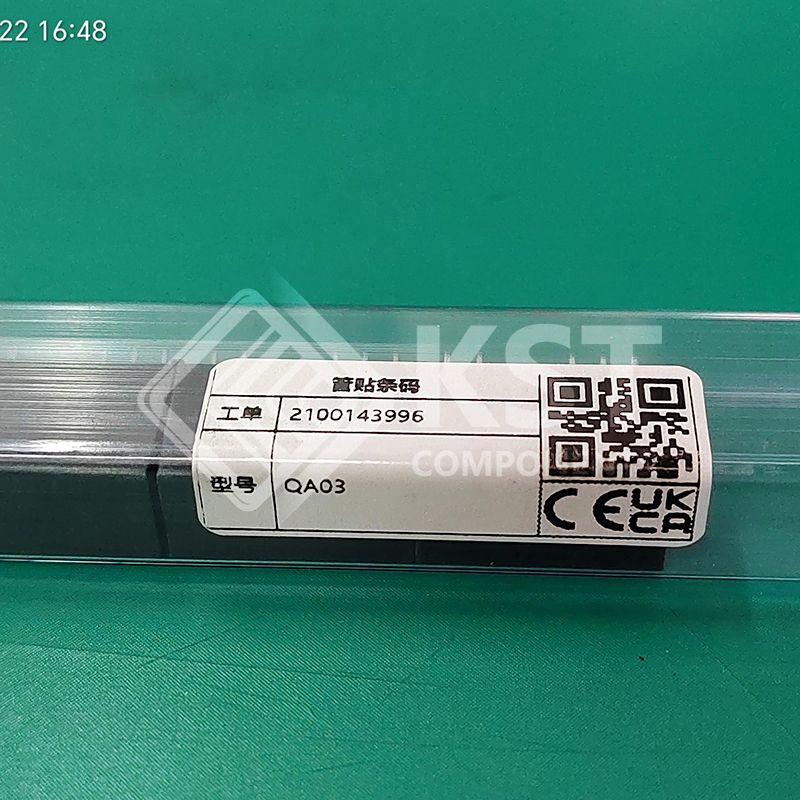

Packaging |
Tube
|
|
|
Part Status |
Not For New Designs
|
|
|
Type |
Isolated Module
|
|
|
Number of Outputs |
2
|
|
|
Voltage - Input (Min) |
23.3V
|
|
|
Voltage - Input (Max) |
24.7V
|
|
|
Voltage - Output 1 |
15V |
|
|
Voltage - Output 2 |
-8.7V
|
|
|
Voltage - Output 3 |
-
|
|
|
Voltage - Output 4 |
-
|
|
|
Current - Output (Max) |
80mA, 40mA
|
|
|
Voltage - Isolation |
3 kV
|
|
|
Applications |
ITE (Commercial)
|
|
|
Features |
-
|
|
|
Operating Temperature |
-40°C ~ 105°C (With Derating)
|
|
|
Efficiency |
80%
|
|
|
Mounting Type |
Through Hole
|
|
|
Package / Case |
7-SIP Module, 5 Leads
|
|
|
Size / Dimension |
0.77" L x 0.39" W x 0.49" H (19.5mm x 9.8mm x 12.5mm)
|
|
|
Supplier Device Package |
-
|
|
|
Control Features |
-
|
|
|
Approval Agency |
CB, CE, cURus
|
|
|
Standard Number |
60950-1; 62368-1
|
|
|
Base Product Number |
-
|
