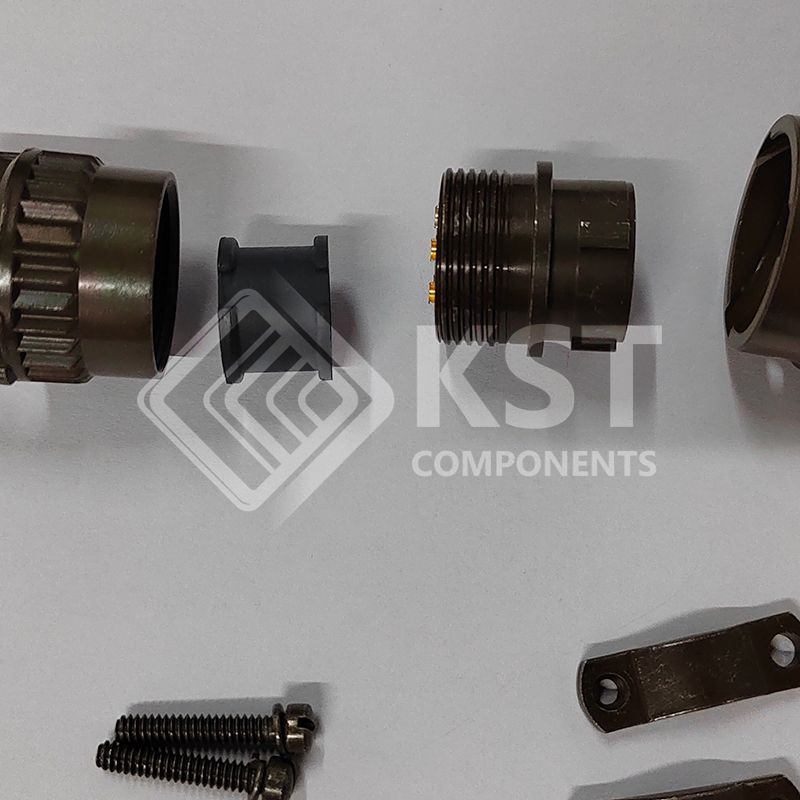

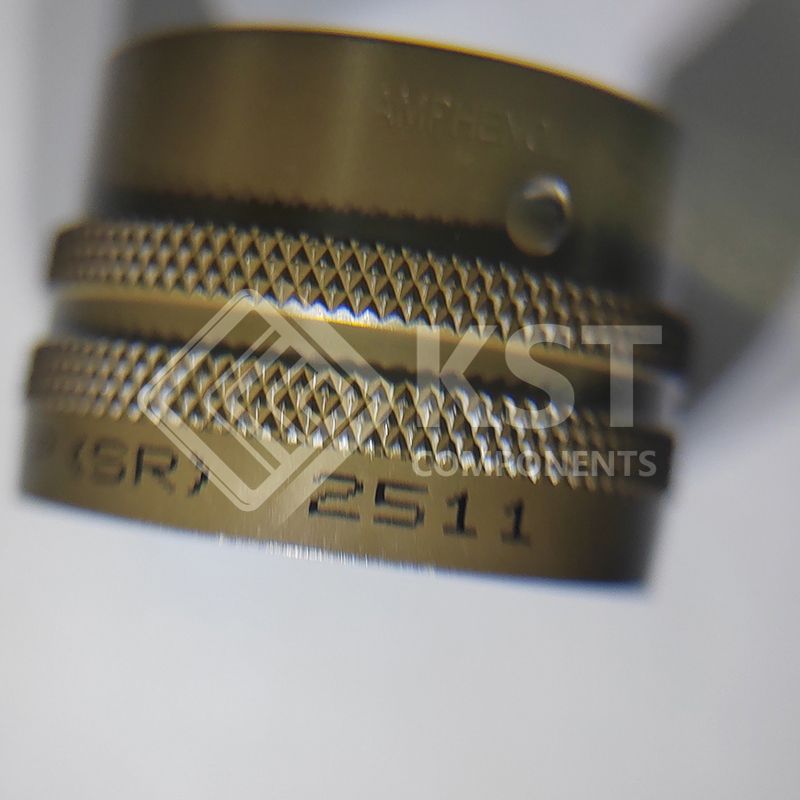

PT06A-14-5P(SR)
Part Number:
PT06A-14-5P(SR)
Product Classification:
Fan Accessories
Manufacturer:
TT Electronics / BI Technologies
Description:
CONN PLUG MALE 5P GOLD SLDR CUP
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Connectors, Interconnects
Circular Connectors
Circular Connector Assemblies
|
|
|
Mfr |
Amphenol Industrial Operations |
|
|
Series |
PT |
|
|
Packaging |
Bulk
|
|
|
Part Status |
Active
|
|
|
Connector Type |
Plug, Male Pins |
|
|
Number of Positions |
5
|
|
|
Grade |
-
|
|
|
Qualification |
MIL-DTL-26482 Series I
|
|
|
Shell Size - Insert |
14-5
|
|
|
Shell Size, MIL |
-
|
|
|
Mounting Type |
Free Hanging (In-Line)
|
|
|
Mounting Feature |
-
|
|
|
Termination |
Solder Cup
|
|
|
Fastening Type |
Bayonet Lock
|
|
|
Orientation |
N (Normal)
|
|
|
Primary Material |
Metal
|
|
|
Shell Material |
Aluminum
|
|
|
Shell Finish |
Olive Drab Chromate over Cadmium
|
|
|
Contact Finish - Mating |
Gold
|
|
|
Color |
Olive Drab
|
|
|
Ingress Protection |
-
|
|
|
Material Flammability Rating |
-
|
|
|
Features |
Strain Relief
|
|
|
Shielding |
Unshielded |
|
|
Current Rating (Amps) |
-
|
|
|
Voltage Rating |
-
|
|
|
Cable Opening |
-
|
|
|
Operating Temperature |
-55°C ~ 125°C
|
|
|
Backshell Material, Plating |
Aluminum, Olive Drab Cadmium
|
|
|
Contact Material |
Copper Alloy
|
|
|
Contact Finish Thickness - Mating |
-
|
|
|
Insert Material |
Neoprene
|
|
|
Applications |
Aerospace, Industrial, Instrumentation, Mass Transit, Military
|
|
|
Base Product Number |
PT06A |
