PMEG2020AEA
Part Number:
PMEG2020AEA
Product Classification:
Toggle Switches
Manufacturer:
Blue Robotics
Description:
DIODE SCHOTTKY 20V 2A SOD323
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Discrete Semiconductor Products
Diodes
Rectifiers
Single Diodes
|
|
|
Mfr |
Nexperia USA Inc. |
|
|
Series |
-
|
|
|
Packaging |

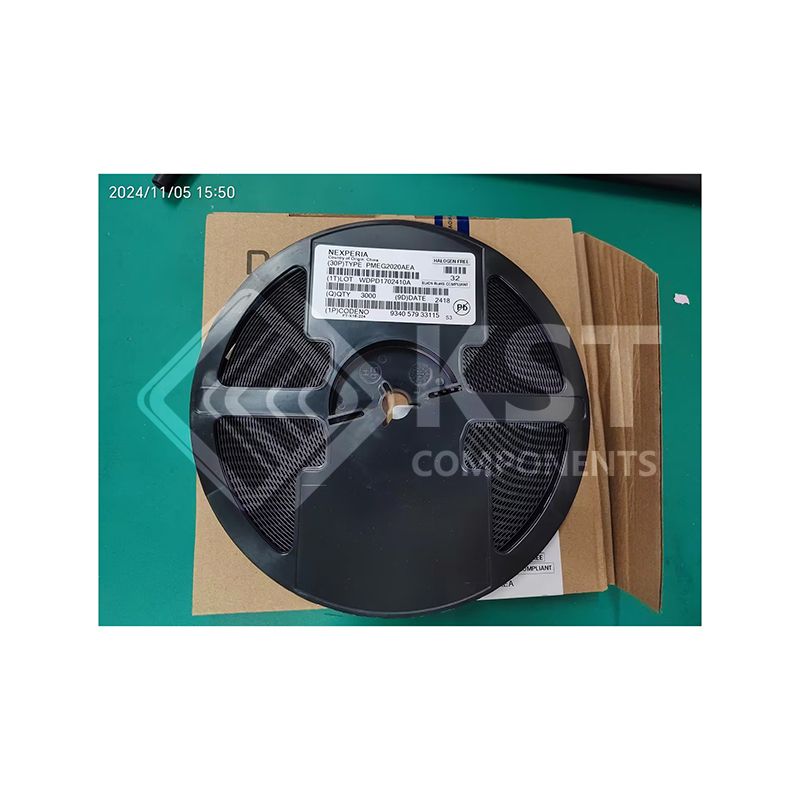

Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Technology |
Schottky |
|
|
Voltage - DC Reverse (Vr) (Max) |
20 V
|
|
|
Current - Average Rectified (Io) |
2A
|
|
|
Voltage - Forward (Vf) (Max) @ If |
525 mV @ 2 A
|
|
|
Speed |
Fast Recovery =< 500ns, > 200mA (Io)
|
|
|
Current - Reverse Leakage @ Vr |
200 µA @ 20 V
|
|
|
Capacitance @ Vr, F |
70pF @ 5V, 1MHz
|
|
|
Grade |
Automotive
|
|
|
Qualification |
AEC-Q101
|
|
|
Mounting Type |
Surface Mount |
|
|
Package / Case |
SC-76, SOD-323 |
|
|
Supplier Device Package |
SOD-323
|
|
|
Operating Temperature - Junction |
-65°C ~ 150°C
|
|
|
Base Product Number |
PMEG2020 |
