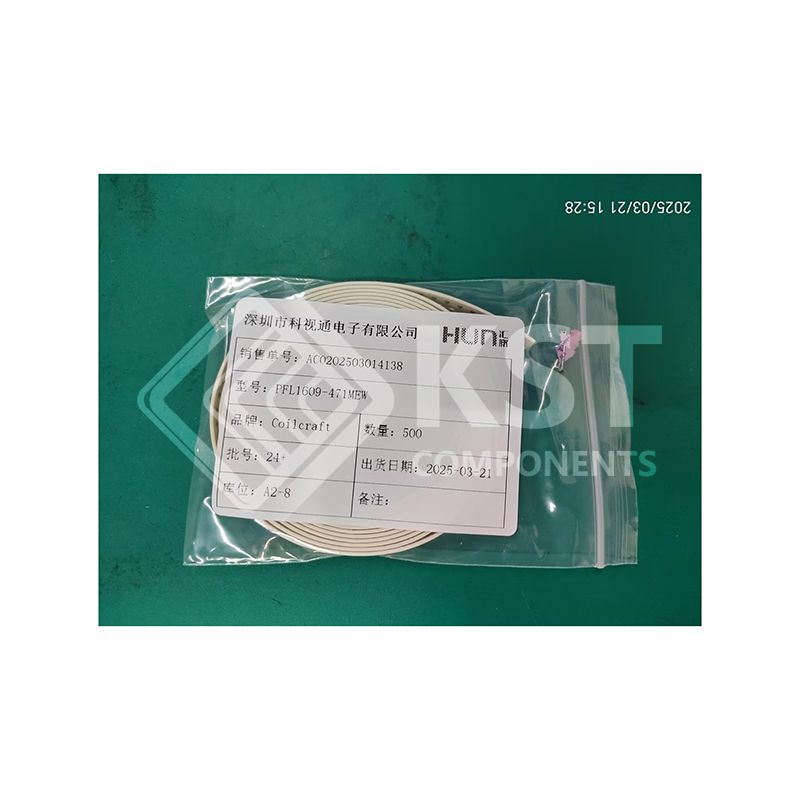

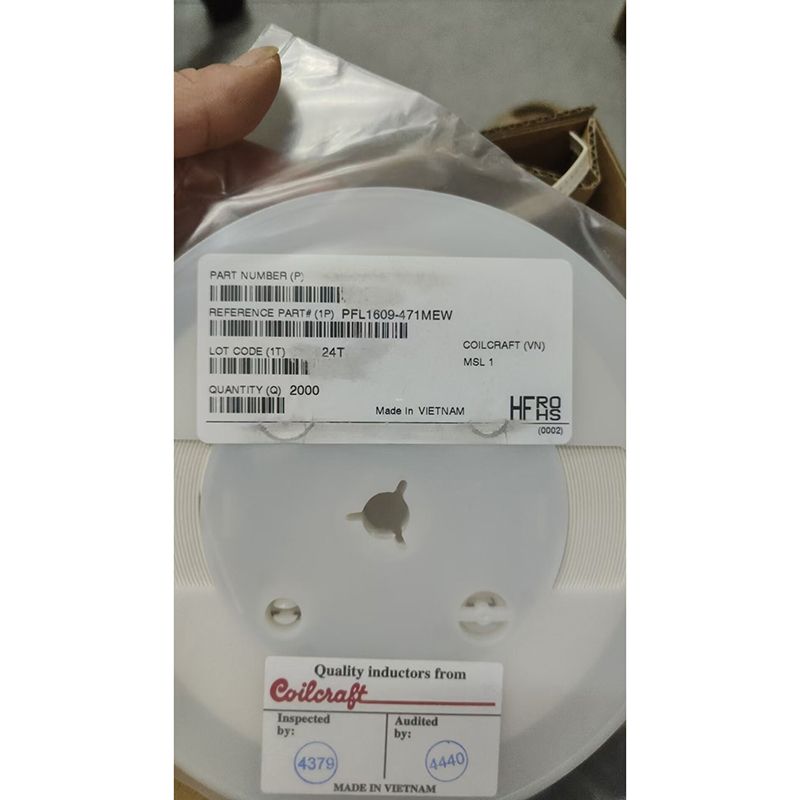

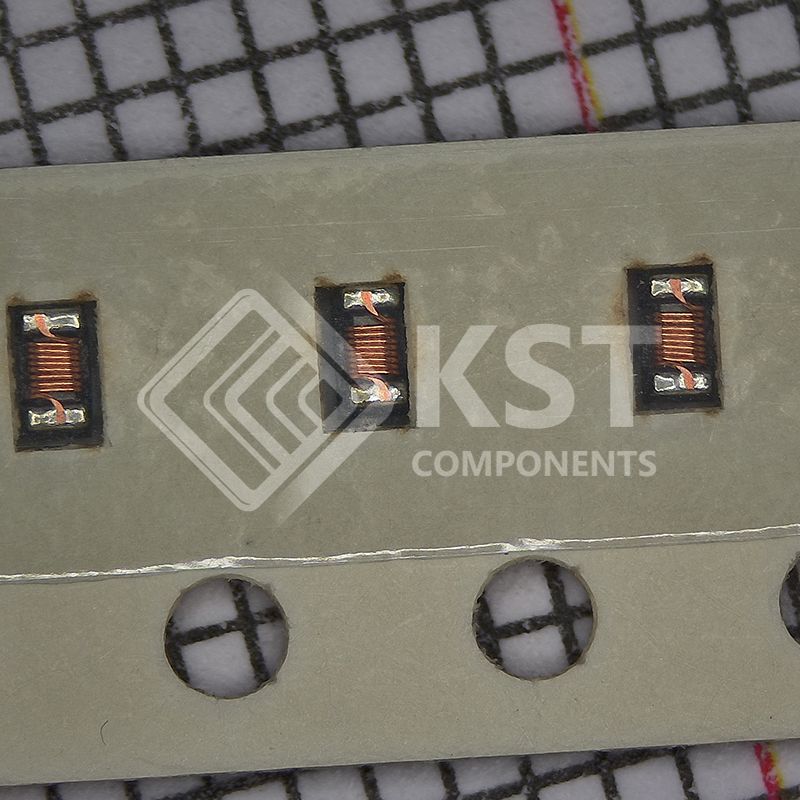

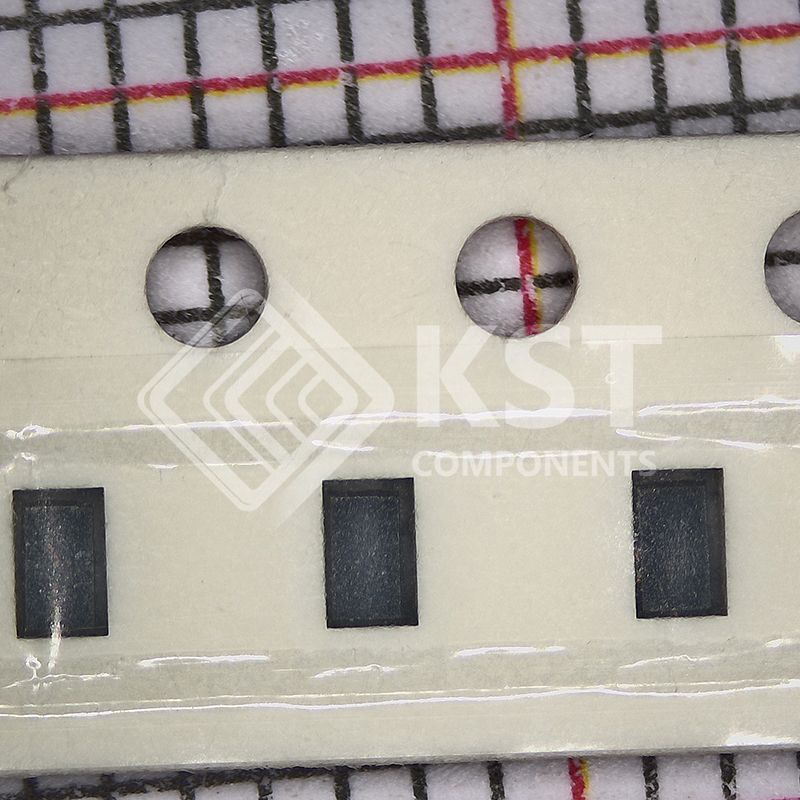

PFL1609-471MEW
Part Number:
PFL1609-471MEW
Product Classification:
Pushbutton Switches - Hall Effect
Manufacturer:
Altera
Description:
POWER INDUCTOR, SHIELDED, 20% TO
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Inductors, Coils, Chokes
Fixed Inductors
|
|
|
Mfr |
Coilcraft |
|
|
Series |
PFL1609 |
|
|
Packaging |
Strip
|
|
|
Part Status |
Active
|
|
|
Type |
Molded
|
|
|
Material - Core |
Metal Composite |
|
|
Inductance |
470 nH
|
|
|
Tolerance |
±20%
|
|
|
Current Rating (Amps) |
1 A |
|
|
Current - Saturation (Isat) |
760mA
|
|
|
Shielding |
Shielded
|
|
|
DC Resistance (DCR) |
100mOhm Max
|
|
|
Q @ Freq |
-
|
|
|
Frequency - Self Resonant |
650MHz
|
|
|
Ratings |
AEC-Q200
|
|
|
Operating Temperature |
-40°C ~ 140°C
|
|
|
Inductance Frequency - Test |
7.9 MHz
|
|
|
Features |
-
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |
Nonstandard
|
|
|
Supplier Device Package |
-
|
|
|
Size / Dimension |
0.071" L x 0.042" W (1.80mm x 1.07mm)
|
|
|
Height - Seated (Max) |
0.038" (0.97mm)
|
