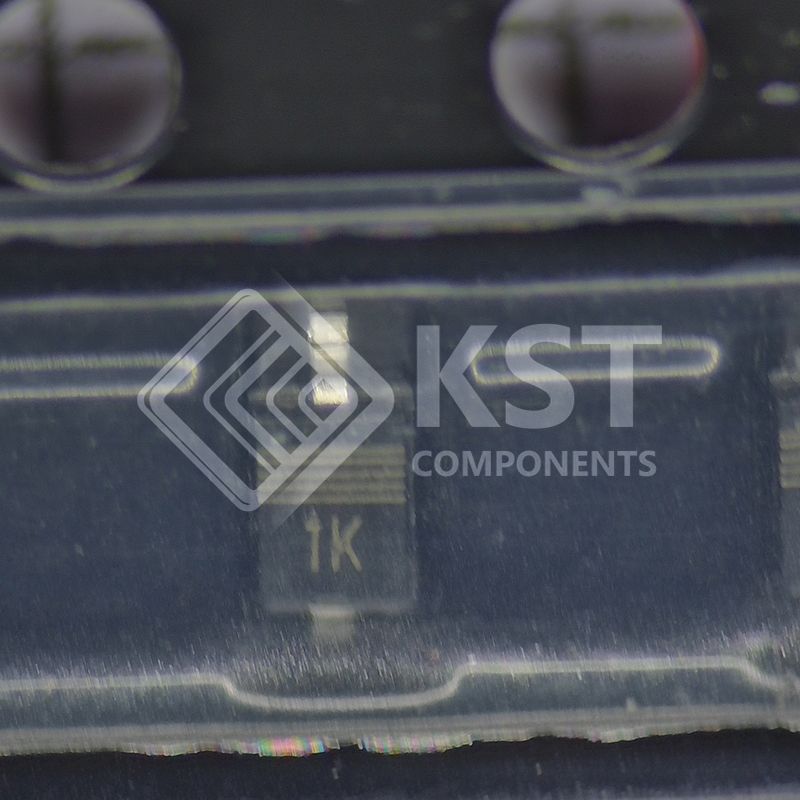

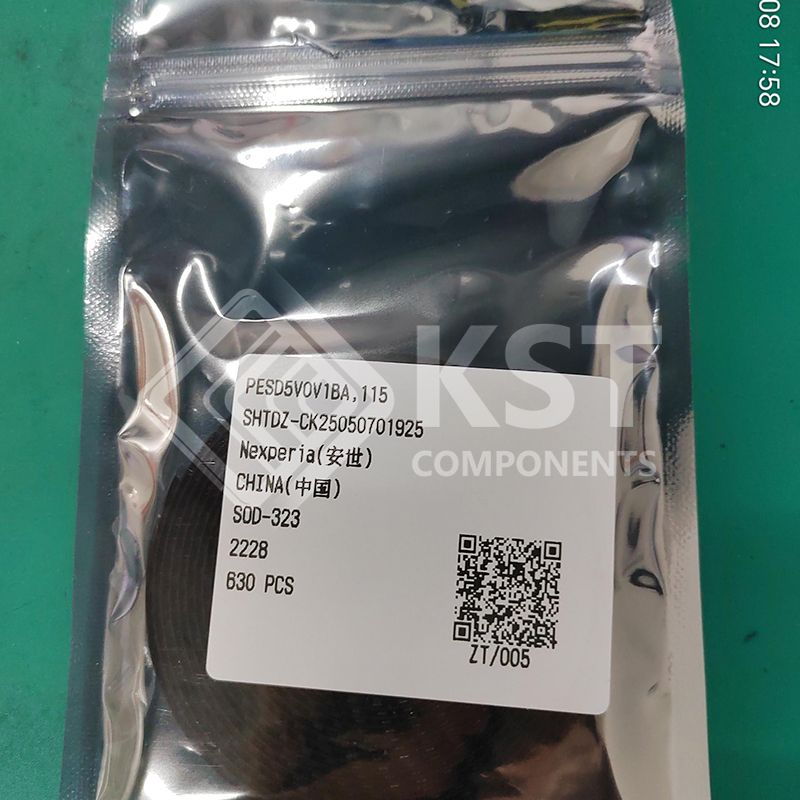

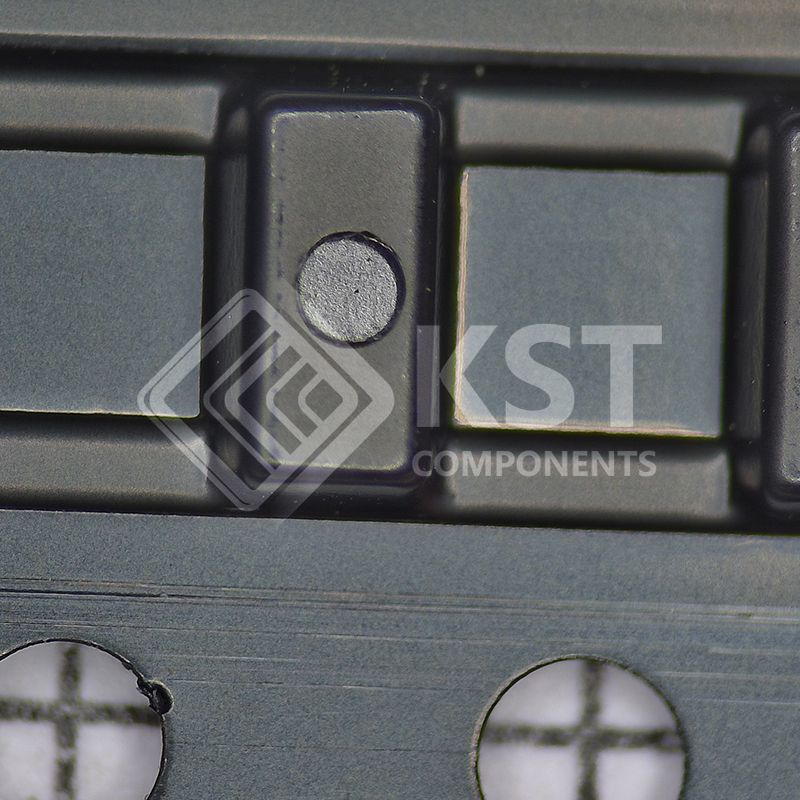

PESD5V0V1BA,115
Part Number:
PESD5V0V1BA,115
Product Classification:
Configurable Switch Lens
Manufacturer:
Amphenol Fiber Systems International
Description:
TVS DIODE 5VWM 12.5VC SOD323
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Circuit Protection
Transient Voltage Suppressors (TVS)
TVS Diodes
|
|
|
Mfr |
Nexperia USA Inc. |
|
|
Series |
-
|
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Type |
Zener
|
|
|
Bidirectional Channels |
1
|
|
|
Voltage - Reverse Standoff (Typ) |
5V (Max)
|
|
|
Voltage - Breakdown (Min) |
5.8V
|
|
|
Voltage - Clamping (Max) @ Ipp |
12.5V
|
|
|
Current - Peak Pulse (10/1000µs) |
4.8A (8/20µs)
|
|
|
Power - Peak Pulse |
45W
|
|
|
Power Line Protection |
No
|
|
|
Applications |
-
|
|
|
Capacitance @ Frequency |
11pF @ 1MHz
|
|
|
Operating Temperature |
-55°C ~ 150°C (TA)
|
|
|
Grade |
Automotive
|
|
|
Qualification |
AEC-Q101
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |
SC-76, SOD-323
|
|
|
Supplier Device Package |
SOD-323 |
|
|
Base Product Number |
PESD5 |
