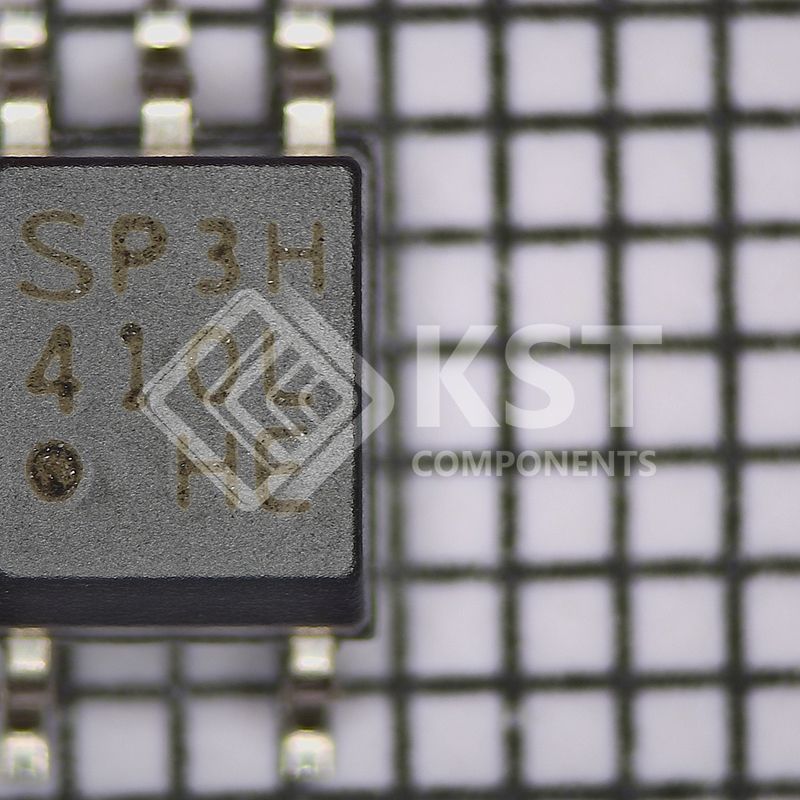

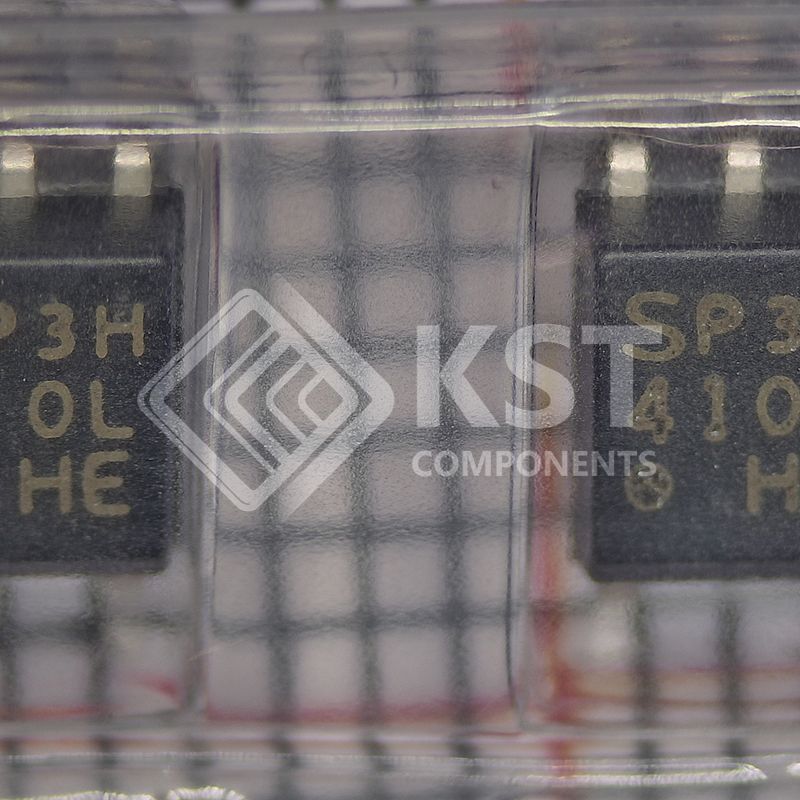

PC410LENIP0F
Part Number:
PC410LENIP0F
Product Classification:
Accessories - Caps
Manufacturer:
Auer Signal
Description:
Logic Output Optoisolator 10Mbps Open Collector 3750Vrms 1 Channel 10kV/µs CMTI
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
| Manufacturer | Sharp Microelectronics |
| Series | - |
| Packaging | Bulk |
| Part Status | Obsolete |
| Number of Channels | 1 |
| Inputs - Side 1/Side 2 | 1/0 |
| Voltage - Isolation | 3750Vrms |
| Common Mode Transient Immunity (Min) | 10kV/µs |
| Input Type | DC |
| Output Type | Open Collector |
| Current - Output / Channel | 50 mA |
| Data Rate | 10Mbps |
| Propagation Delay tpLH / tpHL (Max) | 75ns, 75ns |
| Rise / Fall Time (Typ) | 20ns, 10ns |
| Voltage - Forward (Vf) (Typ) | 1.6V |
| Current - DC Forward (If) (Max) | 20mA |
| Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Base Product Number | PC410 |
