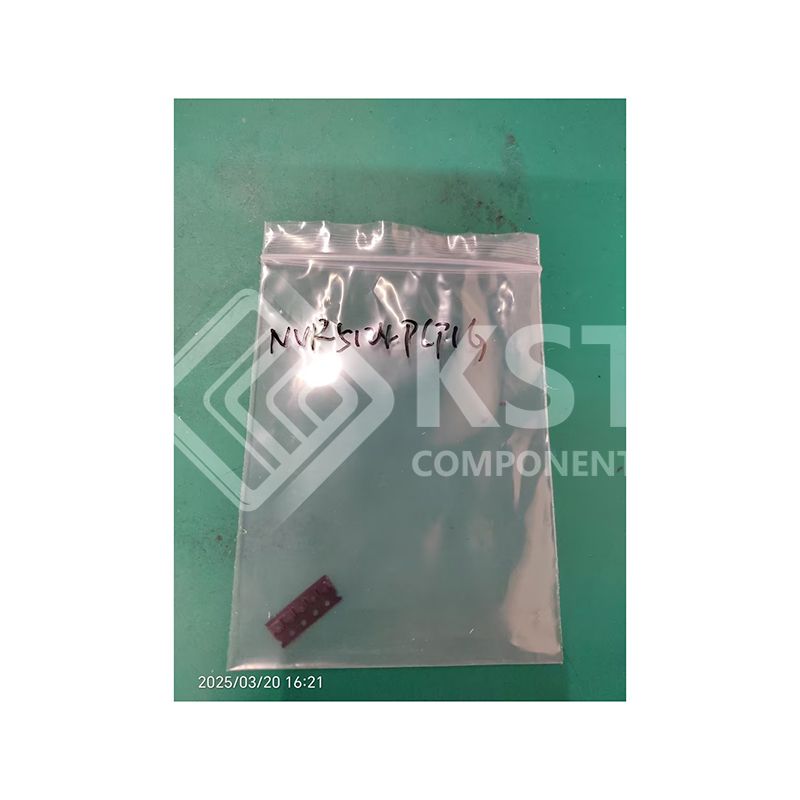

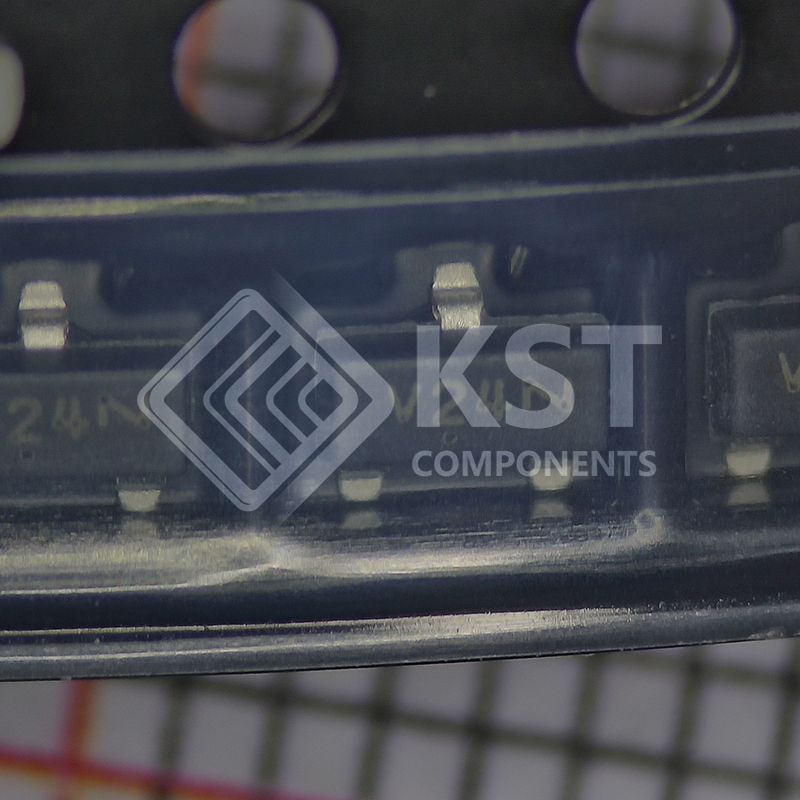

NVR5124PLT1G
Part Number:
NVR5124PLT1G
Product Classification:
Solid State Relays (SSR)
Manufacturer:
ADDA USA
Description:
MOSFET P-CH 60V 1.1A SOT23-3
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Discrete Semiconductor Products
Transistors
FETs, MOSFETs
Single FETs, MOSFETs
|
|
|
Mfr |
onsemi |
|
|
Series |
-
|
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
FET Type |
P-Channel |
|
|
Technology |
MOSFET (Metal Oxide) |
|
|
Drain to Source Voltage (Vdss) |
60 V
|
|
|
Current - Continuous Drain (Id) @ 25°C |
1.1A (Ta) |
|
|
Drive Voltage (Max Rds On, Min Rds On) |
4.5V, 10V
|
|
|
Rds On (Max) @ Id, Vgs |
230mOhm @ 3A, 10V
|
|
|
Vgs(th) (Max) @ Id |
2.5V @ 250µA
|
|
|
Gate Charge (Qg) (Max) @ Vgs |
4.3 nC @ 10 V
|
|
|
Vgs (Max) |
±20V
|
|
|
Input Capacitance (Ciss) (Max) @ Vds |
240 pF @ 25 V
|
|
|
FET Feature |
-
|
|
|
Power Dissipation (Max) |
470mW (Ta)
|
|
|
Operating Temperature |
-55°C ~ 150°C (TJ)
|
|
|
Grade |
Automotive
|
|
|
Qualification |
AEC-Q101
|
|
|
Mounting Type |
Surface Mount
|
|
|
Supplier Device Package |
SOT-23-3 (TO-236)
|
|
|
Package / Case |
TO-236-3, SC-59, SOT-23-3 |
|
|
Base Product Number |
NVR5124 |
