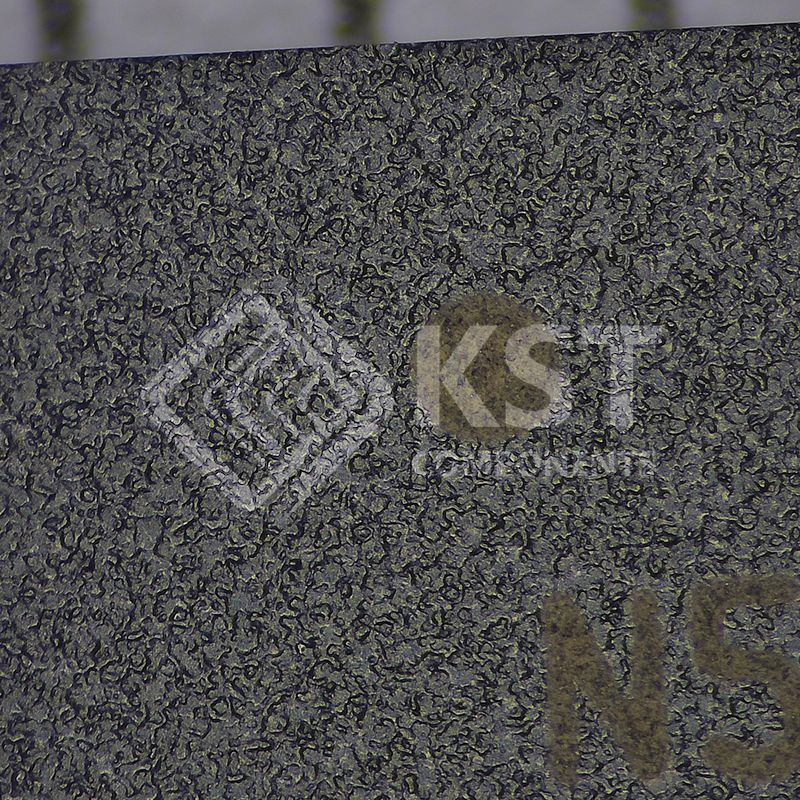

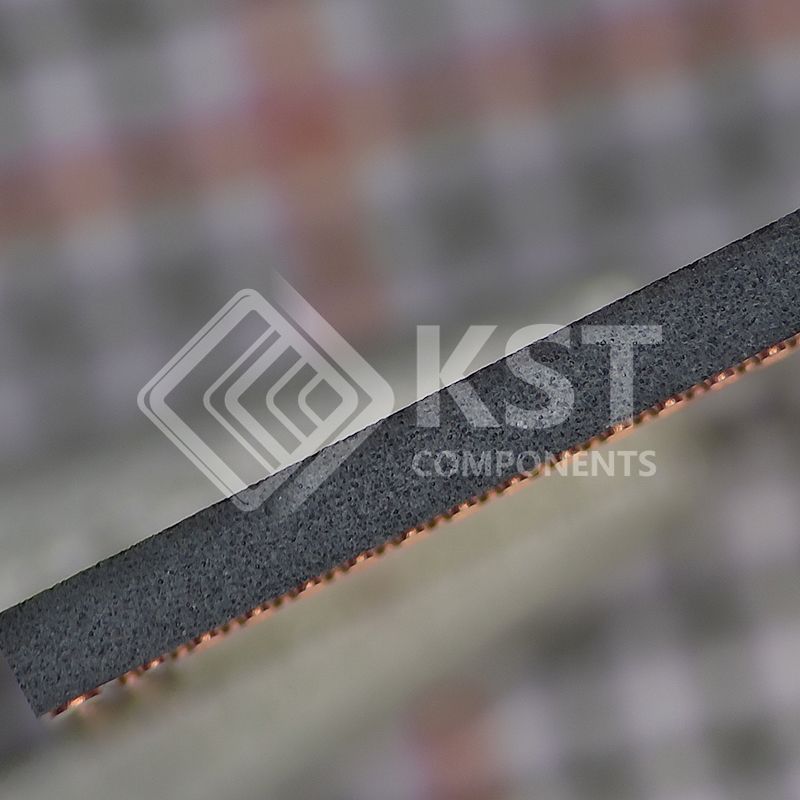

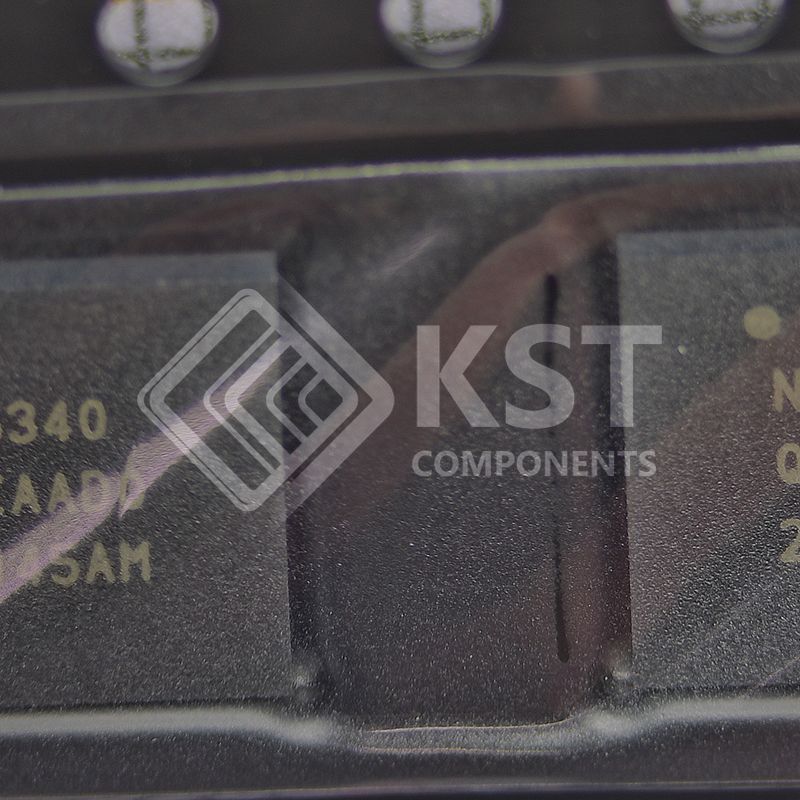

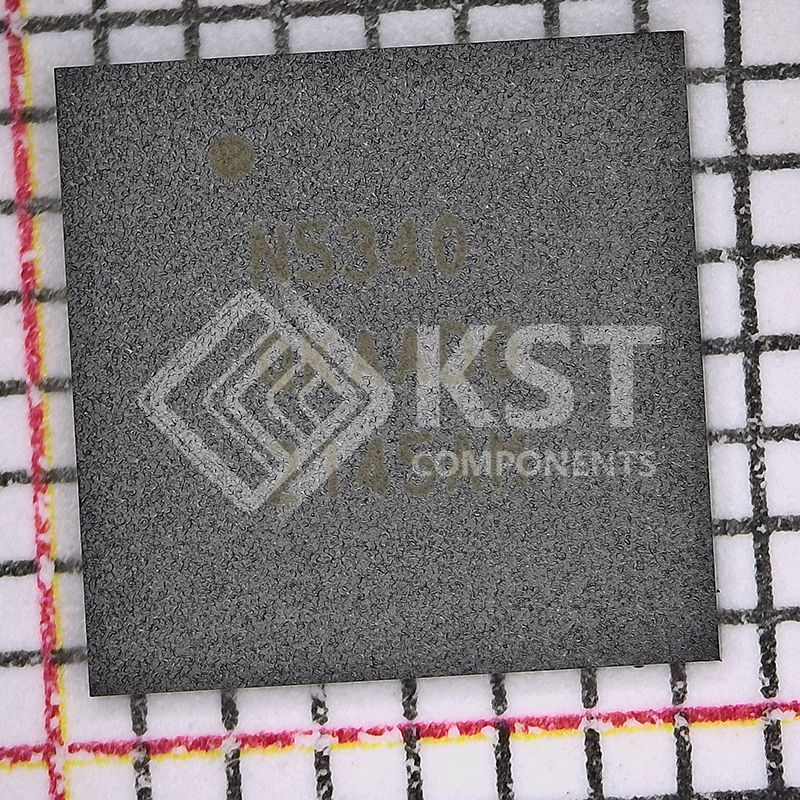

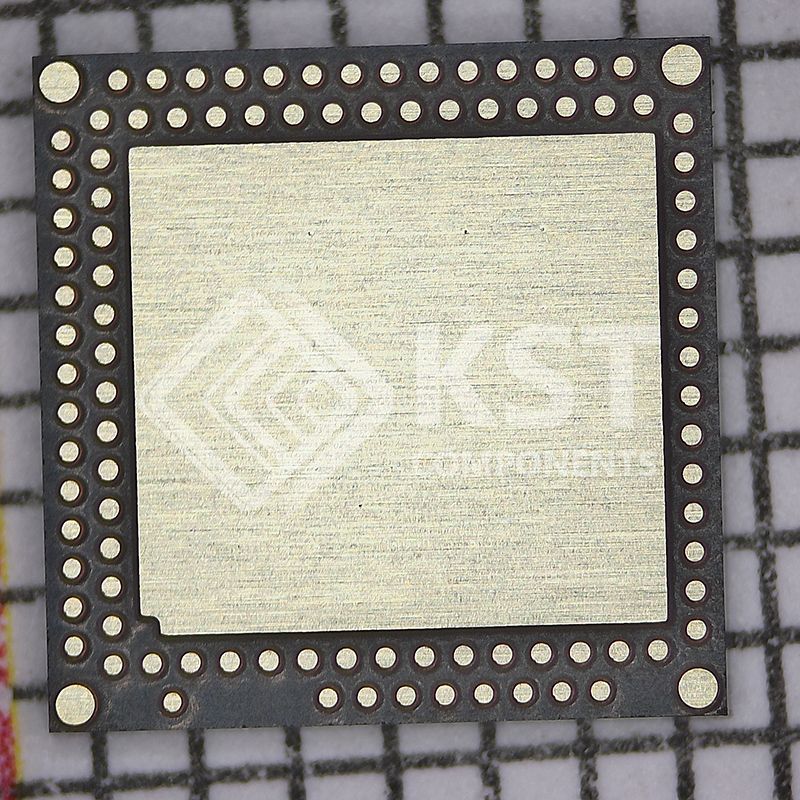

NRF5340-QKAA-R
Part Number:
NRF5340-QKAA-R
Product Classification:
Accessories
Manufacturer:
ATTEND Technology
Description:
IC RF TXRX+MCU 802.15.4 94QFN
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
RF and Wireless
RF Transceiver ICs
|
|
|
Mfr |
Nordic Semiconductor ASA |
|
|
Series |
-
|
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
DigiKey Programmable |
Not Verified
|
|
|
Type |
TxRx + MCU
|
|
|
RF Family/Standard |
802.15.4, Bluetooth
|
|
|
Protocol |
Bluetooth v5.1, Thread, Zigbee® |
|
|
Modulation |
-
|
|
|
Frequency |
2.4GHz |
|
|
Data Rate (Max) |
2Mbps
|
|
|
Power - Output |
3dBm
|
|
|
Sensitivity |
-97.5dBm
|
|
|
Memory Size |
1MB Flash, 256kB RAM
|
|
|
Serial Interfaces |
ADC, I2S, PWM, SPI, UART, USB
|
|
|
GPIO |
48
|
|
|
Voltage - Supply |
1.7V ~ 5.5V
|
|
|
Current - Receiving |
2.6mA ~ 7mA
|
|
|
Current - Transmitting |
3.2mA
|
|
|
Operating Temperature |
-40°C ~ 105°C
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |
94-VFQFN Dual Rows, Exposed Pad
|
|
|
Supplier Device Package |
94-aQFN (7x7)
|
|
|
Base Product Number |
NRF5340 |
