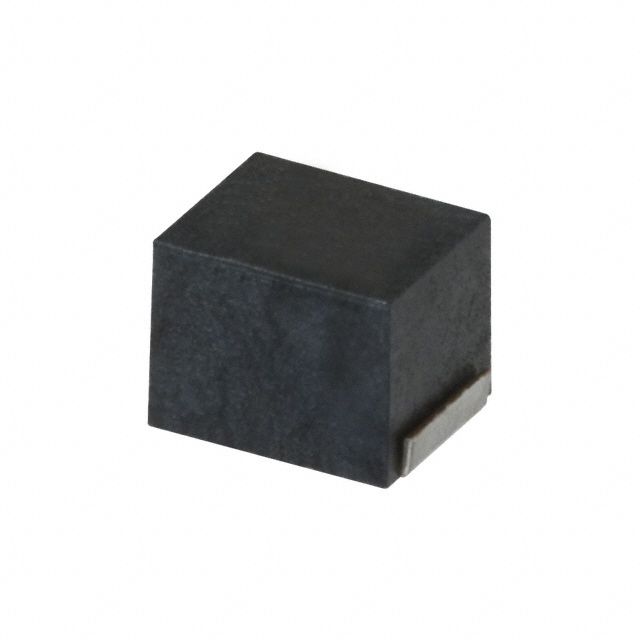

NLCV32T-220K-EF
Part Number:
NLCV32T-220K-EF
Product Classification:
Pushbutton Switches - Hall Effect
Manufacturer:
Essentra Components
Description:
FIXED IND 22UH 300MA 1.001OHM SM
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Inductors, Coils, Chokes
Fixed Inductors
|
|
|
Mfr |
TDK Corporation |
|
|
Series |
NLCV-EF |
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Type |
Drum Core, Wirewound
|
|
|
Material - Core |
Ferrite |
|
|
Inductance |
22 µH
|
|
|
Tolerance |
±10%
|
|
|
Current Rating (Amps) |
300 mA |
|
|
Current - Saturation (Isat) |
-
|
|
|
Shielding |
Unshielded
|
|
|
DC Resistance (DCR) |
1.001Ohm Max
|
|
|
Q @ Freq |
15 @ 2.52MHz
|
|
|
Frequency - Self Resonant |
21MHz
|
|
|
Ratings |
-
|
|
|
Operating Temperature |
-40°C ~ 105°C
|
|
|
Inductance Frequency - Test |
2.52 MHz
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |
1210 (3225 Metric)
|
|
|
Supplier Device Package |
1210
|
|
|
Size / Dimension |
0.126" L x 0.098" W (3.20mm x 2.50mm)
|
|
|
Height - Seated (Max) |
0.094" (2.40mm)
|
