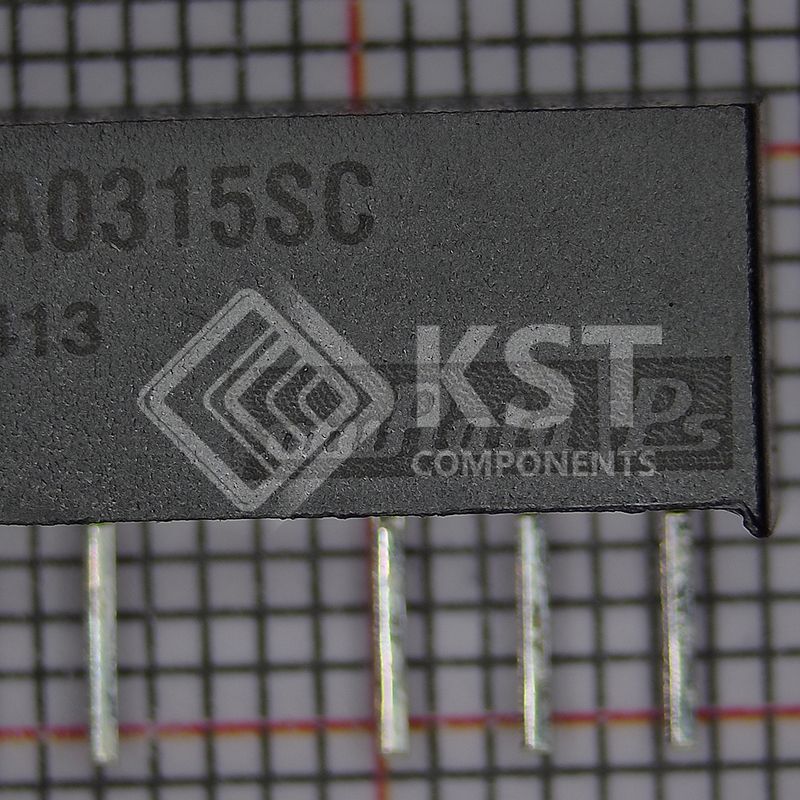

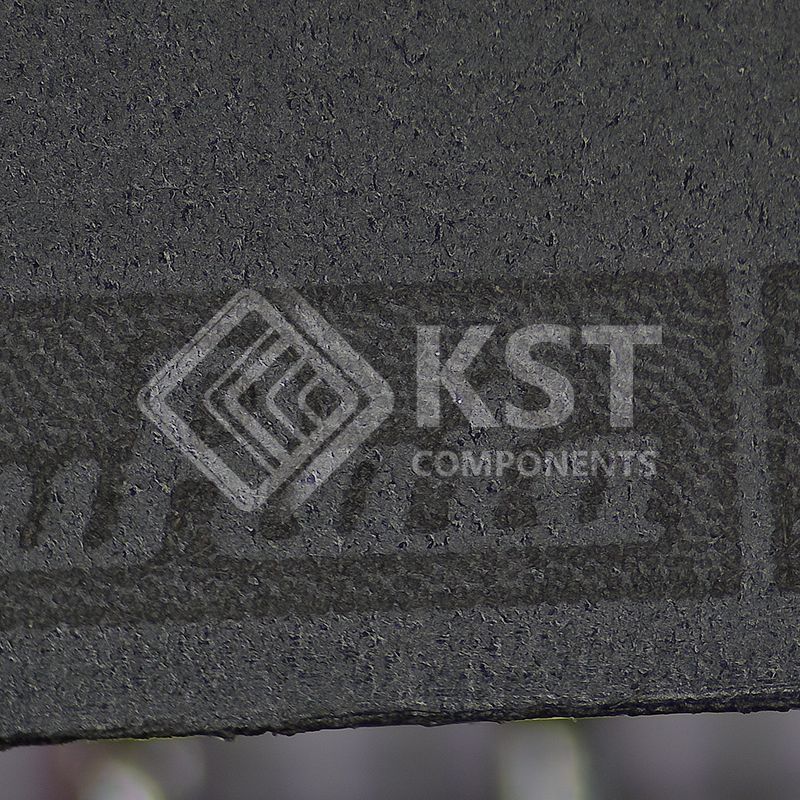

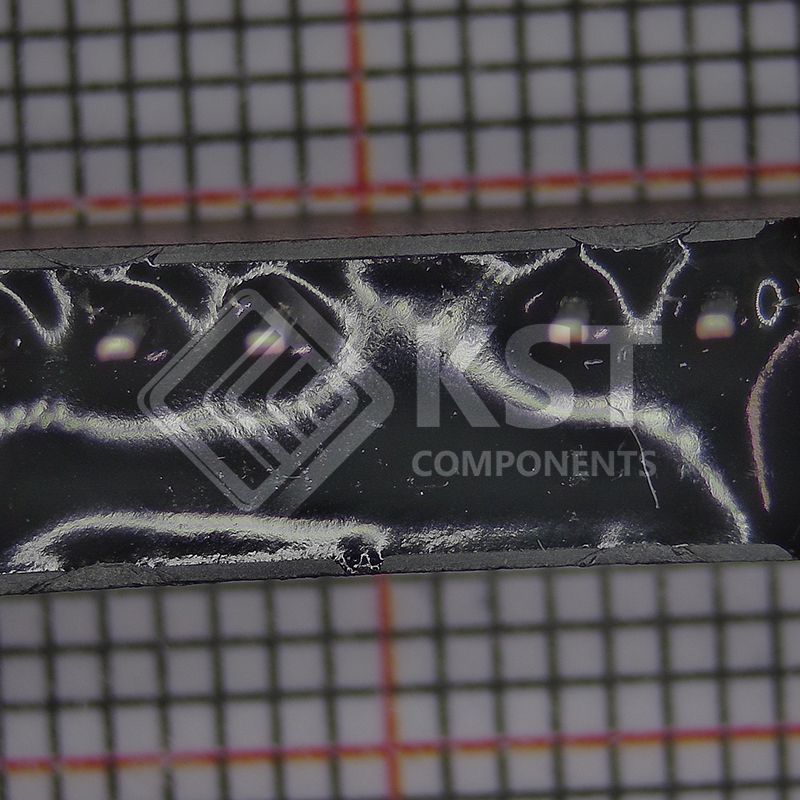

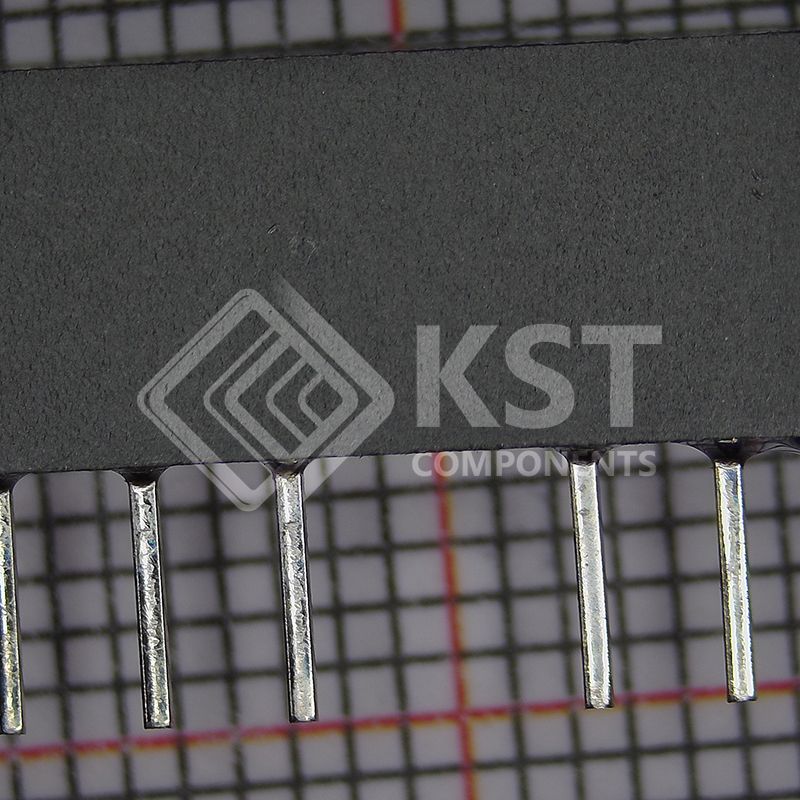

NKA0315SC
Part Number:
NKA0315SC
Product Classification:
Programmable Display Switches
Manufacturer:
Asahi Crosslink
Description:
DC DC CONVERTER +/-15V 1W
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Power Supplies - Board Mount
DC DC Converters
|
|
|
Mfr |
Murata Power Solutions Inc. |
|
|
Series |
NKA (1W) |
|
|

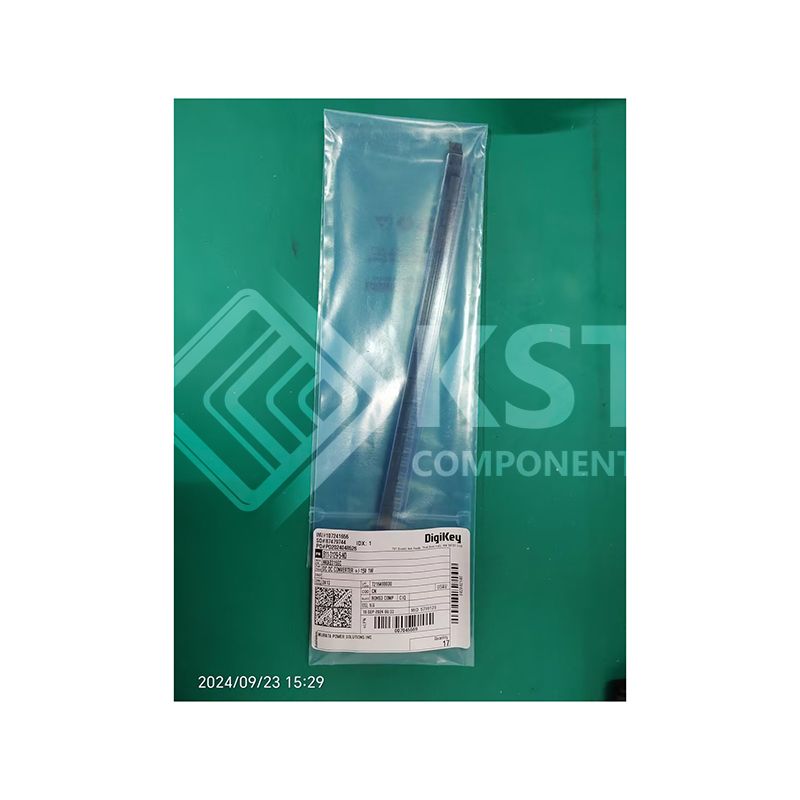

Packaging |
Tube
|
|
|
Part Status |
Active
|
|
|
Type |
Isolated Module
|
|
|
Number of Outputs |
2
|
|
|
Voltage - Input (Min) |
3V
|
|
|
Voltage - Input (Max) |
3.6V
|
|
|
Voltage - Output 1 |
15V |
|
|
Voltage - Output 2 |
-15V
|
|
|
Voltage - Output 3 |
-
|
|
|
Current - Output (Max) |
33mA, 33mA
|
|
|
Power (Watts) |
1 W
|
|
|
Voltage - Isolation |
3 kV
|
|
|
Applications |
ITE (Commercial)
|
|
|
Features |
-
|
|
|
Operating Temperature |
-40°C ~ 85°C
|
|
|
Efficiency |
79%
|
|
|
Mounting Type |
Through Hole
|
|
|
Package / Case |
6-SIP Module, 5 Leads
|
|
|
Size / Dimension |
0.65" L x 0.23" W x 0.30" H (16.5mm x 5.8mm x 7.6mm)
|
|
|
Control Features |
-
|
|
|
Base Product Number |
NKA03 |
