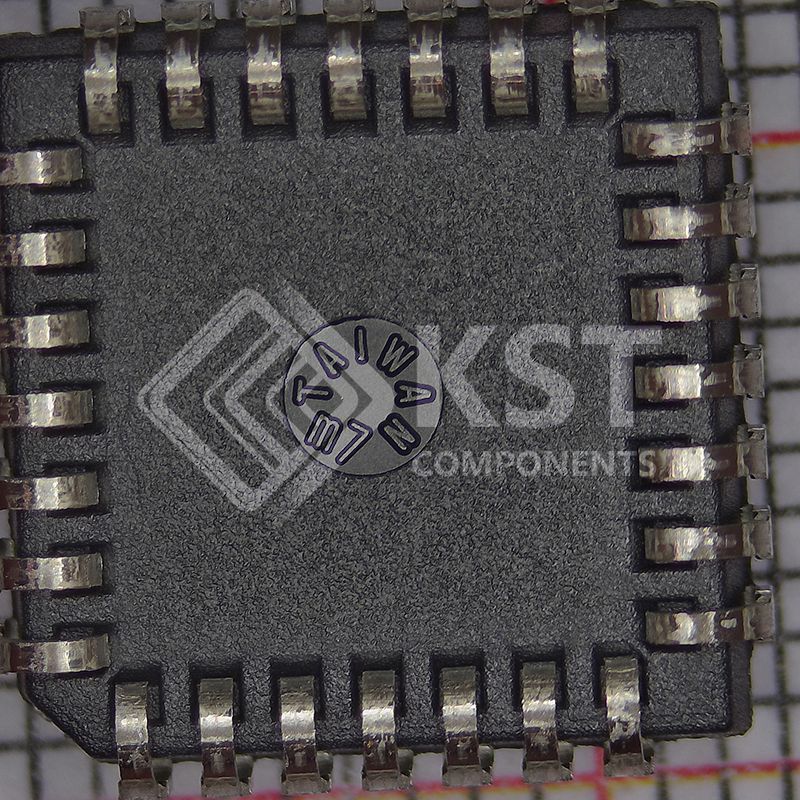

NJM3771FM2
Part Number:
NJM3771FM2
Product Classification:
Keylock Switches
Manufacturer:
Cita Technologies
Description:
IC MOTOR DRIVER BIPOLAR 28PLCC
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Integrated Circuits (ICs)
Power Management (PMIC)
Motor Drivers, Controllers
|
|
|
Manufacturer |
Nisshinbo Micro Devices Inc.
|
|
|
Series |
-
|
|
|
Packaging |
Tube
|
|
|
Part Status |
Obsolete
|
|
|
Motor Type - Stepper |
Bipolar
|
|
|
Motor Type - AC, DC |
-
|
|
|
Function |
Driver - Fully Integrated, Control and Power Stage
|
|
|
Output Configuration |
Half Bridge (4)
|
|
|
Interface |
Parallel
|
|
|
Technology |
Bipolar
|
|
|
Step Resolution |
1, 1/2
|
|
|
Applications |
General Purpose
|
|
|
Current - Output |
650mA
|
|
|
Voltage - Supply |
4.75V ~ 5.25V
|
|
|
Voltage - Load |
10V ~ 40V
|
|
|
Operating Temperature |
-20°C ~ 125°C (TJ)
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |
28-LCC (J-Lead)
|
|
|
Supplier Device Package |
28-PLCC (11.51x11.51)
|
|
|
Base Product Number |
NJM3771 |
