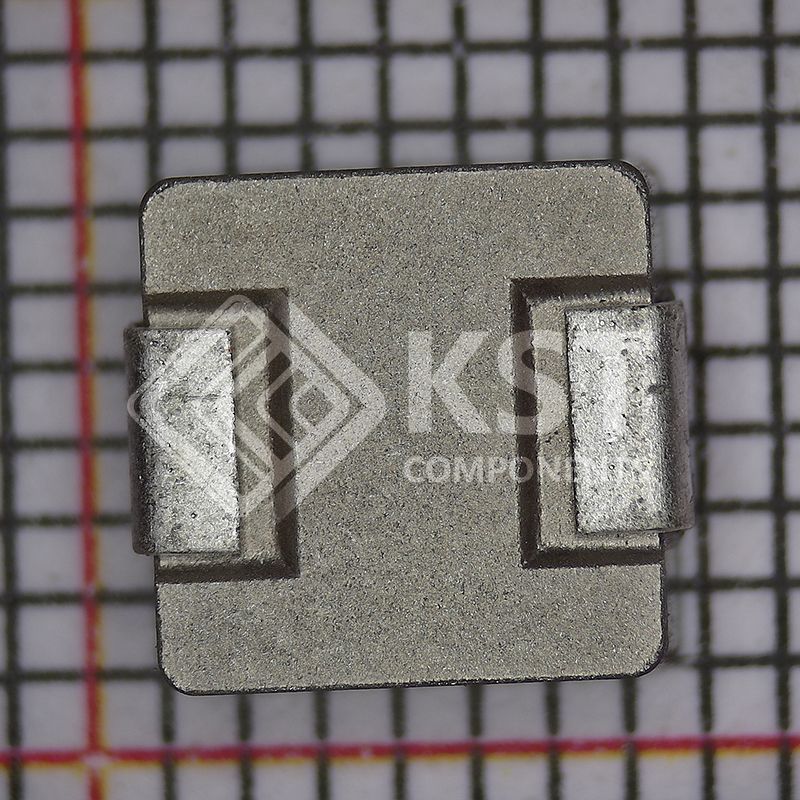

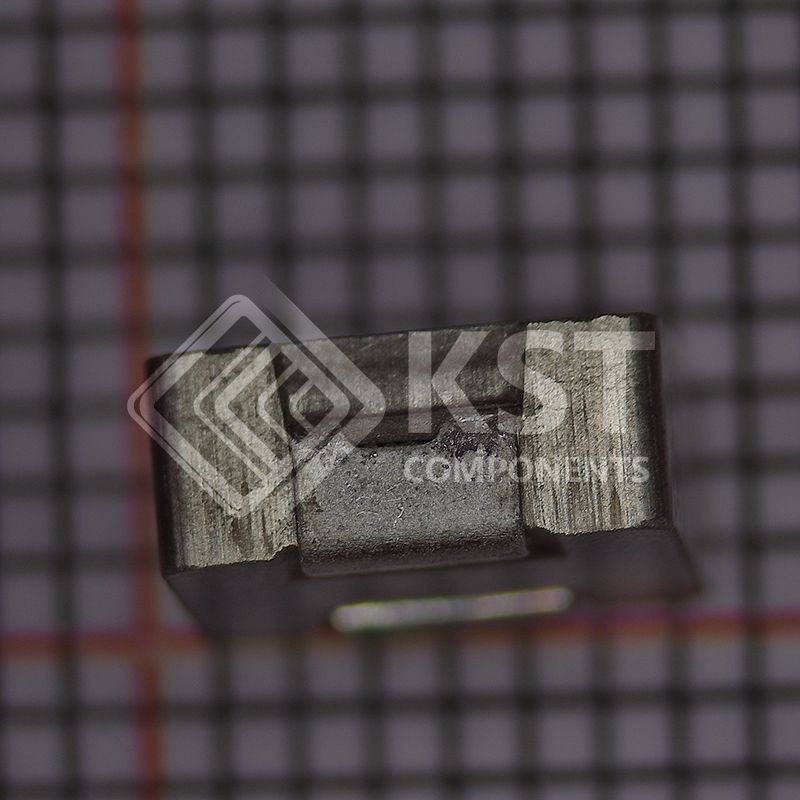

MWSA0603S-R47MT
Part Number:
MWSA0603S-R47MT
Product Classification:
Power Relays, Over 2 Amps
Manufacturer:
ACL Staticide, Inc.
Description:
Inductor Power Molded Wirewound 0.47uH 20% 100KHz Alloy Sponge Powder 18A 0.0041Ohm DCR 2525 T/R
Packaging:
-
ROHS Status:
No
Currency:
USD
| Mfr | Shenzhen Sunlord Electronics Co., Ltd. |
| Series | MWSA-S |

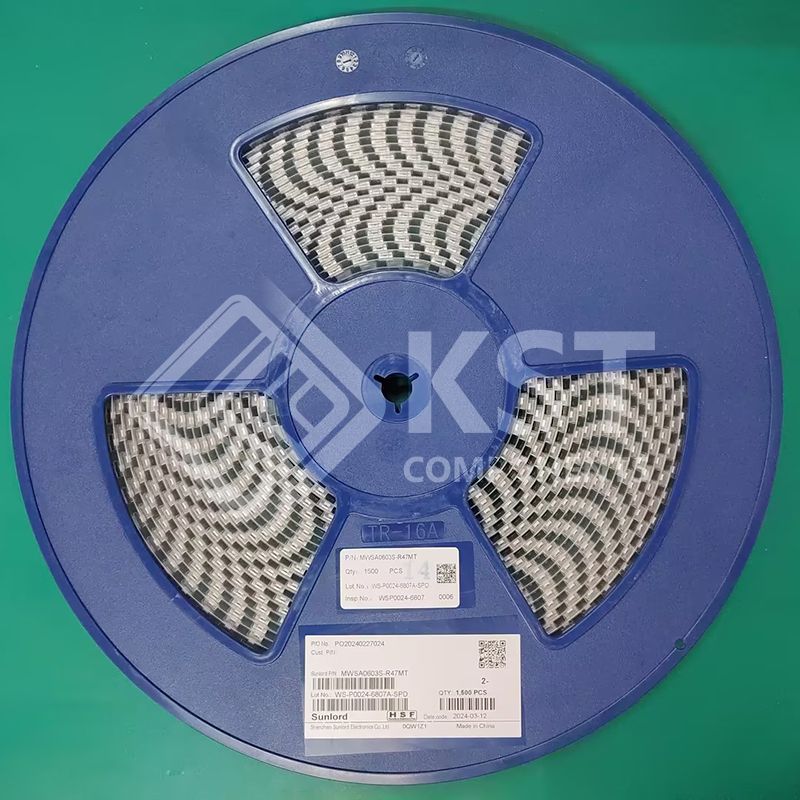

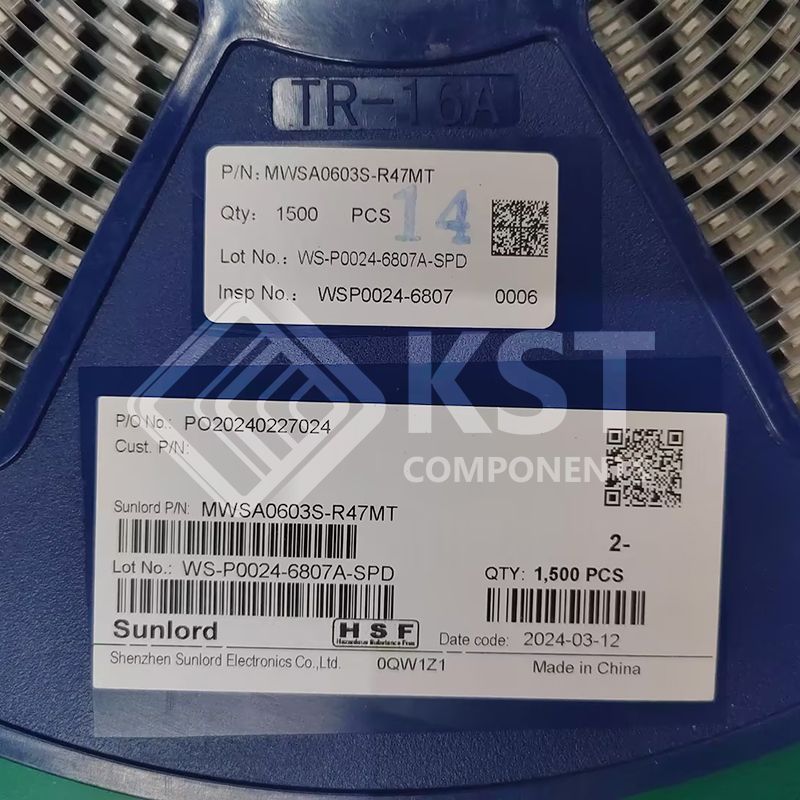

| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Alloy Powder |
| Inductance | 470 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 18 A |
| Current - Saturation (Isat) | 20A |
| Shielding | Shielded |
| DC Resistance (DCR) | 4.1mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.276" L x 0.260" W (7.00mm x 6.60mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
| Base Product Number | MWSA0603S |
