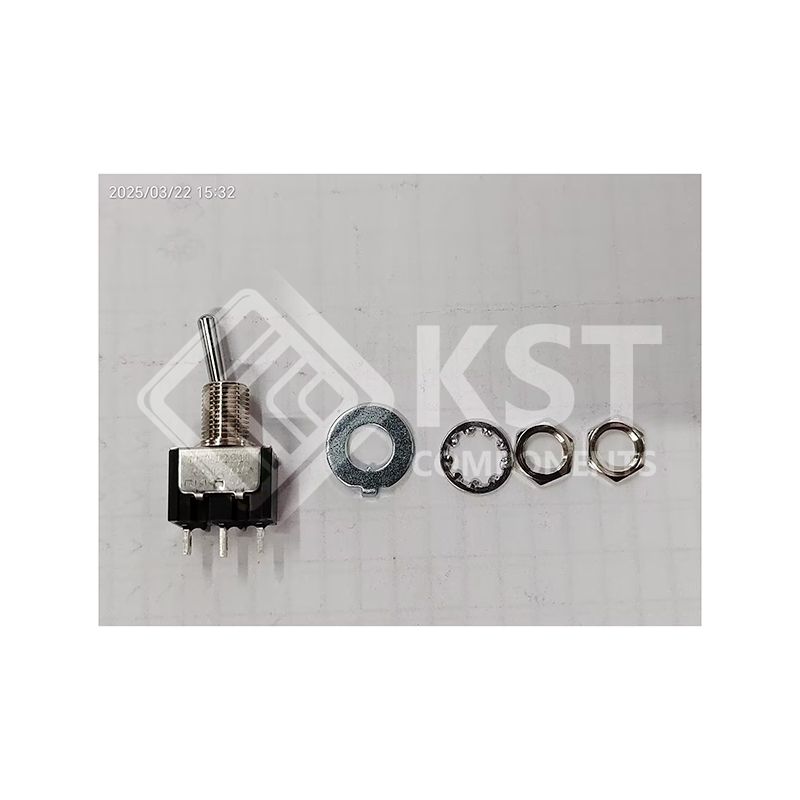

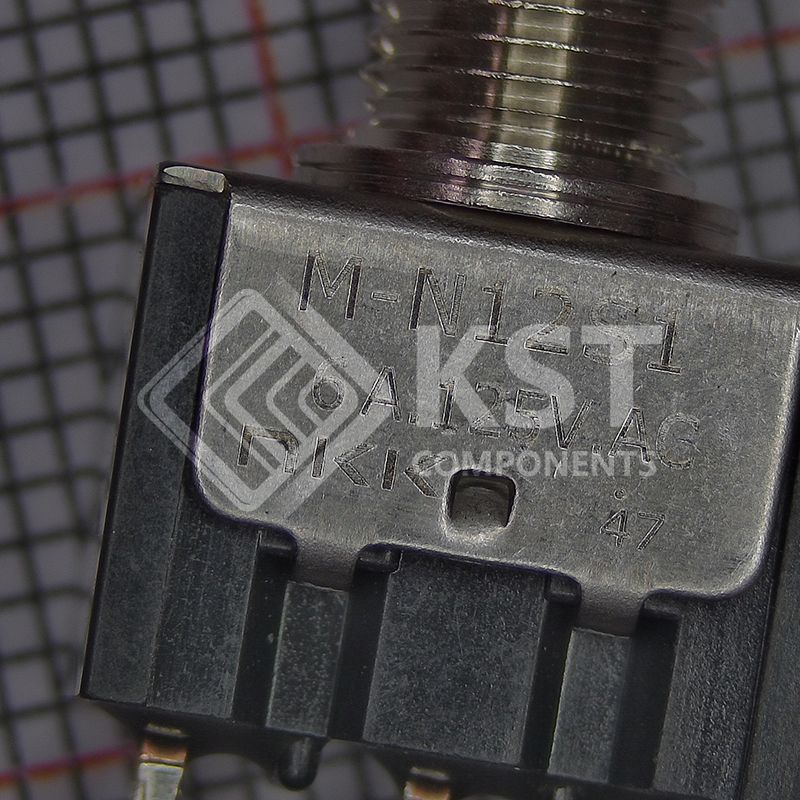

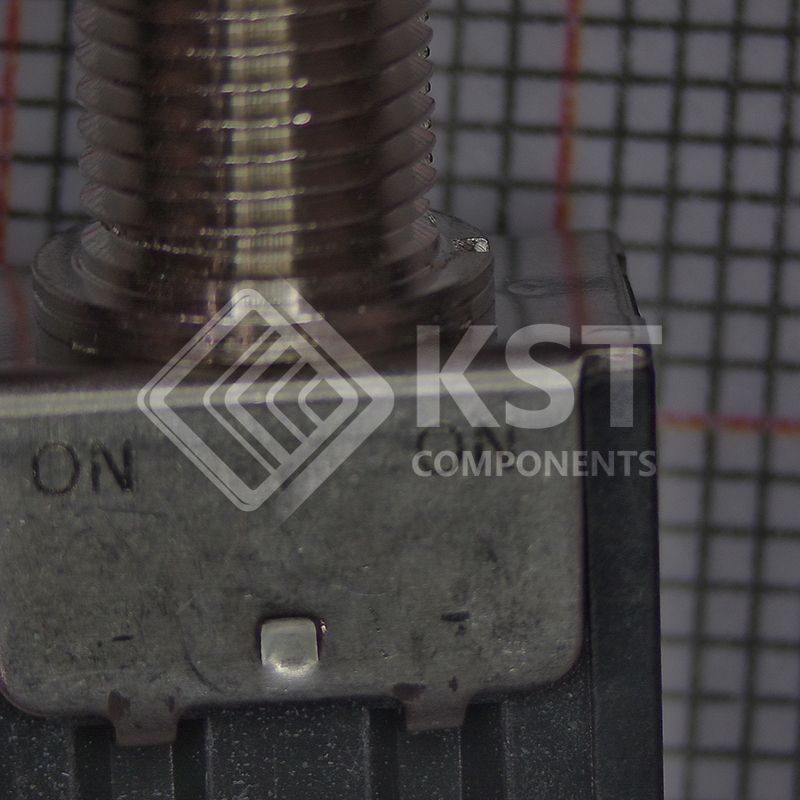

MN12SS1W01
Part Number:
MN12SS1W01
Product Classification:
Diode Arrays
Manufacturer:
C&D Technologies (Murata Power Solutions)
Description:
SWITCH TOGGLE
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Switches
Toggle Switches
|
|
|
Mfr |
NKK Switches |
|
|
Series |
M |
|
|
Packaging |
Bulk
|
|
|
Part Status |
Active
|
|
|
Mounting Type |
Panel Mount
|
|
|
Circuit |
SPDT |
|
|
Switch Function |
On-On |
|
|
Current Rating (Amps) |
6A (AC), 4A (DC)
|
|
|
Voltage Rating - AC |
125 V
|
|
|
Voltage Rating - DC |
30 V
|
|
|
Actuator Type |
Standard Round
|
|
|
Actuator Length |
10.50mm
|
|
|
Illumination |
Non-Illuminated
|
|
|
Illumination Type, Color |
-
|
|
|
Illumination Voltage (Nominal) |
-
|
|
|
Termination Style |
Solder Lug
|
|
|
Panel Cutout Dimensions |
Circular - 6.50mm Dia
|
|
|
Bushing Thread |
1/4-40
|
|
|
Ingress Protection |
-
|
|
|
Features |
-
|
|
|
Operating Temperature |
-30°C ~ 85°C
|
|
|
Actuator Material |
Brass, Chrome Plated
|
|
|
Electrical Life |
25,000 Cycles
|
