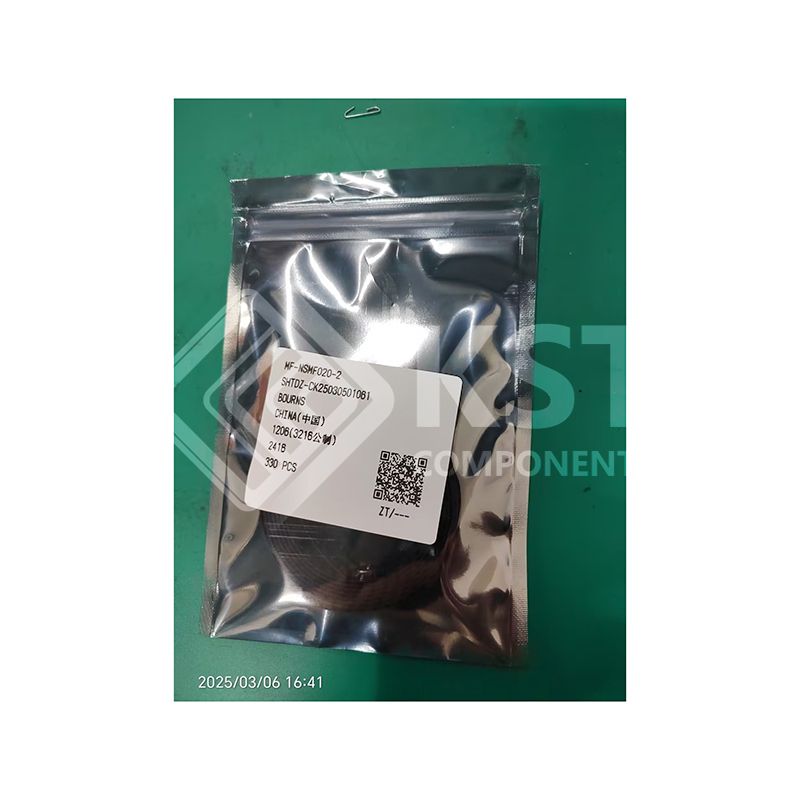

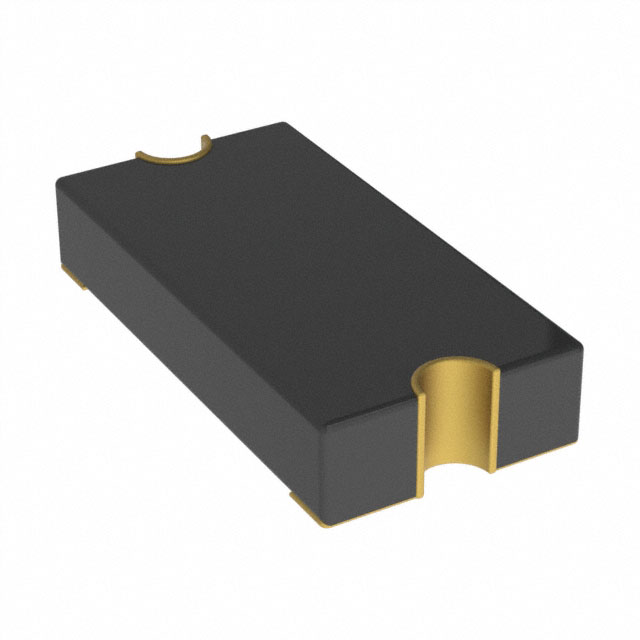

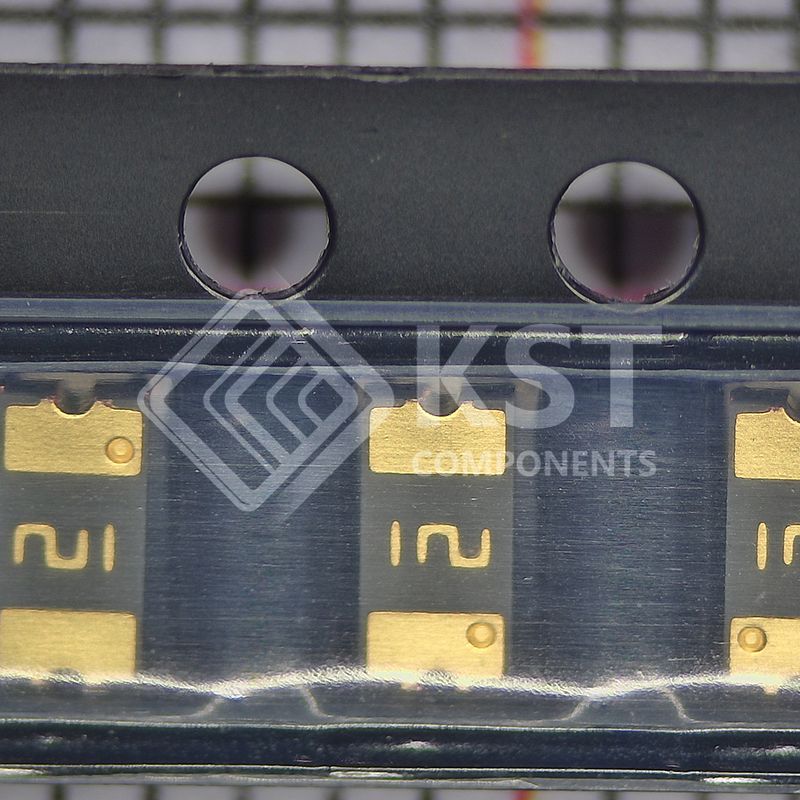

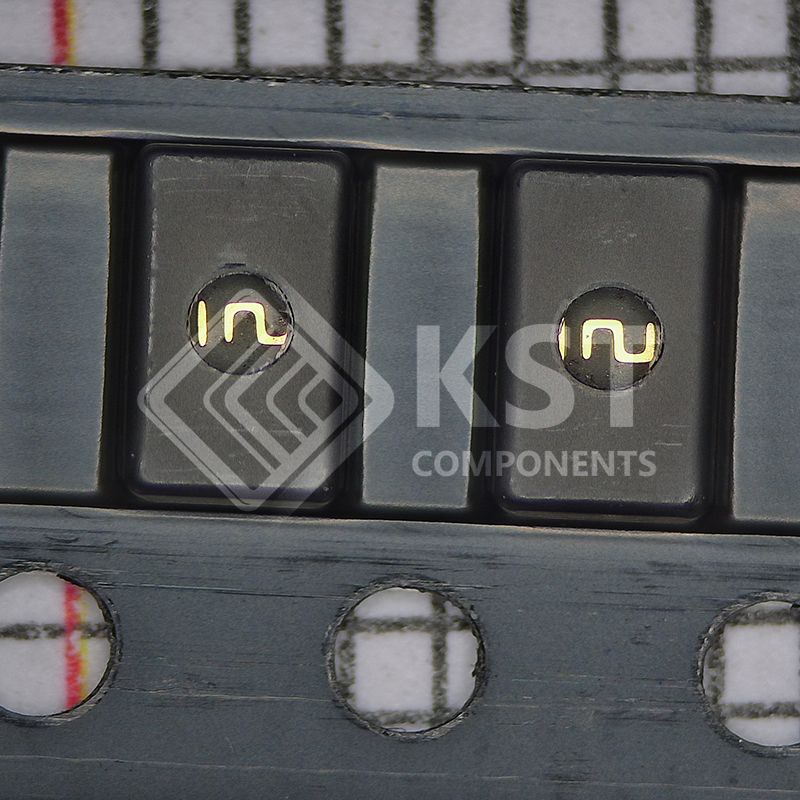

MF-NSMF020-2
Part Number:
MF-NSMF020-2
Product Classification:
Fan Accessories
Manufacturer:
Almit (ANA TRADING)
Description:
PTC RESET FUSE 24V 200MA 1206
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Circuit Protection
PTC Resettable Fuses
|
|
|
Manufacturer |
Bourns Inc.
|
|
|
Series |
Multifuse®, MF-NSMF |
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Type |
Polymeric
|
|
|
Voltage - Max |
24V
|
|
|
Current - Hold (Ih) (Max) |
200 mA
|
|
|
Current - Trip (It) |
460 mA
|
|
|
Current - Max |
10 A
|
|
|
Time to Trip |
600 ms
|
|
|
Resistance - Initial (Ri) (Min) |
600 mOhms
|
|
|
Resistance - Post Trip (R1) (Max) |
2.6 Ohms
|
|
|
Operating Temperature |
-40°C ~ 85°C
|
|
|
Grade |
Automotive
|
|
|
Qualification |
AEC-Q200
|
|
|
Ratings |
-
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |
1206 (3216 Metric), Concave
|
|
|
Size / Dimension |
0.126" L x 0.063" W (3.20mm x 1.60mm)
|
|
|
Height - Seated (Max) |
-
|
|
|
Thickness (Max) |
0.033" (0.85mm)
|
|
|
Lead Spacing |
-
|
|
|
Approval Agency |
cUL, cURus, TUV
|
|
|
Base Product Number |
MF-NSMF |
