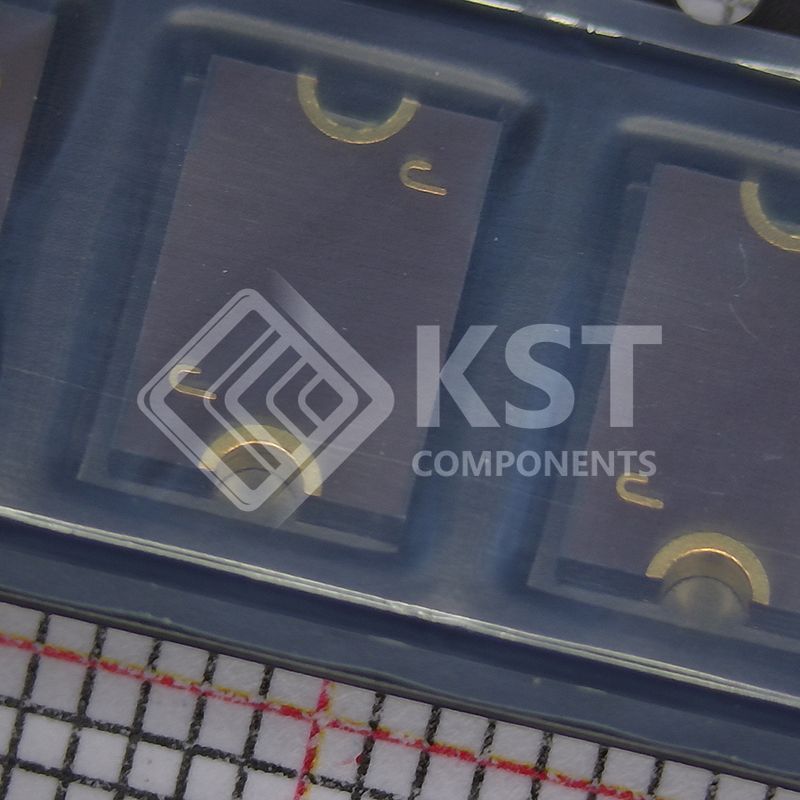

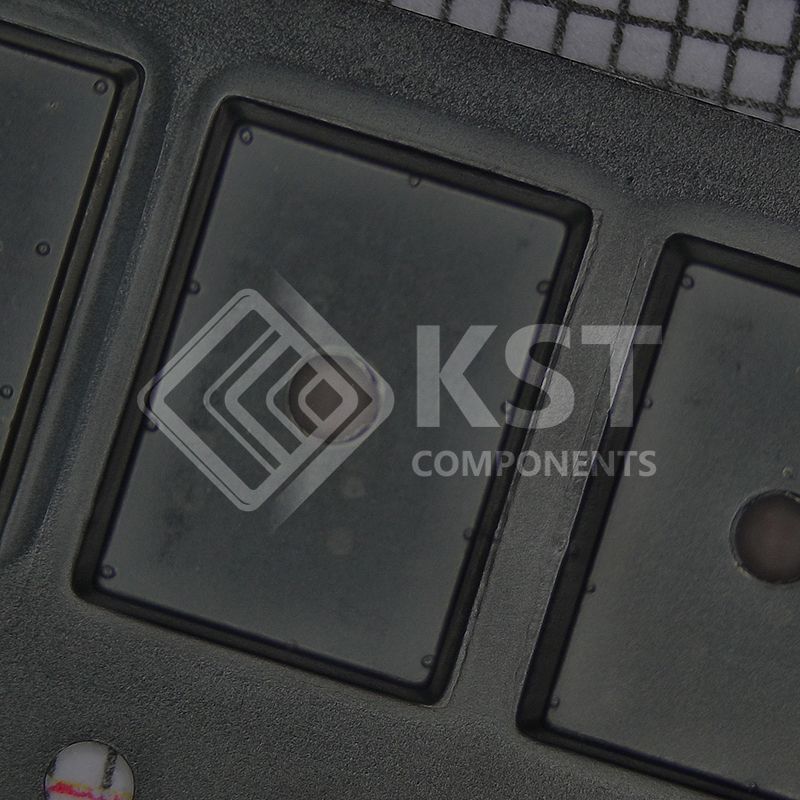

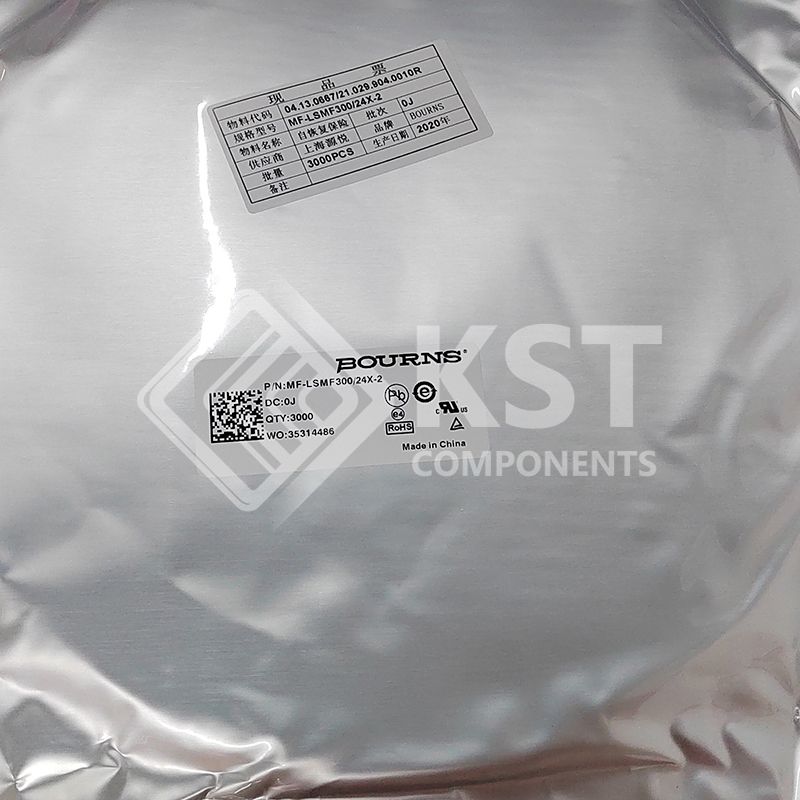

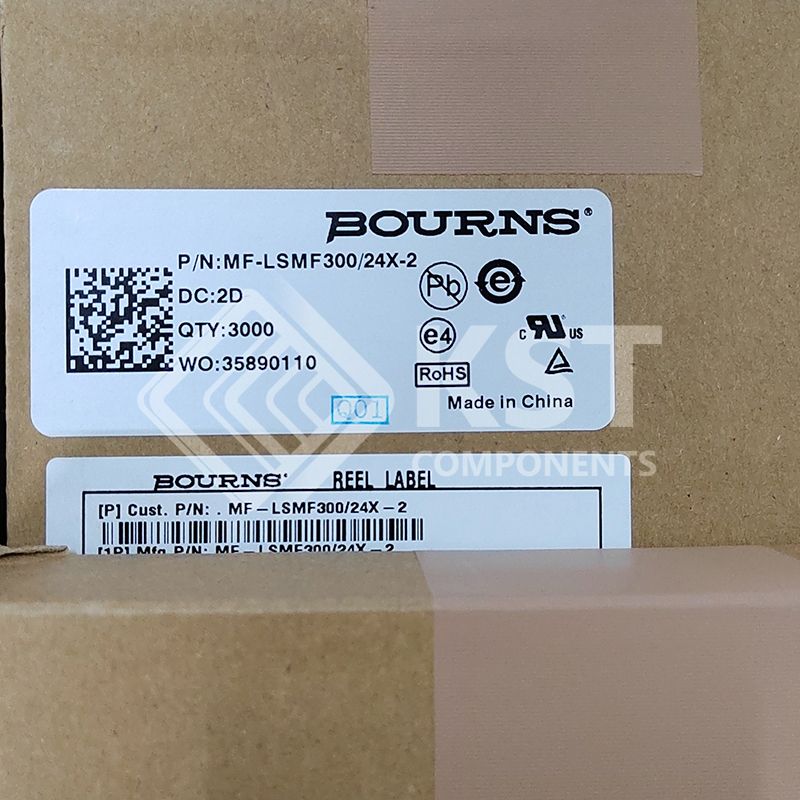

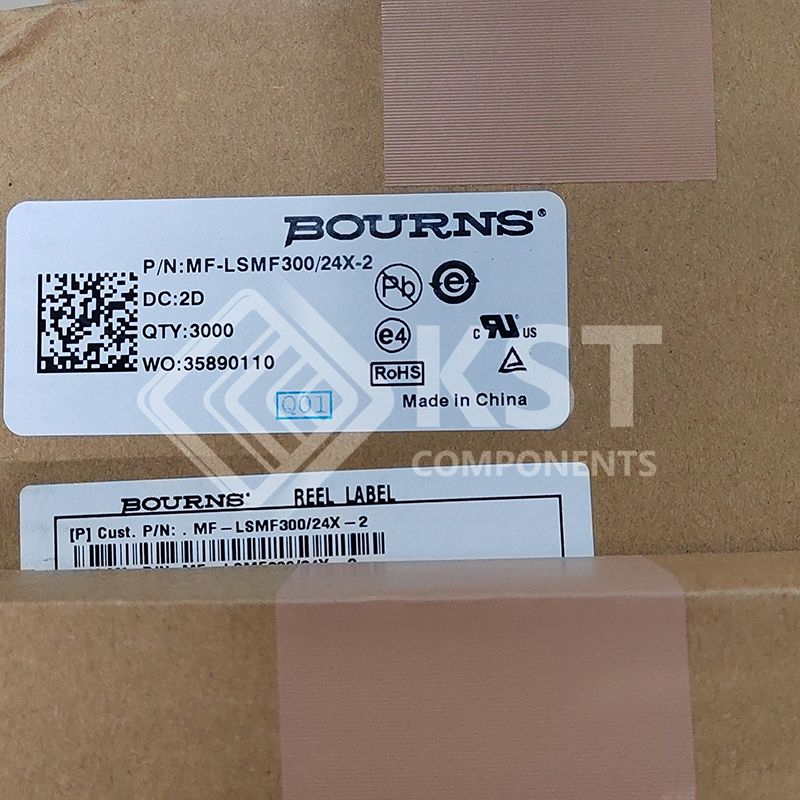

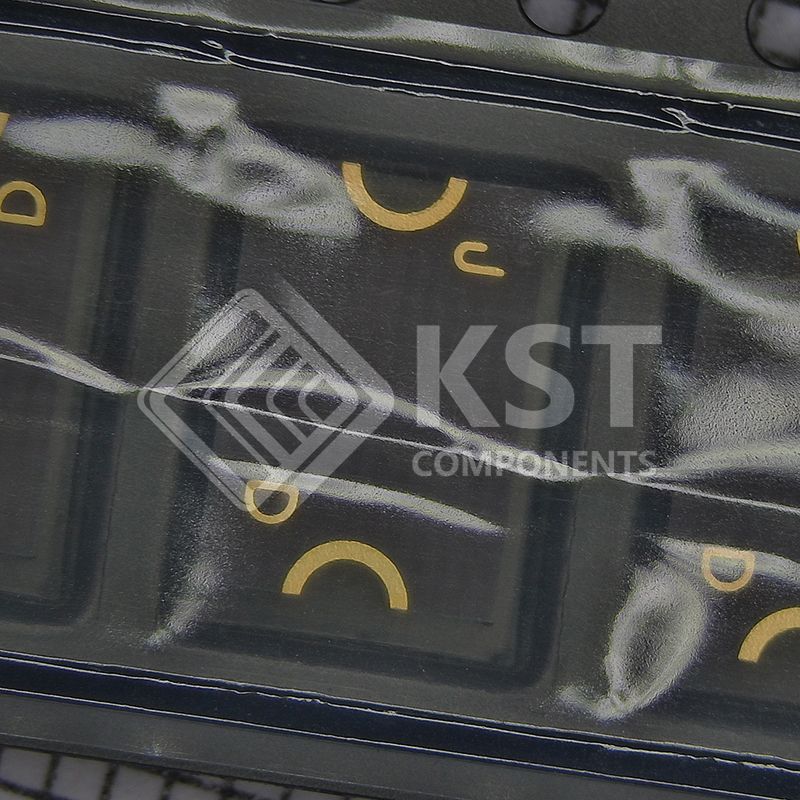

MF-LSMF300 24X-2
Part Number:
MF-LSMF300 24X-2
Product Classification:
Fan Accessories
Manufacturer:
Almit (ANA TRADING)
Description:
PTC RESET FUSE 24V 3A 2920
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Circuit Protection
PTC Resettable Fuses
|
|
|
Manufacturer |
Bourns Inc.
|
|
|
Series |
Multifuse®, MF-LSMF |
|
|
Packaging |

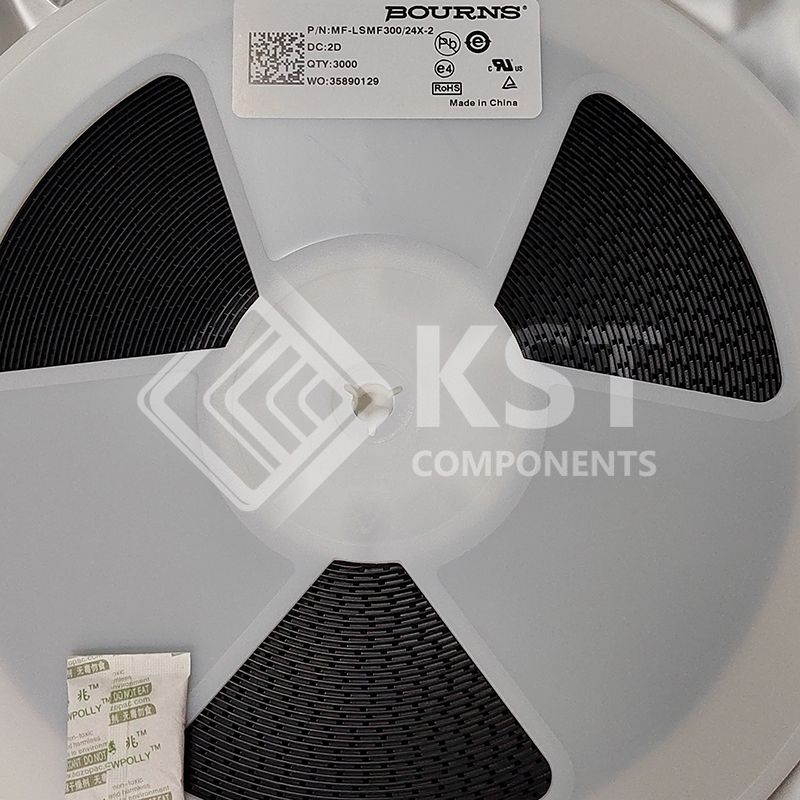

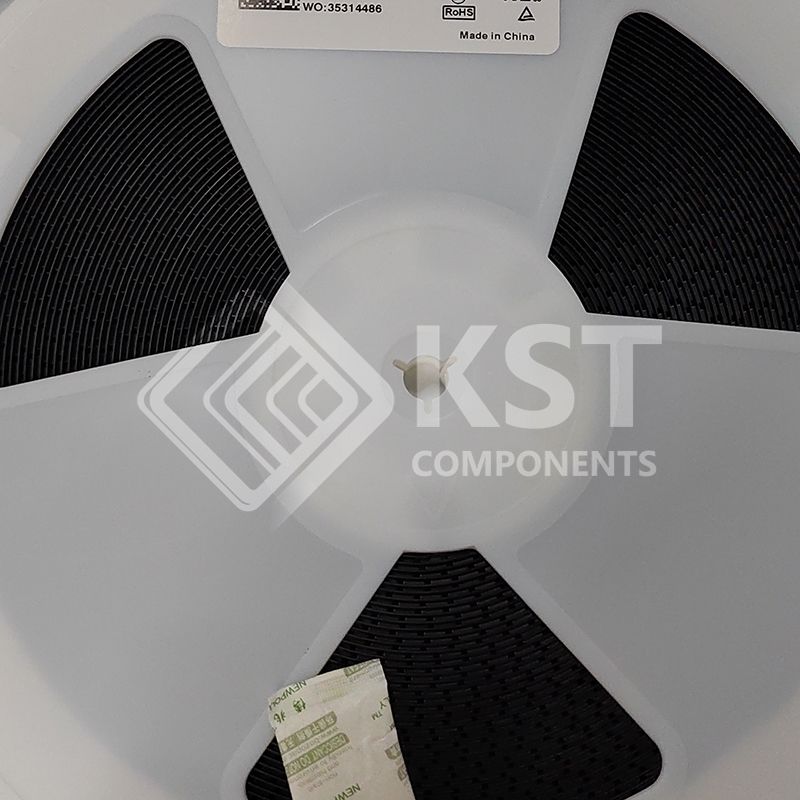

Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Type |
Polymeric
|
|
|
Voltage - Max |
24V
|
|
|
Current - Hold (Ih) (Max) |
3 A
|
|
|
Current - Trip (It) |
5.2 A
|
|
|
Current - Max |
20 A
|
|
|
Time to Trip |
5 s
|
|
|
Resistance - Initial (Ri) (Min) |
20 mOhms
|
|
|
Resistance - Post Trip (R1) (Max) |
75 mOhms
|
|
|
Operating Temperature |
-40°C ~ 85°C
|
|
|
Grade |
Automotive
|
|
|
Qualification |
AEC-Q200
|
|
|
Ratings |
-
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |
2920 (7351 Metric), Concave
|
|
|
Size / Dimension |
0.289" L x 0.202" W (7.36mm x 5.12mm)
|
|
|
Height - Seated (Max) |
-
|
|
|
Thickness (Max) |
0.063" (1.60mm)
|
|
|
Lead Spacing |
-
|
|
|
Approval Agency |
cURus, TUV
|
|
|
Base Product Number |
MF-LSMF |
