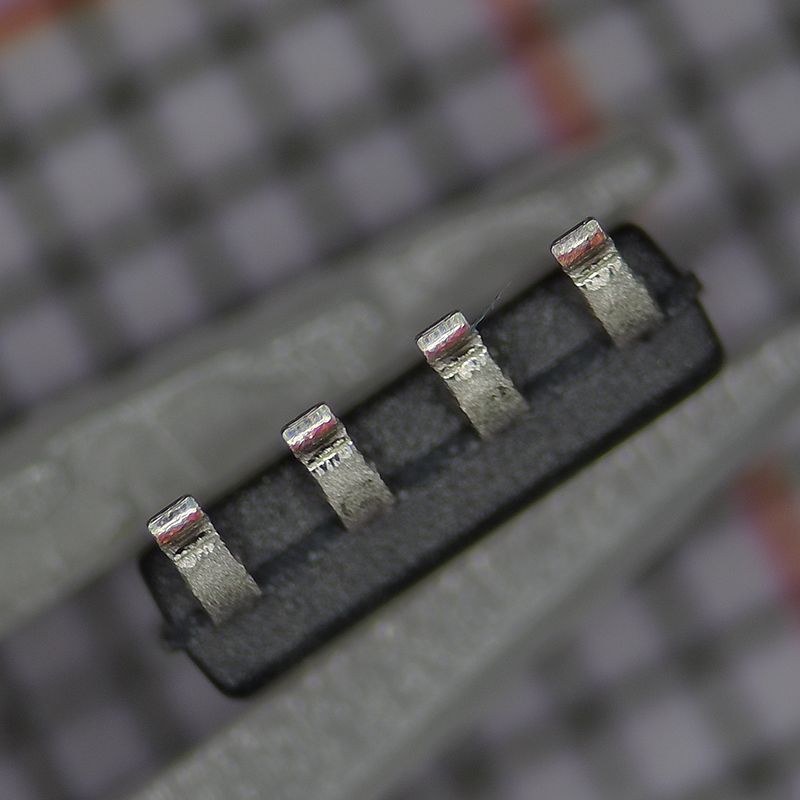

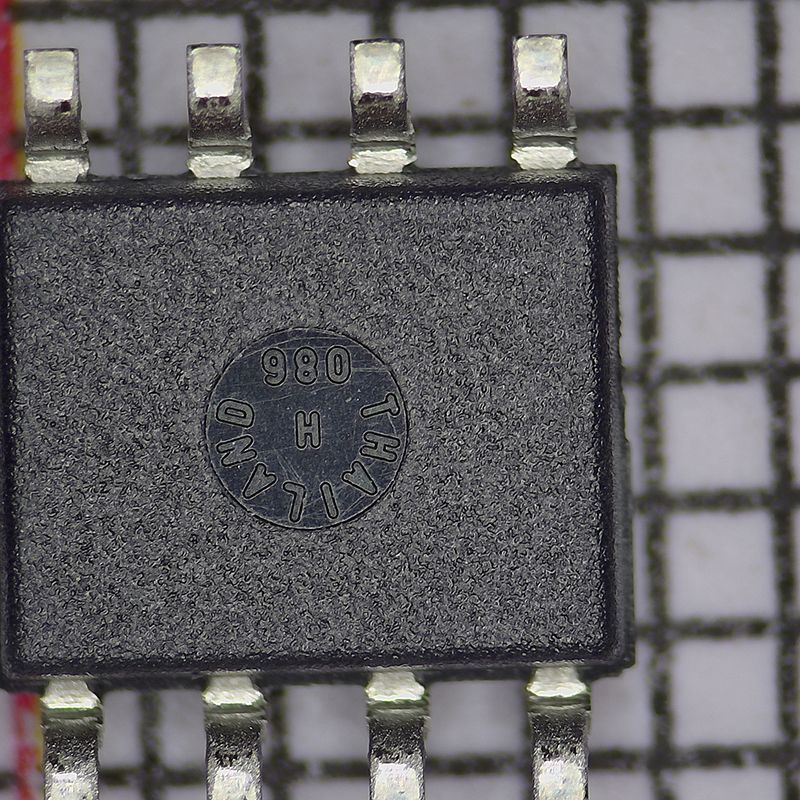

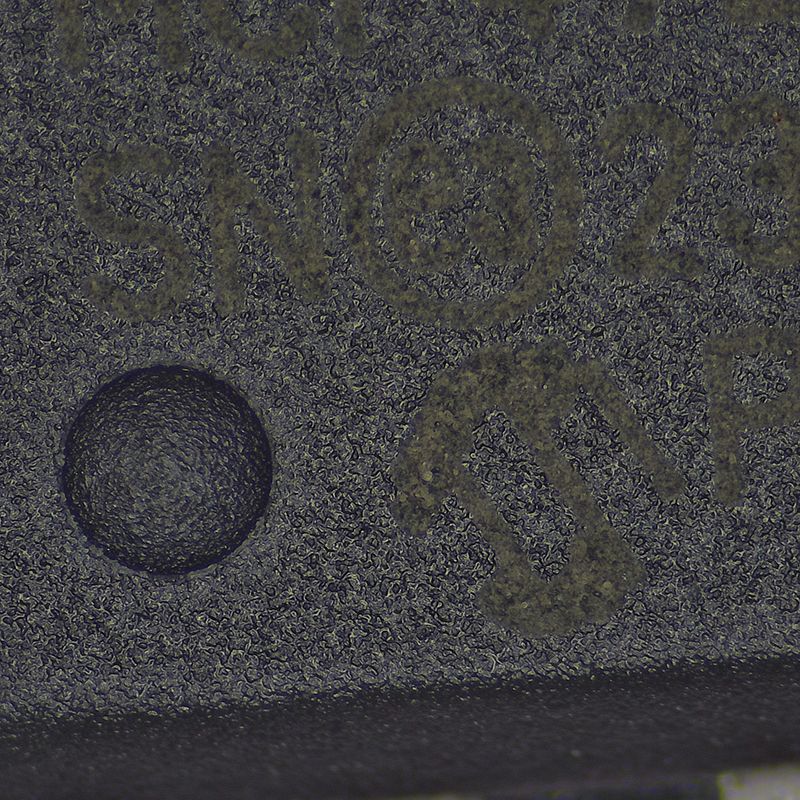

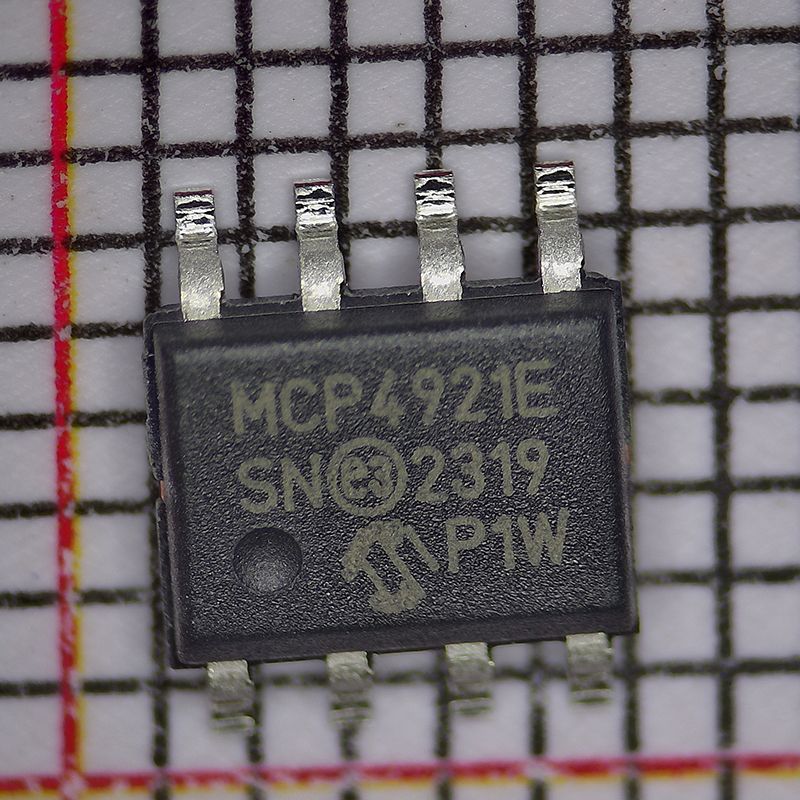

MCP4921-E/SN
Part Number:
MCP4921-E/SN
Product Classification:
Isolation Transformers and Autotransformers, Step Up, Step Down
Manufacturer:
3RLab
Description:
IC DAC 12BIT V-OUT 8SOIC
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Integrated Circuits (ICs)
Data Acquisition
Digital to Analog Converters (DAC)
|
|
|
Manufacturer |
Microchip Technology
|
|
|
Series |
-
|
|
|

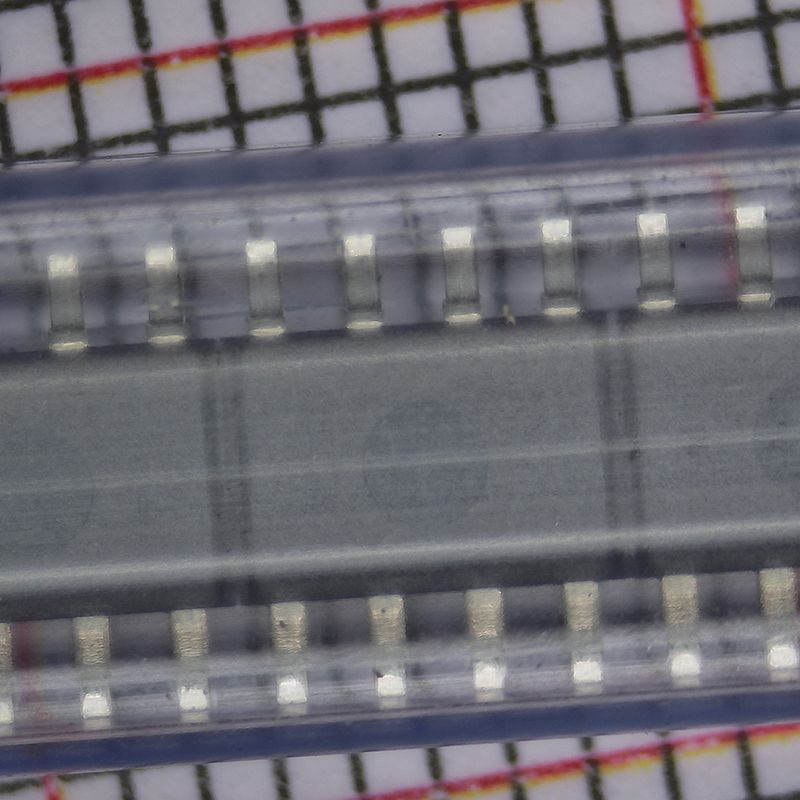

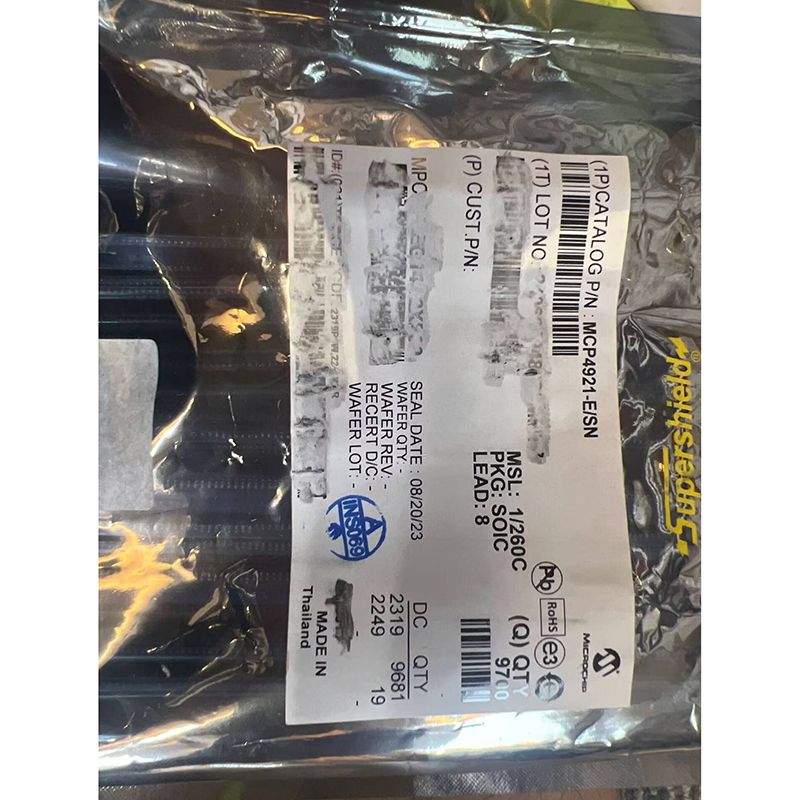

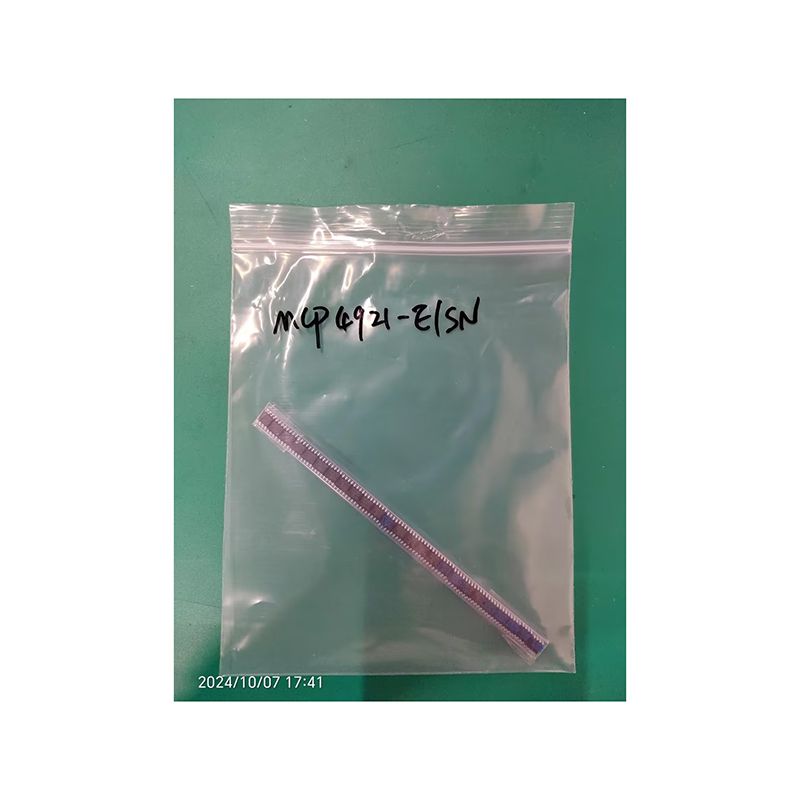

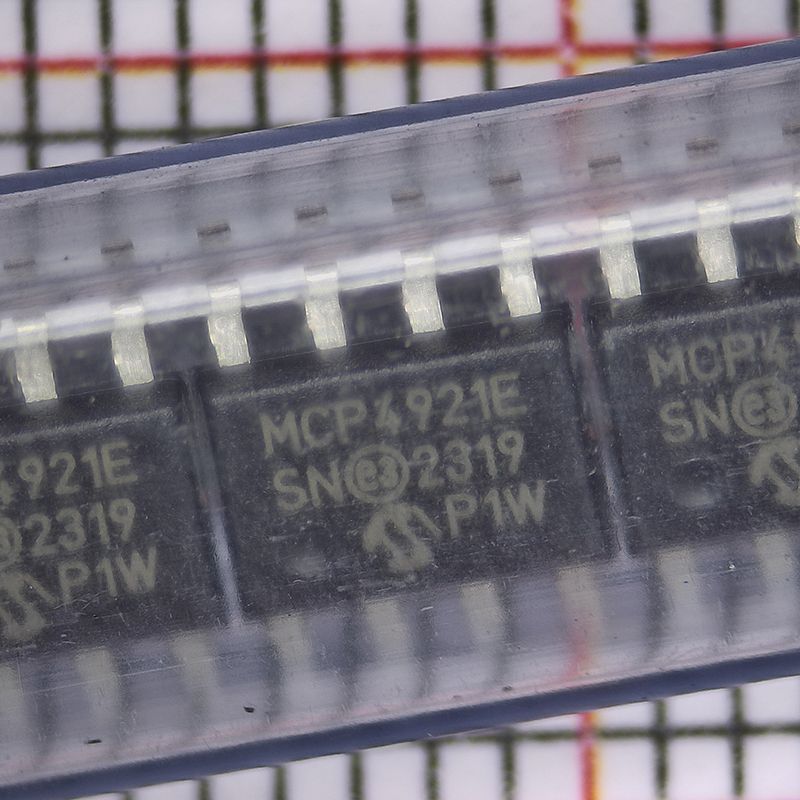

Packaging |
Tube
|
|
|
Part Status |
Active
|
|
|
DigiKey Programmable |
Not Verified
|
|
|
Number of Bits |
12
|
|
|
Number of D/A Converters |
1
|
|
|
Settling Time |
4.5µs (Typ)
|
|
|
Output Type |
Voltage - Buffered
|
|
|
Differential Output |
No
|
|
|
Data Interface |
SPI
|
|
|
Reference Type |
External
|
|
|
Voltage - Supply, Analog |
2.7V ~ 5.5V
|
|
|
Voltage - Supply, Digital |
2.7V ~ 5.5V
|
|
|
INL/DNL (LSB) |
±4, ±0.25
|
|
|
Architecture |
String DAC
|
|
|
Operating Temperature |
-40°C ~ 125°C
|
|
|
Package / Case |
8-SOIC (0.154", 3.90mm Width)
|
|
|
Supplier Device Package |
8-SOIC
|
|
|
Mounting Type |
Surface Mount
|
|
|
Base Product Number |
MCP4921 |
