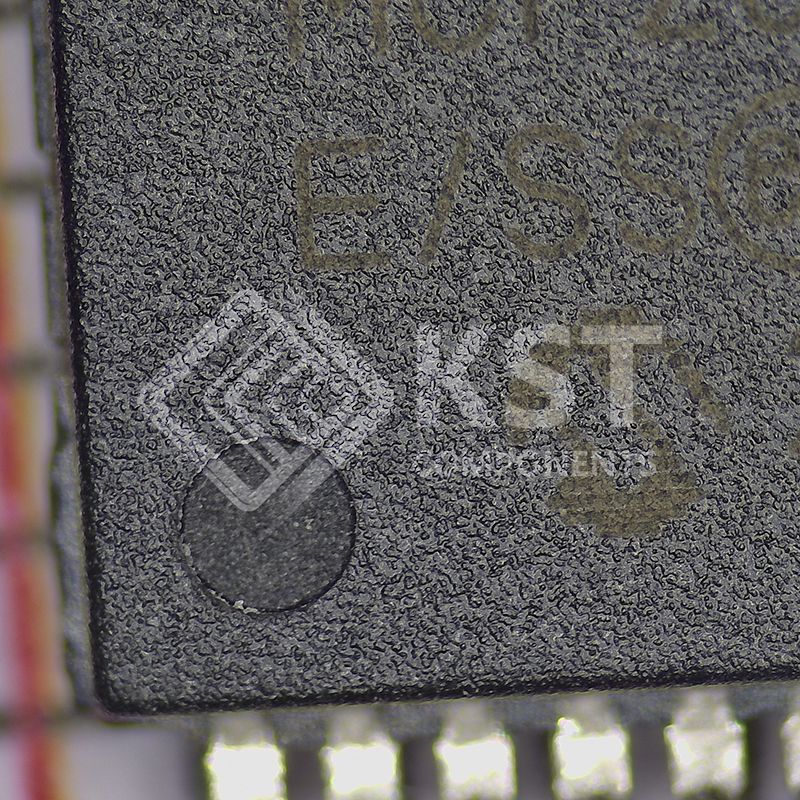

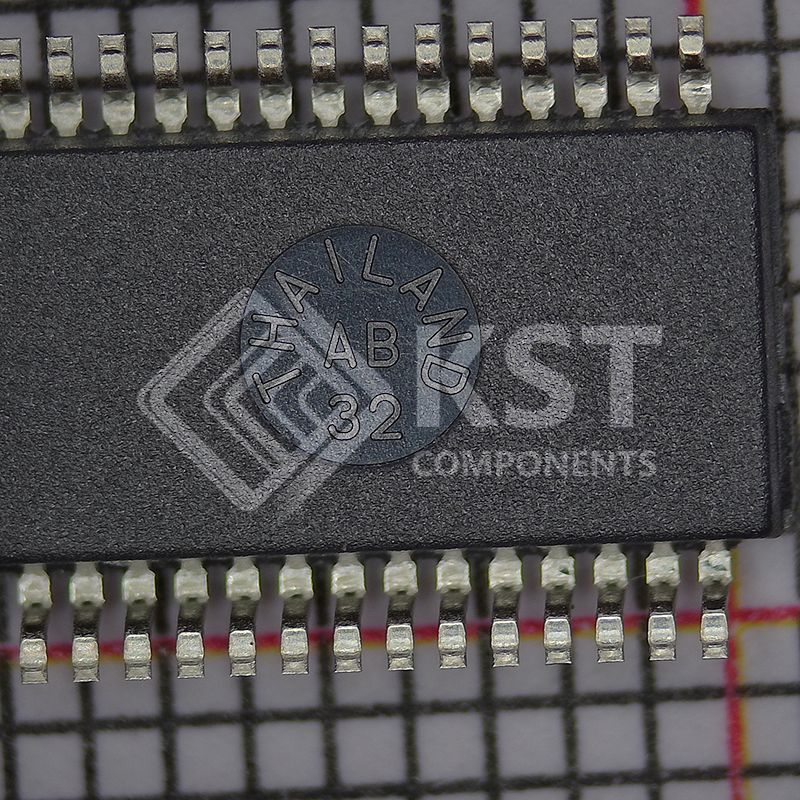

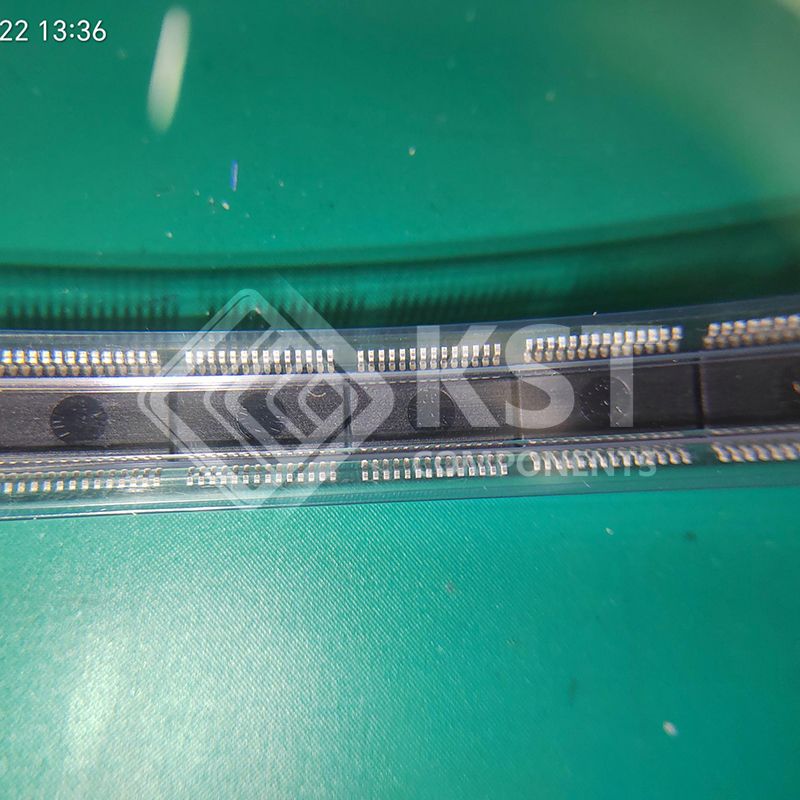

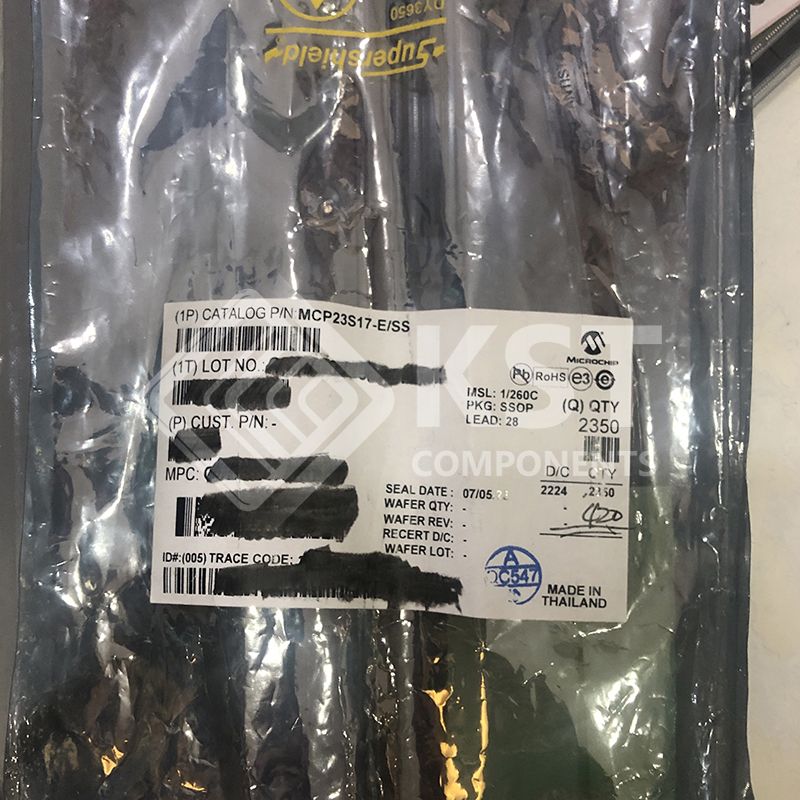

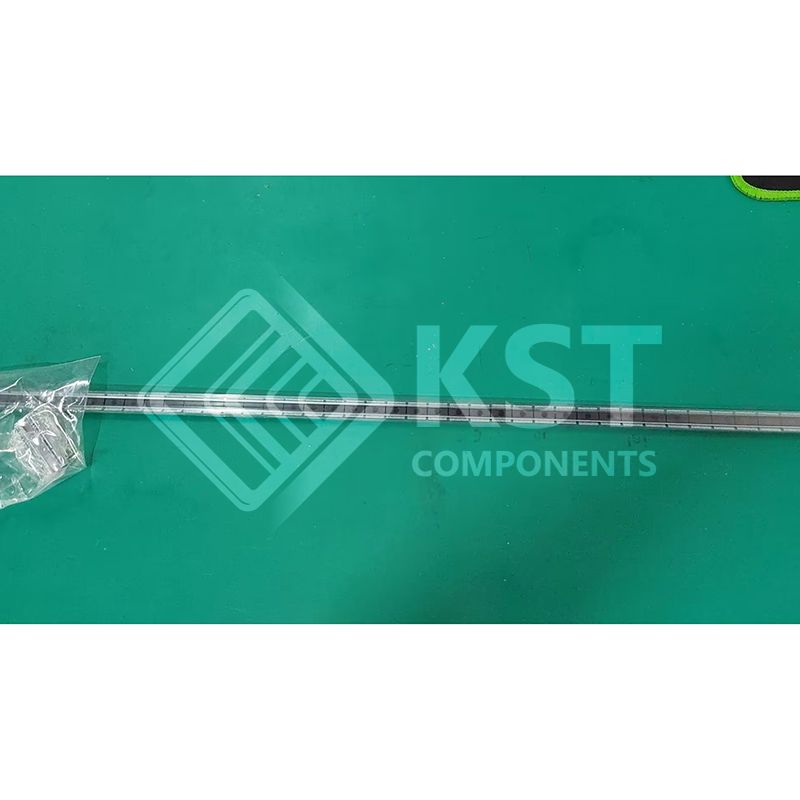

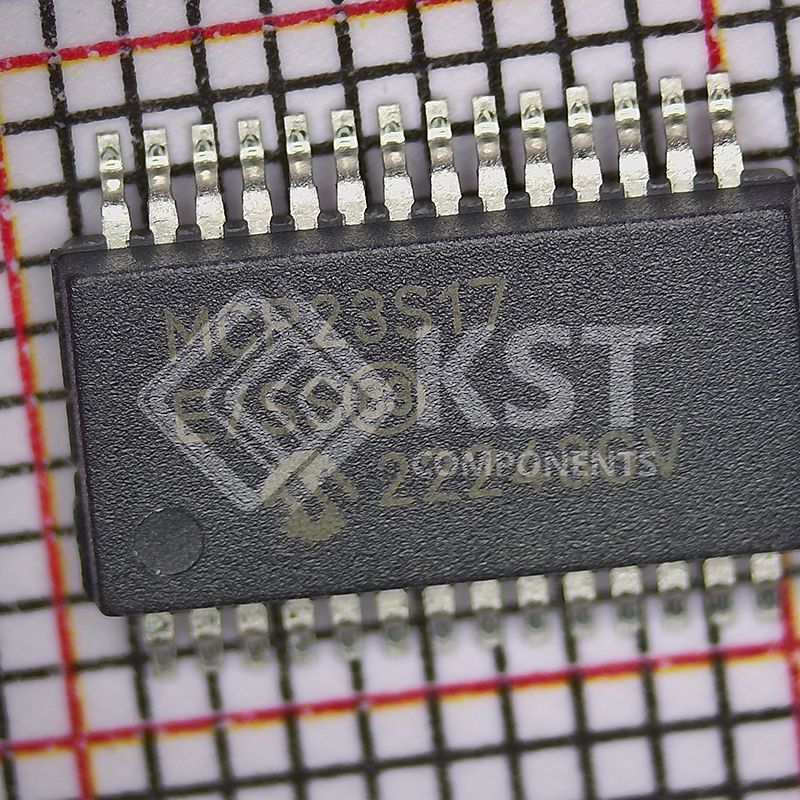

MCP23S17-ESS
Part Number:
MCP23S17-ESS
Product Classification:
Punchdown, Blades
Manufacturer:
3RLab
Description:
IC XPNDR 10MHZ SPI 28SSOP
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Integrated Circuits (ICs)
Interface
I/O Expanders
|
|
|
Manufacturer |
Microchip Technology
|
|
|
Series |
-
|
|
|
Packaging |
Tube
|
|
|
Part Status |
Active
|
|
|
DigiKey Programmable |
Not Verified
|
|
|
Number of I/O |
16
|
|
|
Interface |
SPI
|
|
|
Interrupt Output |
Yes
|
|
|
Features |
POR
|
|
|
Output Type |
Push-Pull
|
|
|
Current - Output Source/Sink |
25mA
|
|
|
Clock Frequency |
10 MHz
|
|
|
Voltage - Supply |
1.8V ~ 5.5V
|
|
|
Operating Temperature |
-40°C ~ 125°C
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |
28-SSOP (0.209", 5.30mm Width)
|
|
|
Supplier Device Package |
28-SSOP
|
|
|
Base Product Number |
MCP23S17 |
