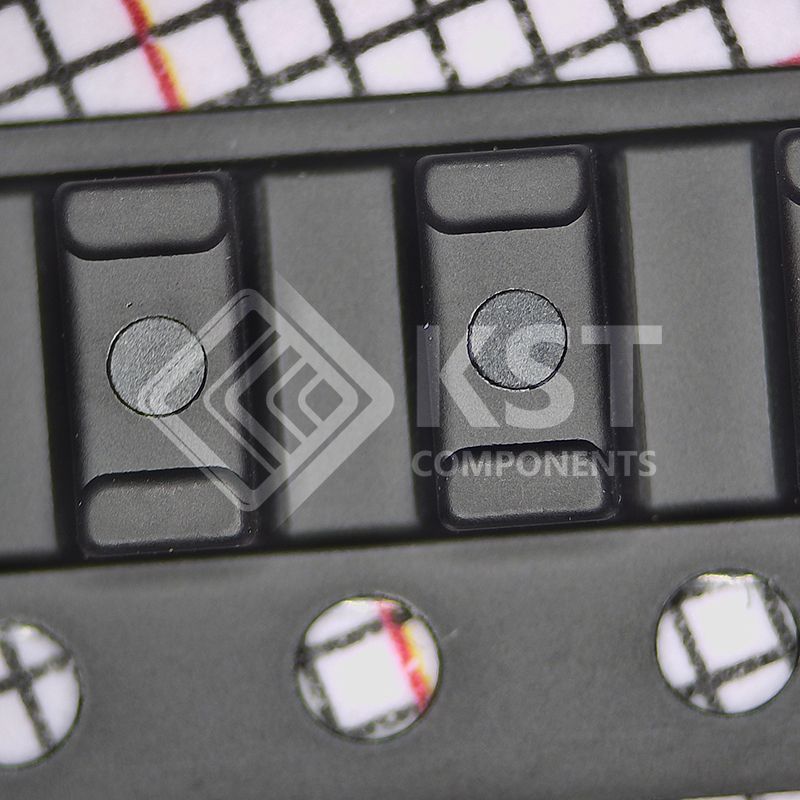

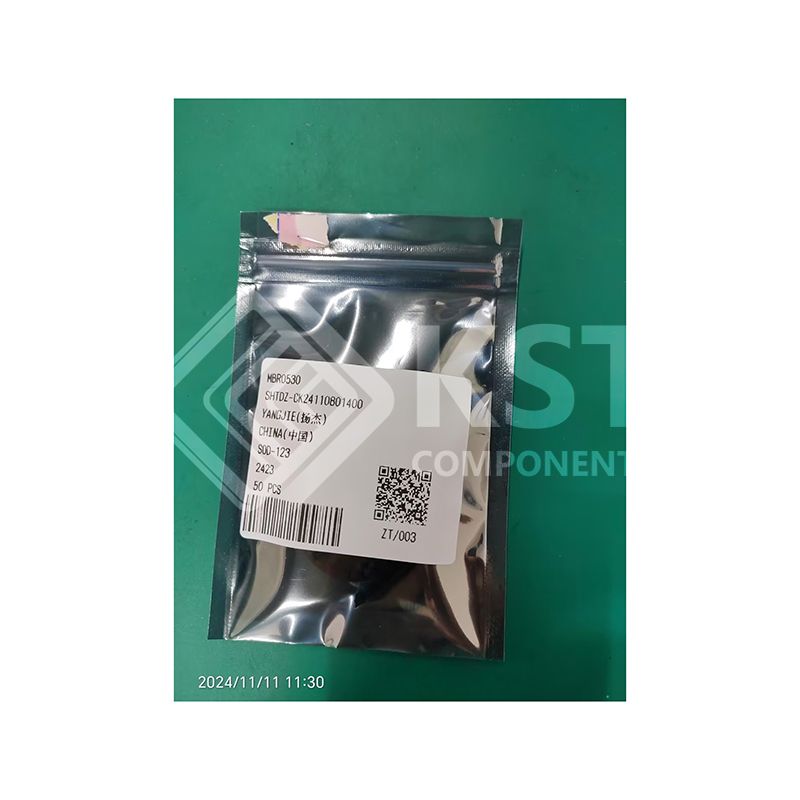

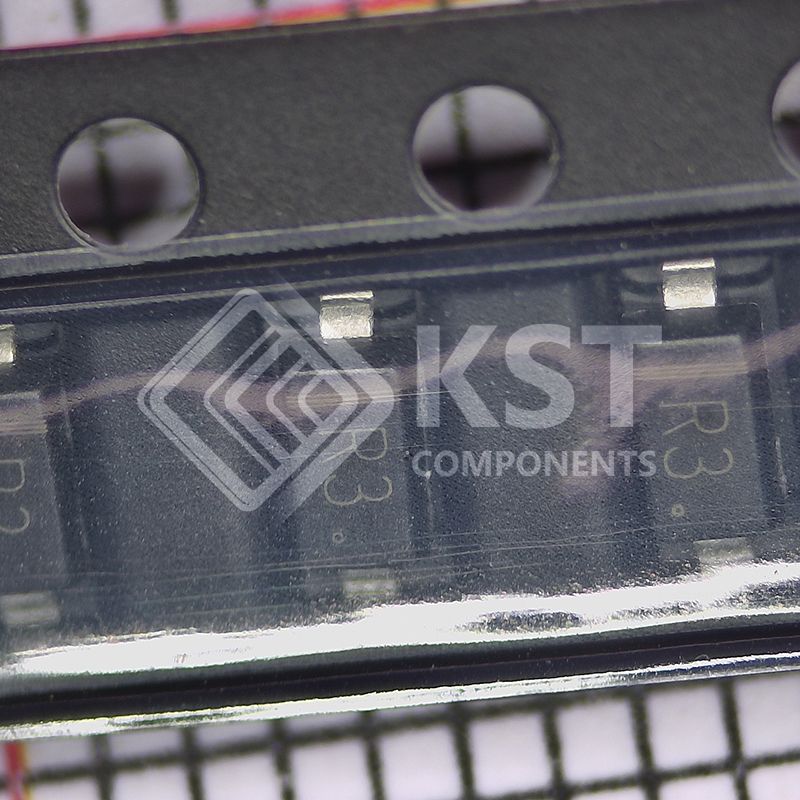

MBR0530
Part Number:
MBR0530
Product Classification:
Toggle Switches
Manufacturer:
Sensata Technologies – Airpax
Description:
DIODE SCHOTTKY 30V 500MA SOD123
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Discrete Semiconductor Products
Diodes
Rectifiers
Single Diodes
|
|
|
Mfr |
SMC Diode Solutions |
|
|
Series |
-
|
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Technology |
Schottky |
|
|
Voltage - DC Reverse (Vr) (Max) |
30 V
|
|
|
Current - Average Rectified (Io) |
500mA
|
|
|
Voltage - Forward (Vf) (Max) @ If |
430 mV @ 500 mA
|
|
|
Speed |
Fast Recovery =< 500ns, > 200mA (Io)
|
|
|
Current - Reverse Leakage @ Vr |
130 µA @ 30 V
|
|
|
Capacitance @ Vr, F |
170pF @ 0V, 1MHz
|
|
|
Mounting Type |
Surface Mount |
|
|
Package / Case |
SOD-123 |
|
|
Supplier Device Package |
SOD-123
|
|
|
Operating Temperature - Junction |
-65°C ~ 150°C
|
