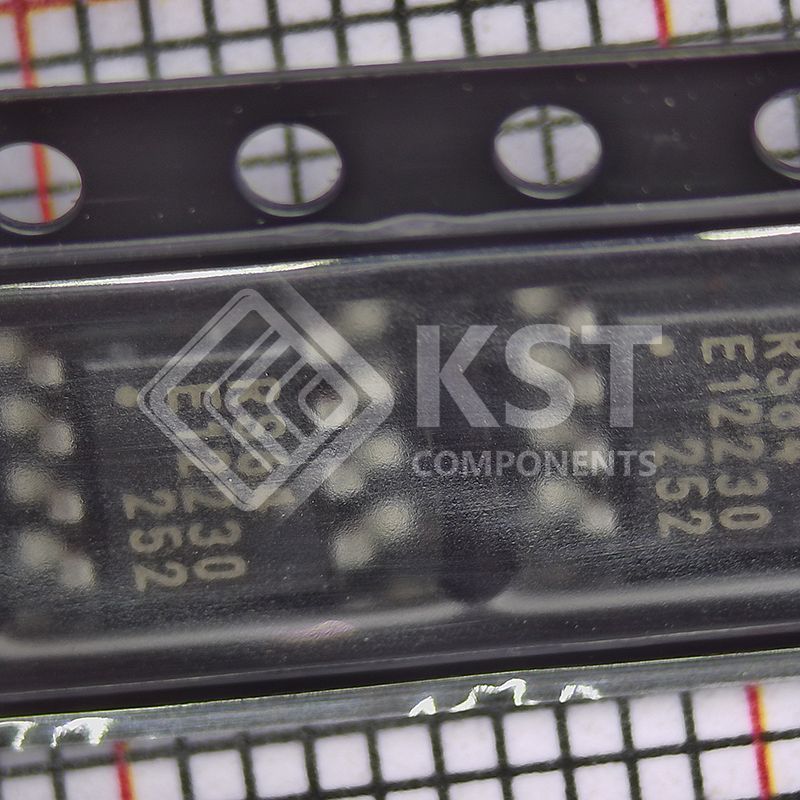

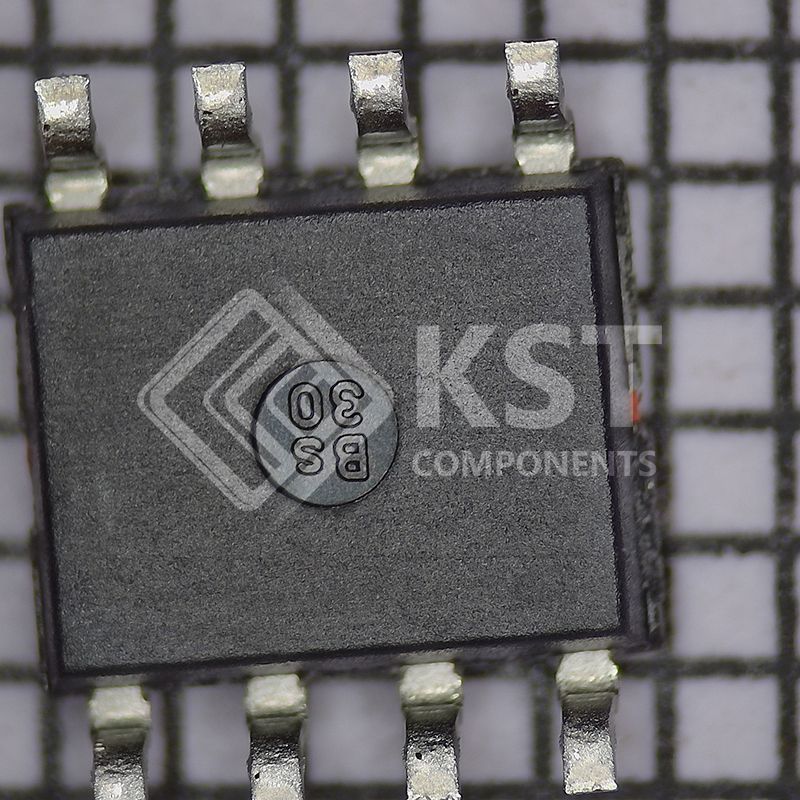

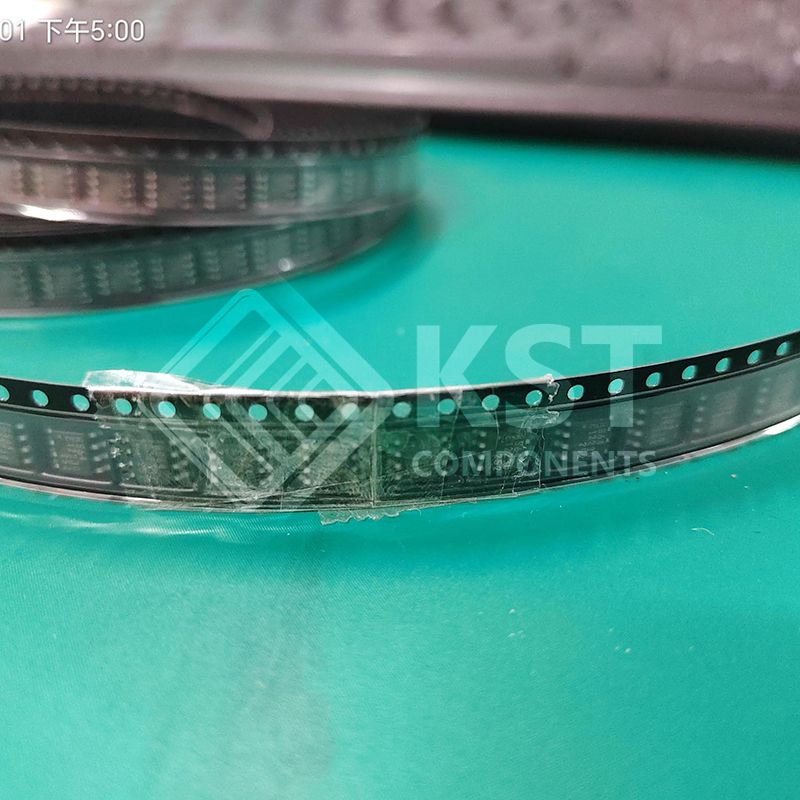

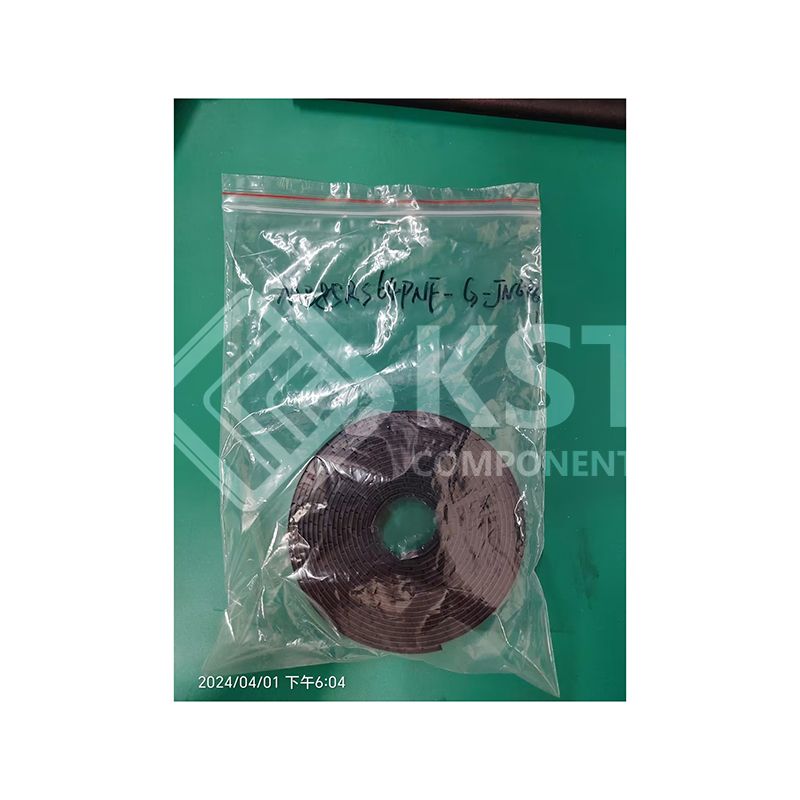

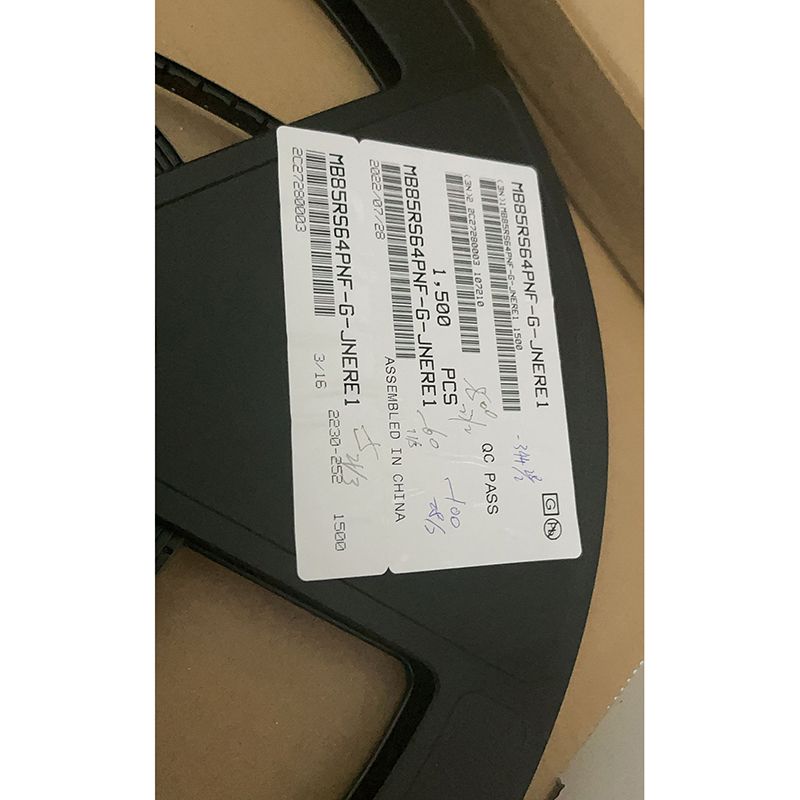

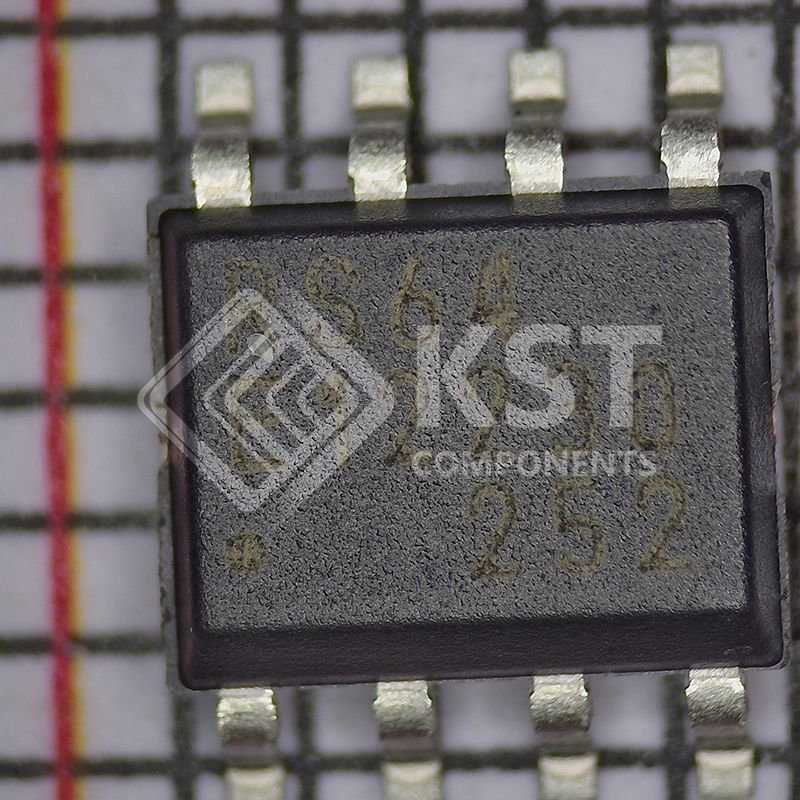

MB85RS64PNF-G-JNERE1
Part Number:
MB85RS64PNF-G-JNERE1
Product Classification:
Current Sense Transformers
Manufacturer:
ATGBICS
Description:
FRAM (Ferroelectric RAM) Memory IC 64Kbit SPI 20 MHz 8-SOP
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
• Bit configuration : 8,192 words 8 bits
• Serial Peripheral Interface : SPI (Serial Peripheral Interface)
Correspondent to SPI mode 0 (0, 0) and mode 3 (1, 1)
• Operating frequency : 20 MHz (Max)
• High endurance : 10 Billion Read/writes
• Data retention : 10 years (+85 C)
• Operating power supply voltage : 2.7 V to 3.6 V
• Low power consumption : Operating power supply current 1.5(TBD)mA (Typ@20 MHz)
Standby current 10 A(TBD) (Typ)
• Operation ambient temperature range : 40 C to +85 C
• Package : 8-pin plastic SOP (FPT-8P-M02) RoHS compliant
