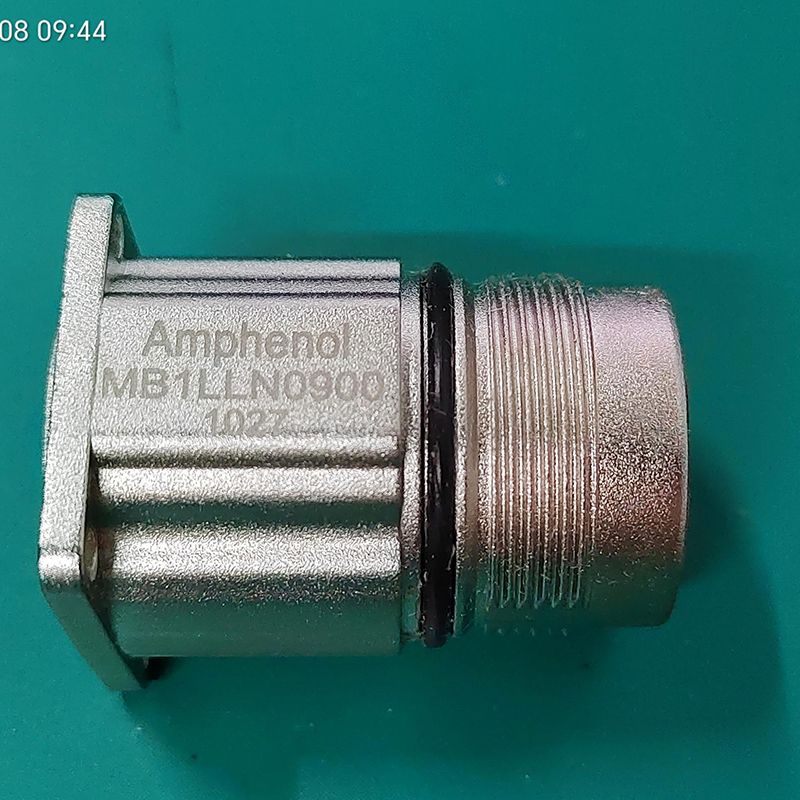

MB1LLN0900
Part Number:
MB1LLN0900
Product Classification:
LED Lighting Kits
Manufacturer:
BizAutom
Description:
CONN RCPT HSNG MALE 9POS PNL MT
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Connectors, Interconnects
Circular Connectors
Circular Connector Housings
|
|
|
Manufacturer |
Amphenol Sine Systems Corp
|
|
|
Series |
MotionGrade™ M23 Power Standard Series, Threaded |
|
|
Packaging |
Bulk
|
|
|
Part Status |
Active
|
|
|

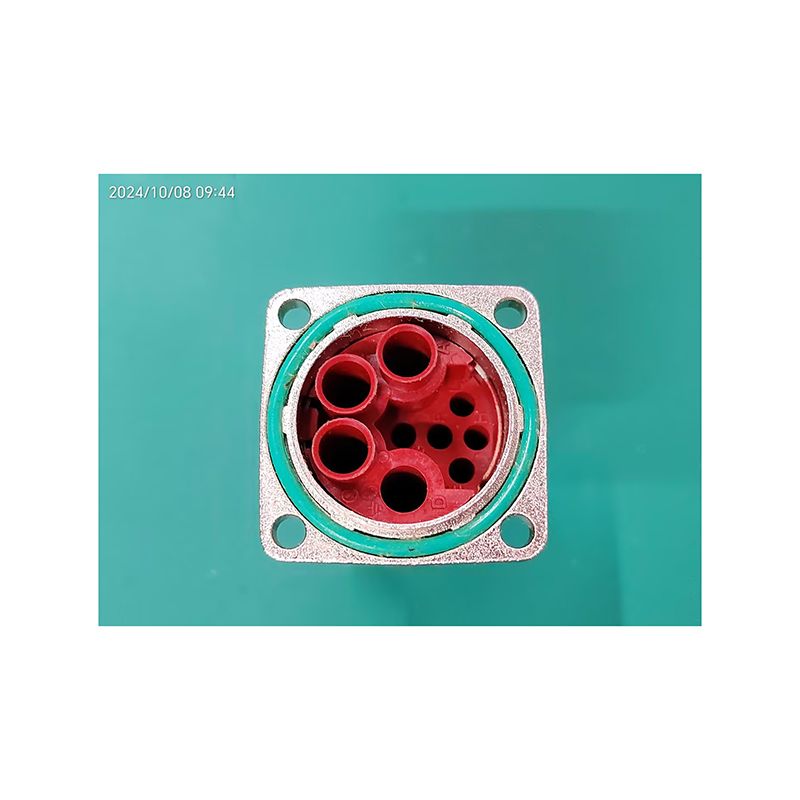

Connector Type |
Receptacle Housing
|
|
|
Type |
For Male Pins
|
|
|
Number of Positions |
9 (5 + 3 Power + PE)
|
|
|
Shell Size - Insert |
M23-9
|
|
|
Shell Size, MIL |
-
|
|
|
Contact Type |
Crimp
|
|
|
Contact Size |
1.0mm (5), 2.0mm (4)
|
|
|
Mounting Type |
Panel Mount
|
|
|
Mounting Feature |
Flange
|
|
|
Fastening Type |
Threaded
|
|
|
Orientation |
Keyed
|
|
|
Shell Material |
Zinc Die Cast
|
|
|
Shell Finish |
Nickel
|
|
|
Housing Color |
Silver
|
|
|
Ingress Protection |
IP67 - Dust Tight, Waterproof
|
|
|
Material Flammability Rating |
UL94 V-0
|
|
|
Features |
-
|
|
|
Shielding |
Shielded
|
|
|
Note |
Contacts Not Included
|
|
|
Includes |
-
|
|
|
Insert Material |
Polyamide (PA66), Nylon 6/6
|
|
|
Contact Shape |
Circular
|
|
|
Operating Temperature |
-20°C ~ 130°C
|
|
|
Base Product Number |
MB1LLN |
