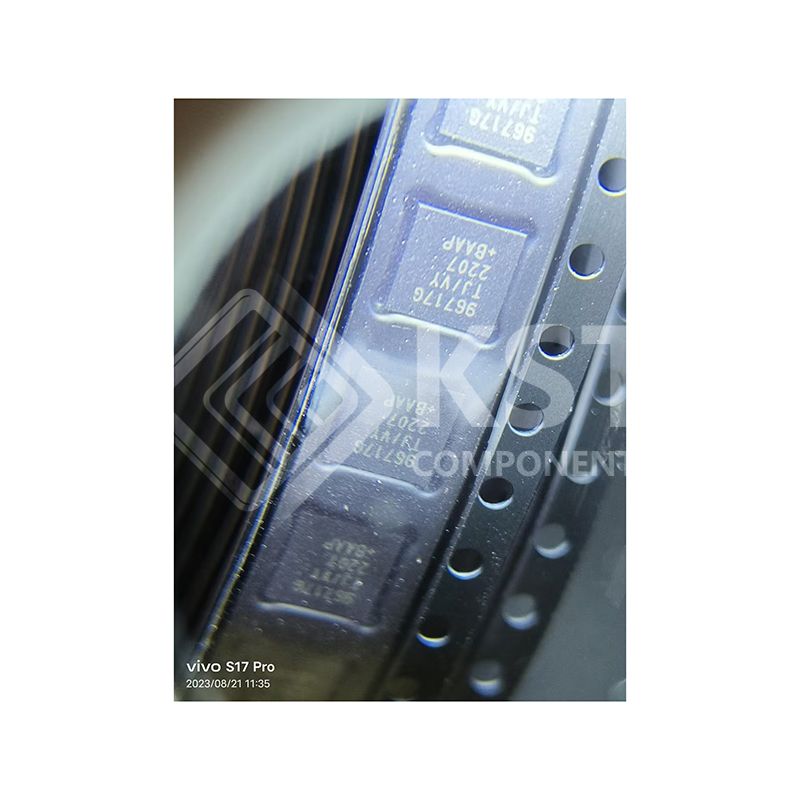

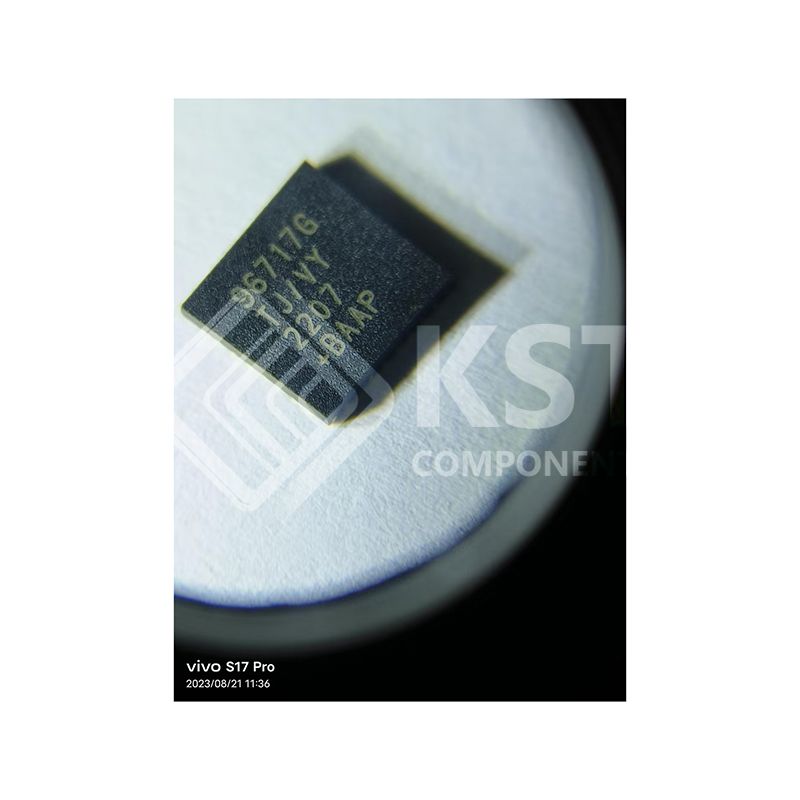

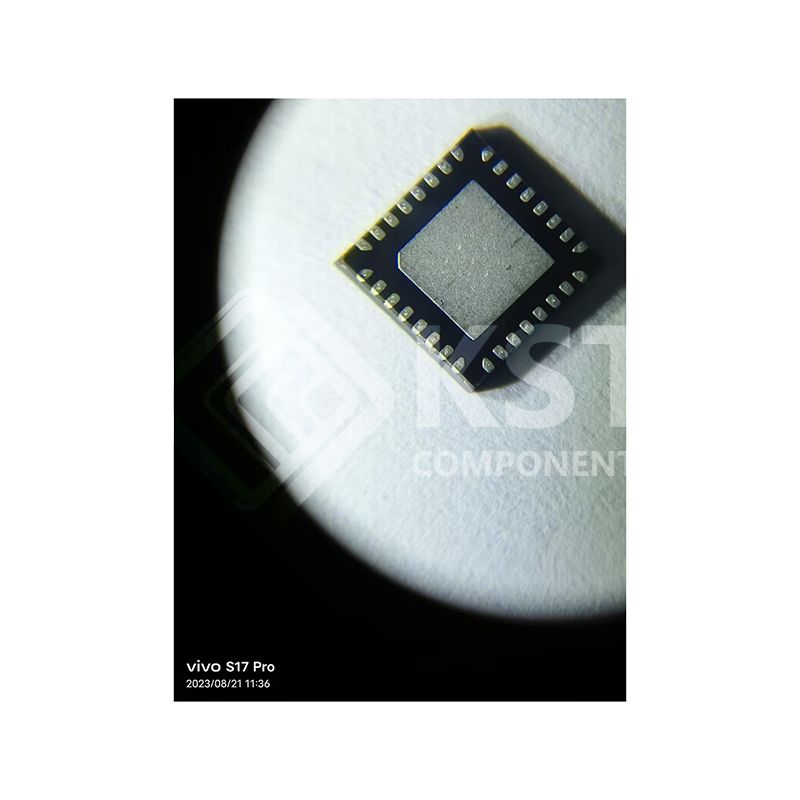

MAX96717GTJ/VY+T

● Automotive Grade High Speed Link • -21.0dB at 3GHz (6Gbps) Max Insertion Loss • -19.5dB at 1.5GHz (3Gbps) Max Insertion Loss • Auto Adapt for Changes in Channel Conditions • Operates at -40°C to +105°C Ambient ● Four-Lane MIPI CSI-2 v1.3 Input Port • MIPI D-PHY v1.2 Receivers rated at 2.5Gbps per Lane • Supports any CSI-2 Data Type in Tunneling Mode • Cyclic Redundancy Check (CRC), and Error Correction Code (ECC) • 16 Virtual Channels • Polarity Flip and Data Lane Reassignment ● Full-Duplex Communication Over a Single Wire ● 3Gbps or 6Gbps Forward-Link Rates, and 187.5Mbps Reverse-Link Rate ● ASIL-B Compliant • End-to-End Data Integrity through CRC in Tunneling Mode • R-S Forward-Error Correction (FEC) for Protection of Forward Video and Control-Channel Data • CRC Protection of Side-Channel and Video Data • Power-on Self Test ● Concurrent Side Channel for Device Configuration and Communication with Peripherals • I 2C/UART, Pass-Through I2C/UART, SPI, GPIO, and Register-Programmable GPIO ● Crystal-Free Operation Using Reference Over Reverse (RoR) Clocking ● Reference Clock Output for Image Sensor ● Built-in ADC and Temperature Sensor ● Compact 5mm x 5mm TQFN Side-Wettable Package with 0.5mm Pitch
