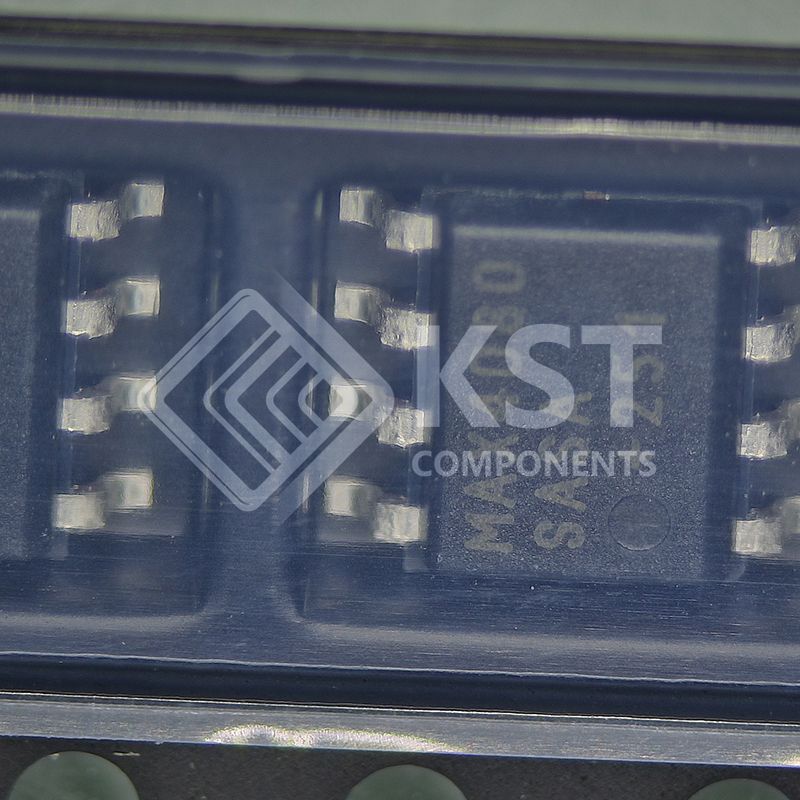

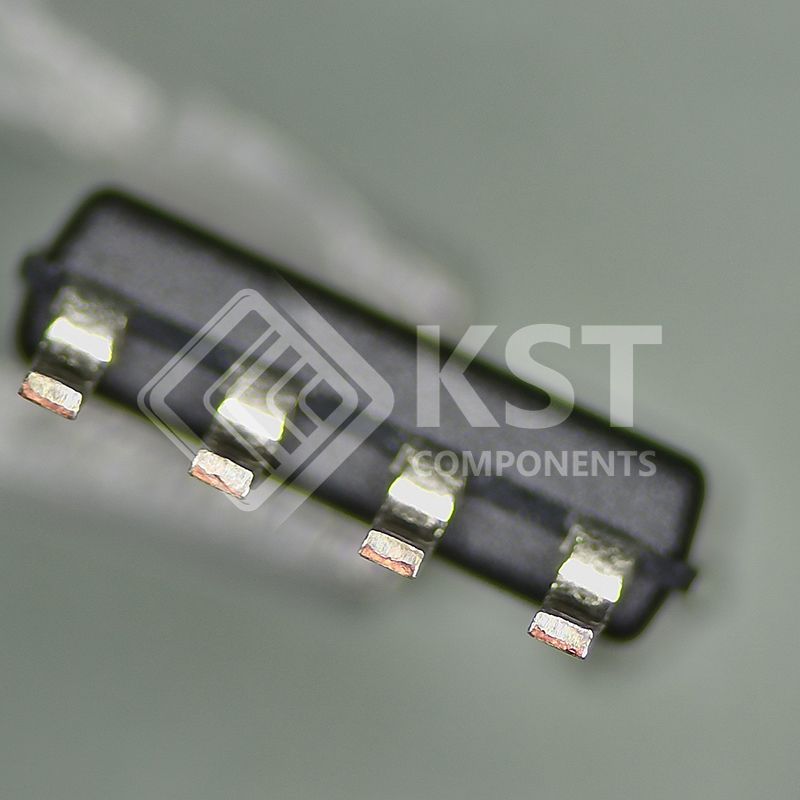

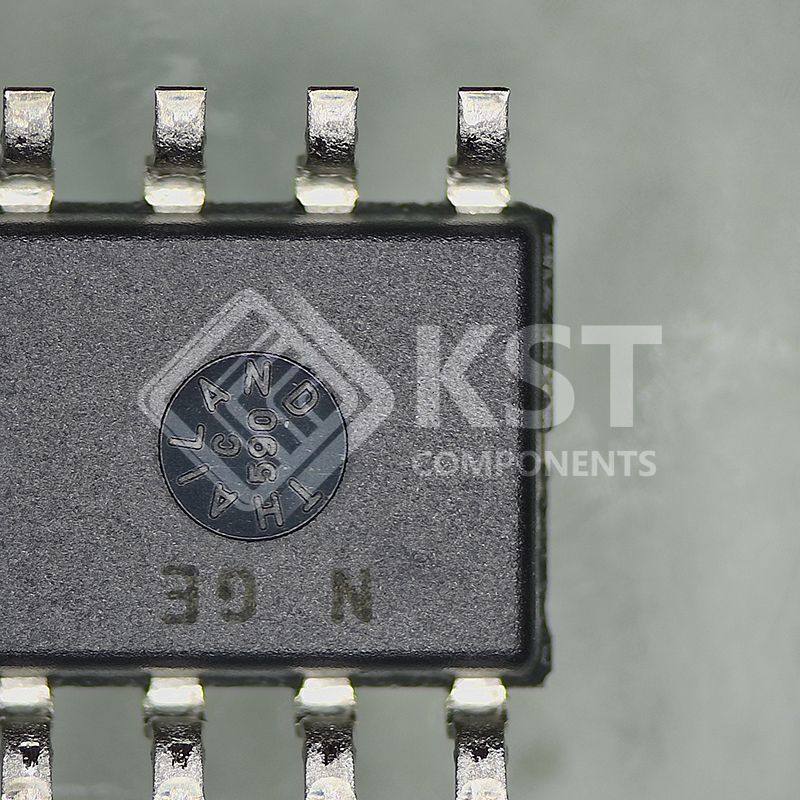

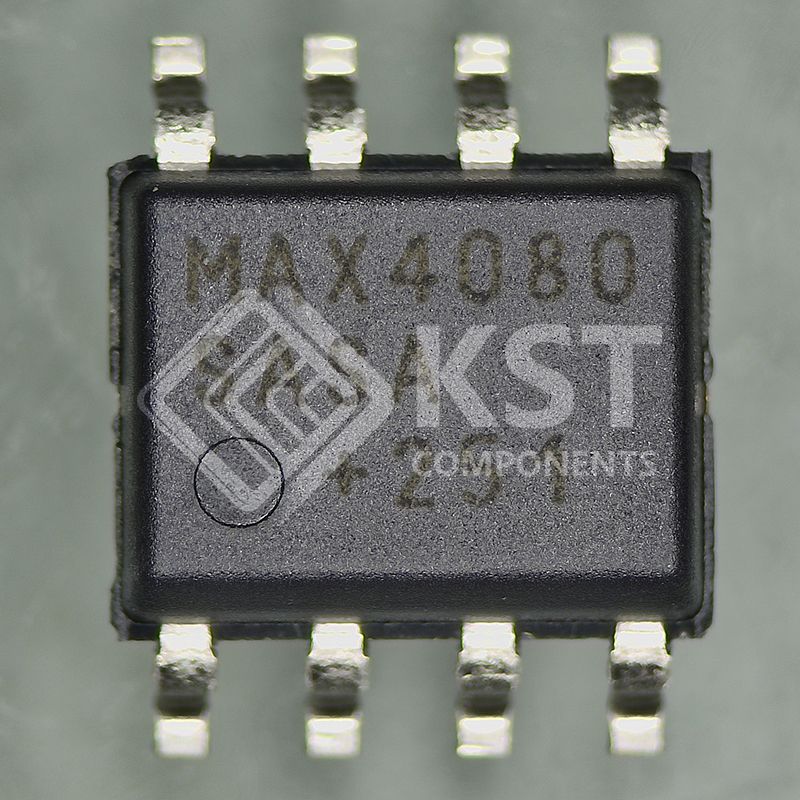

MAX4080SASA+T

● Ideal for High-Voltage Current Monitoring Applications
• Wide 4.5V to 76V Input Common-Mode Range
• Independent Operating Supply Voltage
● High Accuracy and Low Quiescent Current Support
Precision Application Requirements
• ±0.1% Full-Scale Accuracy
• Low 100μV Input Offset Voltage
• Three Gain Versions Available
- 5V/V (MAX4080F/MAX4081F)
- 20V/V (MAX4080T/MAX4081T)
- 60V/V (MAX4080S/MAX4081S)
• 75μA Supply Current (MAX4080)
● Flexible Current Sensing Supports Monitoring of
Charge and Discharge of Batteries
• Bidirectional (MAX4081) or Unidirectional
(MAX4080) ISENSE
• Reference Input for Bidirectional OUT (MAX4081)
● Minimizes Required Board Space
• 8-Pin μMAX Package
