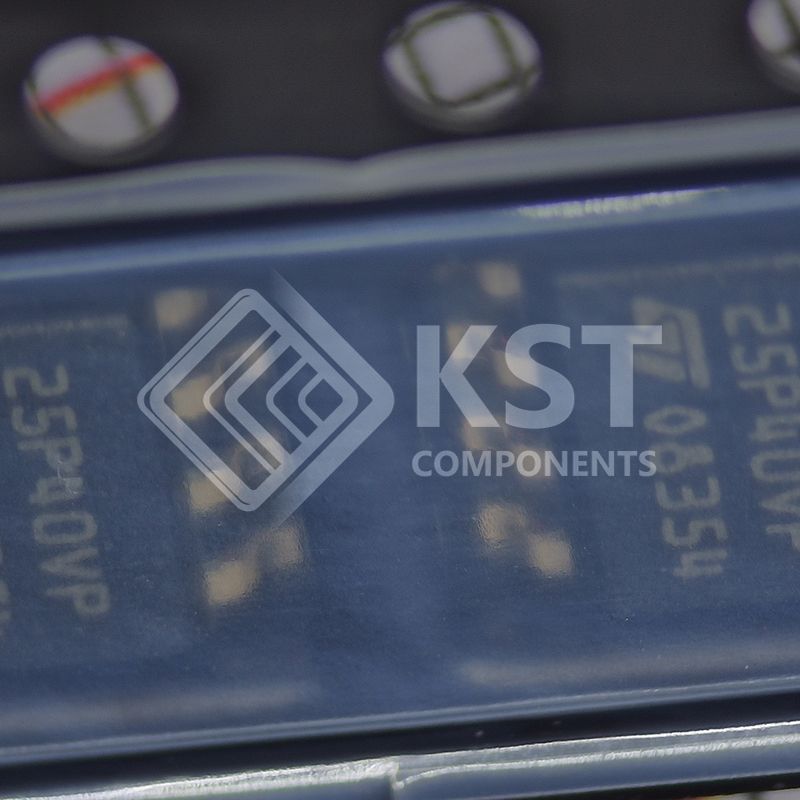

M25P40-VMN6TPB

„ 4 Mbit of Flash memory
„ 2.3 V to 3.6 V single supply voltage
„ SPI bus compatible serial interface
„ 75 MHz clock rate (maximum)
„ Page Program (up to 256 bytes) in 0.8 ms
(typical)
„ Sector Erase (512 Kbit) in 0.6 s (typical)
„ Bulk Erase (4 Mbit) in 4.5 s (typical)
„ Deep Power-down mode 1 µA (typical)
„ Hardware Write Protection: protected area
size defined by three non-volatile bits (BP0,
BP1 and BP2)
„ Electronic signatures
– JEDEC standard two-byte signature
(2013h)
– Unique ID code (UID) with 16 bytes readonly, available upon customer request
– RES instruction, one-byte, signature (12h),
for backward compatibility
„ Packages
– RoHS compliant
„ Automotive grade parts available
