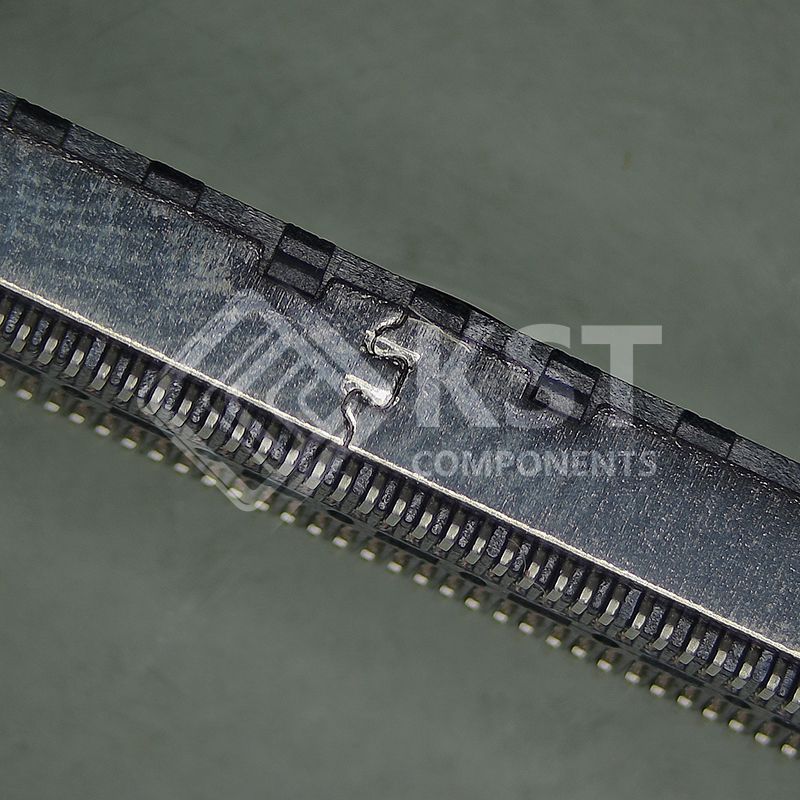

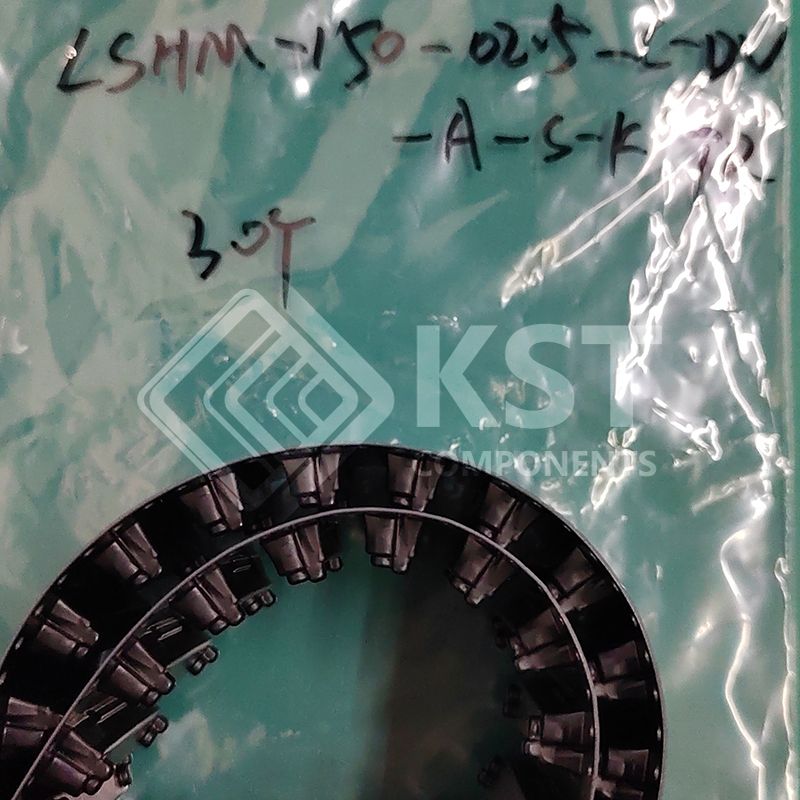

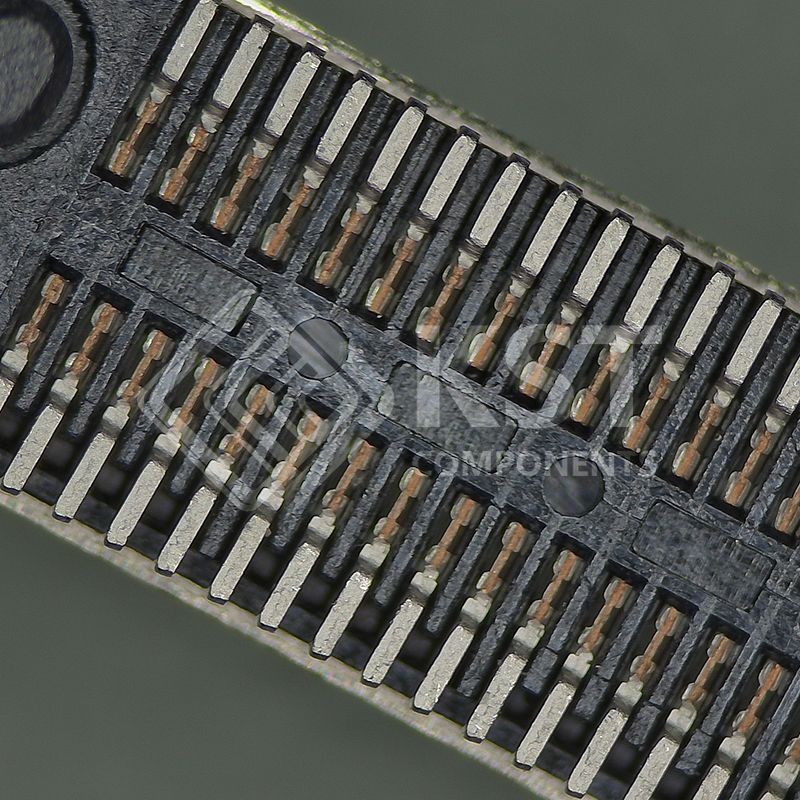

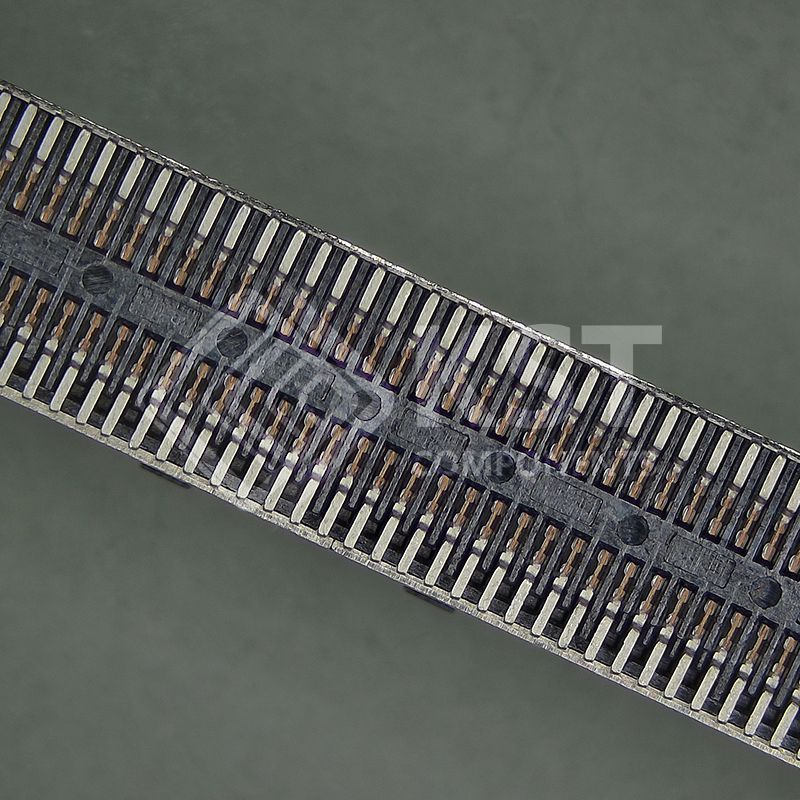

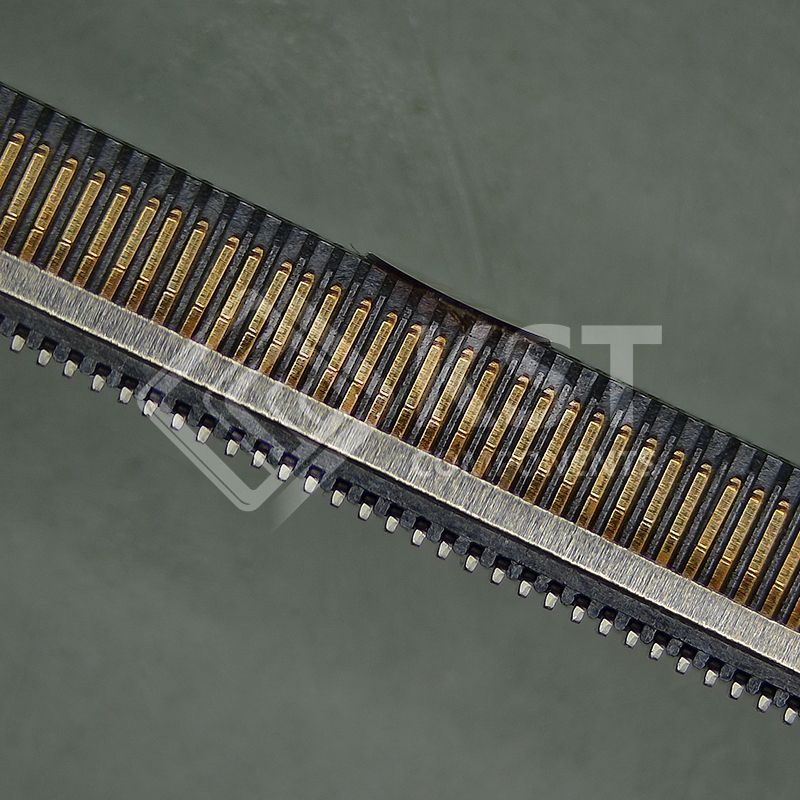

LSHM-150-02.5-L-DV-A-S-K-TR
Part Number:
LSHM-150-02.5-L-DV-A-S-K-TR
Product Classification:
Excavators, Hooks, Picks, Probes, Tuning Tools
Manufacturer:
3DXTECH
Description:
CONN SELF-MATE 100POS SMD GOLD
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Connectors, Interconnects
Rectangular Connectors
Arrays, Edge Type, Mezzanine (Board to Board)
|
|
|
Manufacturer |
Samtec Inc.
|
|
|
Series |
Razor Beam™ LSHM |
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Connector Type |
Self Mating, Non-Gendered, Hermaphroditic
|
|
|
Number of Positions |
100
|
|
|
Pitch |
0.020" (0.50mm)
|
|
|
Number of Rows |
2
|
|
|
Mounting Type |
Surface Mount
|
|
|
Features |
Board Guide, Pick and Place, Shielded
|
|
|
Contact Finish |
Gold
|
|
|
Contact Finish Thickness |
10.0µin (0.25µm)
|
|
|
Mated Stacking Heights |
5mm, 5.5mm, 6.5mm, 8.5mm
|
|
|
Height Above Board |
0.156" (3.96mm)
|
|
|
Base Product Number |
LSHM-150 |
