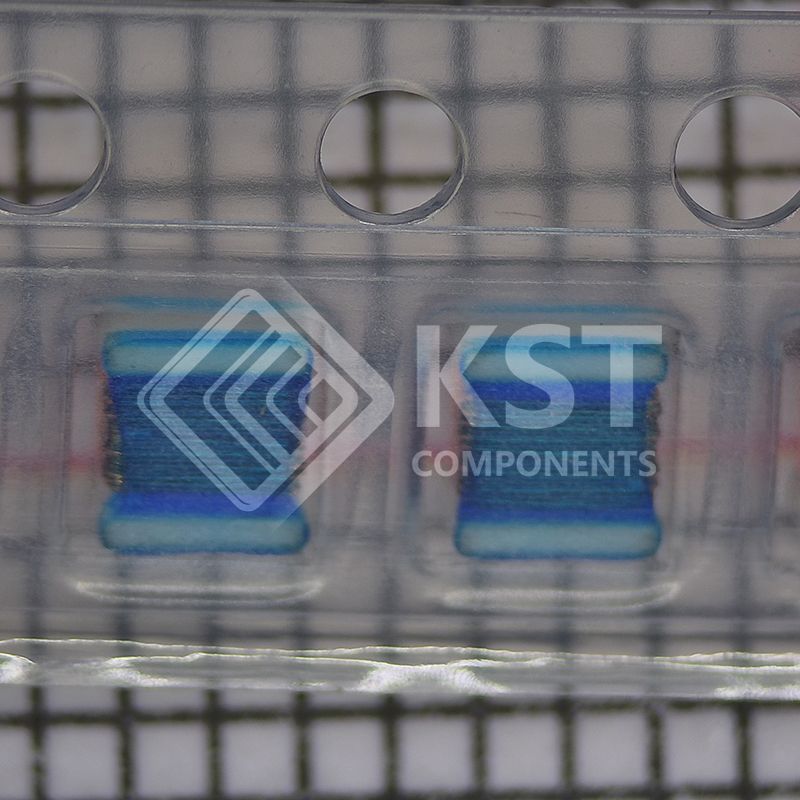

LQW2UAS4R7J00L
Part Number:
LQW2UAS4R7J00L
Product Classification:
Pushbutton Switches - Hall Effect
Manufacturer:
AerosUSA
Description:
FIXED IND 4.7UH 260MA 4 OHM SMD
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Inductors, Coils, Chokes
Fixed Inductors
|
|
|
Mfr |
Murata Electronics |
|
|
Series |
LQW2 |
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Type |
Wirewound
|
|
|
Material - Core |
Air |
|
|
Inductance |
4.7 µH
|
|
|
Tolerance |
±5%
|
|
|
Current Rating (Amps) |
260 mA |
|
|
Current - Saturation (Isat) |
-
|
|
|
Shielding |
Unshielded
|
|
|
DC Resistance (DCR) |
4Ohm Max
|
|
|
Q @ Freq |
20 @ 25MHz
|
|
|
Frequency - Self Resonant |
60MHz
|
|
|
Ratings |
-
|
|
|
Operating Temperature |
-55°C ~ 125°C
|
|
|
Inductance Frequency - Test |
7.9 MHz
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |
1008 (2520 Metric)
|
|
|
Supplier Device Package |
1008 (2520 Metric)
|
|
|
Size / Dimension |
0.103" L x 0.096" W (2.62mm x 2.45mm)
|
|
|
Height - Seated (Max) |
0.080" (2.03mm)
|
|
|
Base Product Number |
LQW2UAS |
