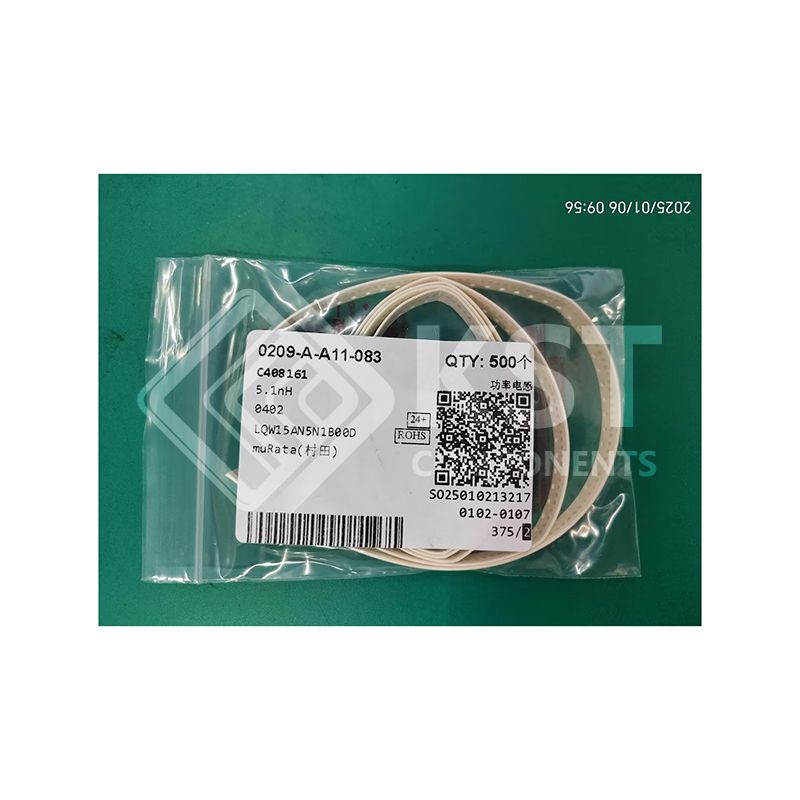

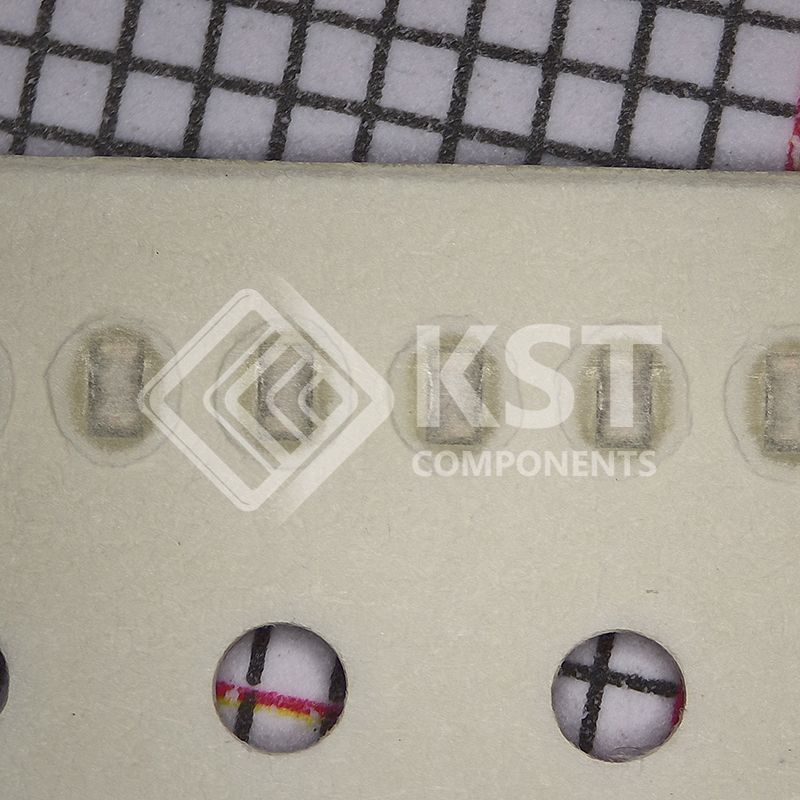

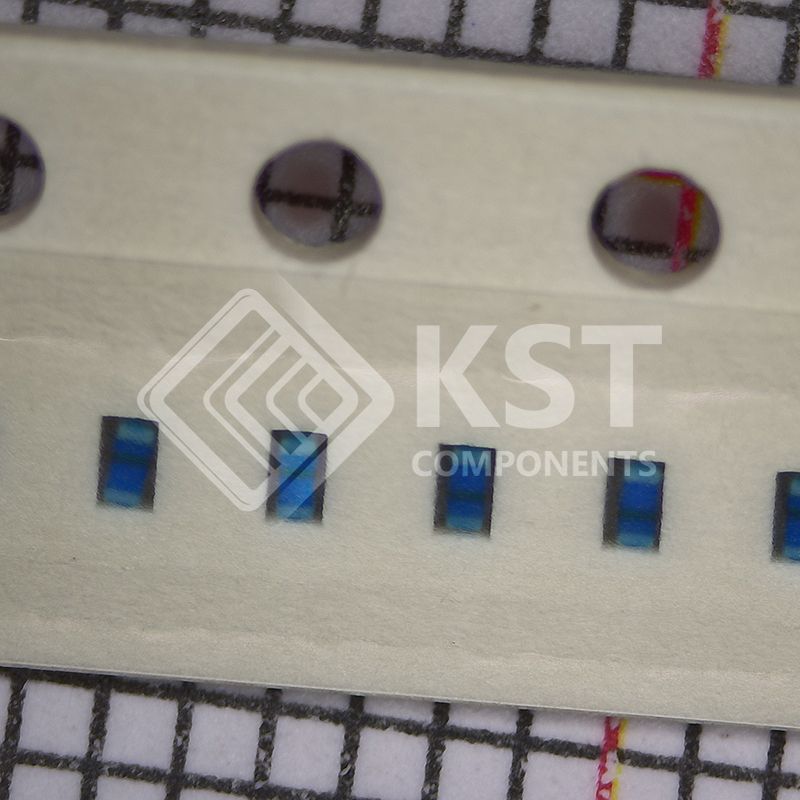

LQW15AN5N1B00D
Part Number:
LQW15AN5N1B00D
Product Classification:
Pushbutton Switches - Hall Effect
Manufacturer:
AerosUSA
Description:
FIXED IND 5.1NH 600MA 0.12OHM SM
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Inductors, Coils, Chokes
Fixed Inductors
|
|
|
Mfr |
Murata Electronics |
|
|
Series |
LQW15 |
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Type |
Drum Core, Wirewound
|
|
|
Material - Core |
Non-Magnetic |
|
|
Inductance |
5.1 nH
|
|
|
Tolerance |
±0.1nH
|
|
|
Current Rating (Amps) |
600 mA |
|
|
Current - Saturation (Isat) |
-
|
|
|
Shielding |
Unshielded
|
|
|
DC Resistance (DCR) |
120mOhm Max
|
|
|
Q @ Freq |
25 @ 250MHz
|
|
|
Frequency - Self Resonant |
8GHz
|
|
|
Ratings |
-
|
|
|
Operating Temperature |
-55°C ~ 125°C
|
|
|
Inductance Frequency - Test |
100 MHz
|
|
|
Features |
-
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |
0402 (1005 Metric)
|
|
|
Supplier Device Package |
-
|
|
|
Size / Dimension |
0.039" L x 0.024" W (1.00mm x 0.60mm)
|
|
|
Height - Seated (Max) |
0.024" (0.60mm)
|
|
|
Base Product Number |
LQW15AN |
