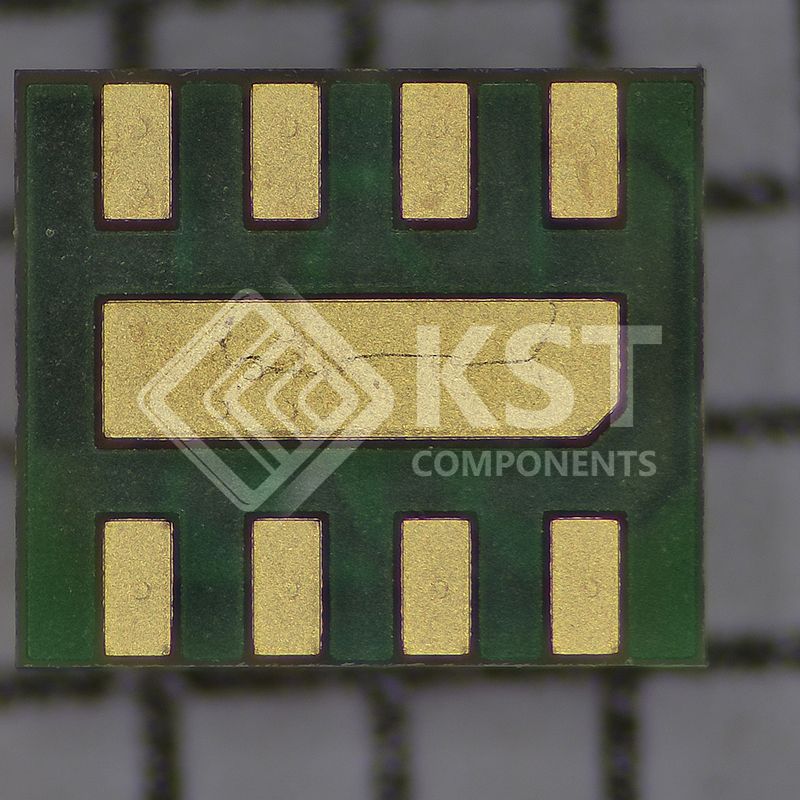

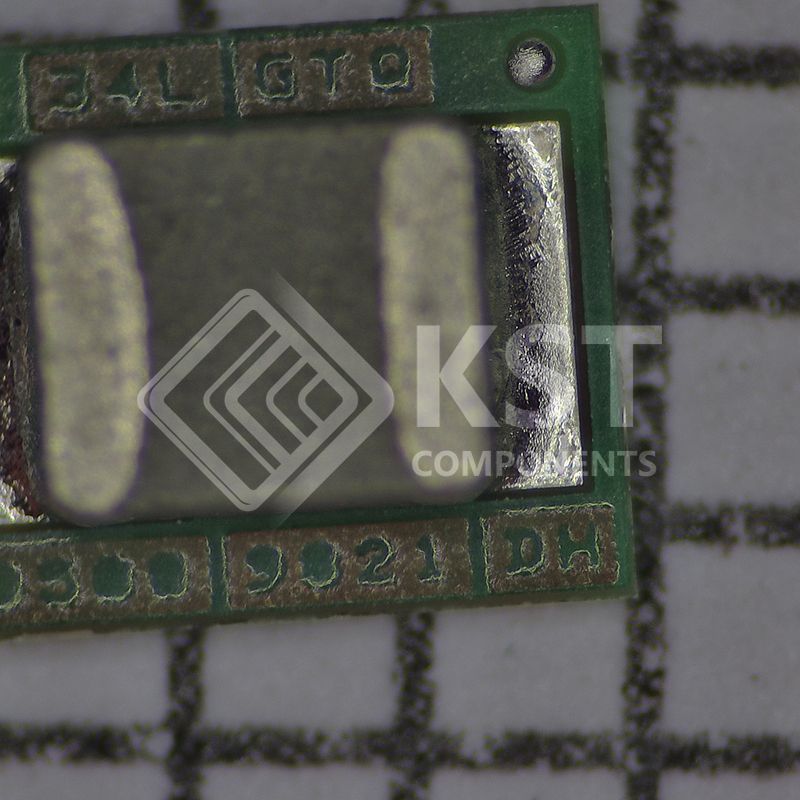

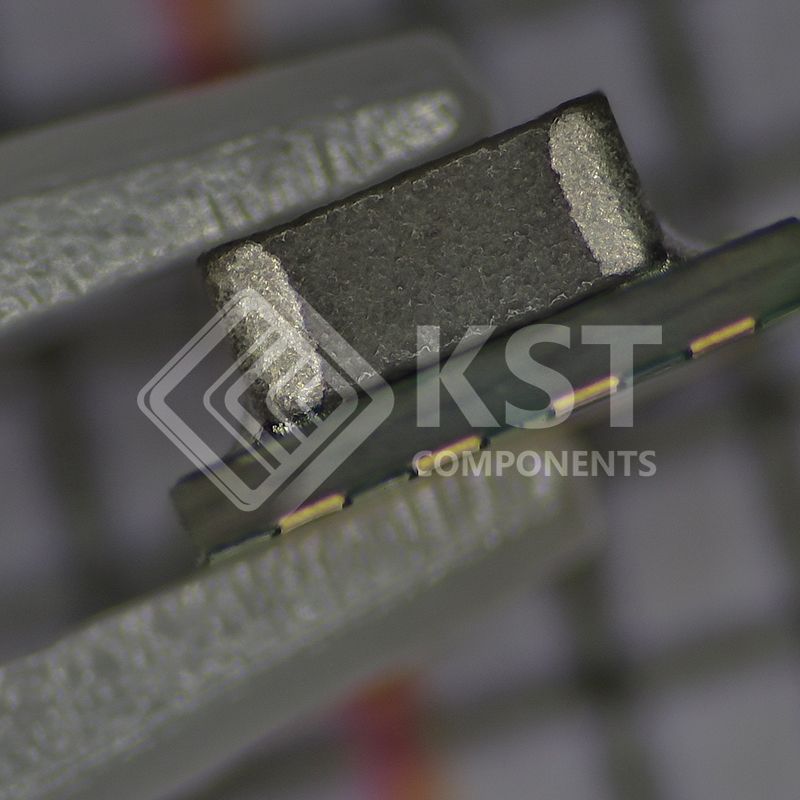

LMZ10500SILR
Part Number:
LMZ10500SILR
Product Classification:
Programmable Display Switches
Manufacturer:
3PEAK
Description:
DC DC CONVERTER 0.6-3.6V 2W
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Power Supplies - Board Mount
DC DC Converters
|
|
|
Mfr |
Texas Instruments |
|
|
Series |
SIMPLE SWITCHER® |
|
|
Packaging |

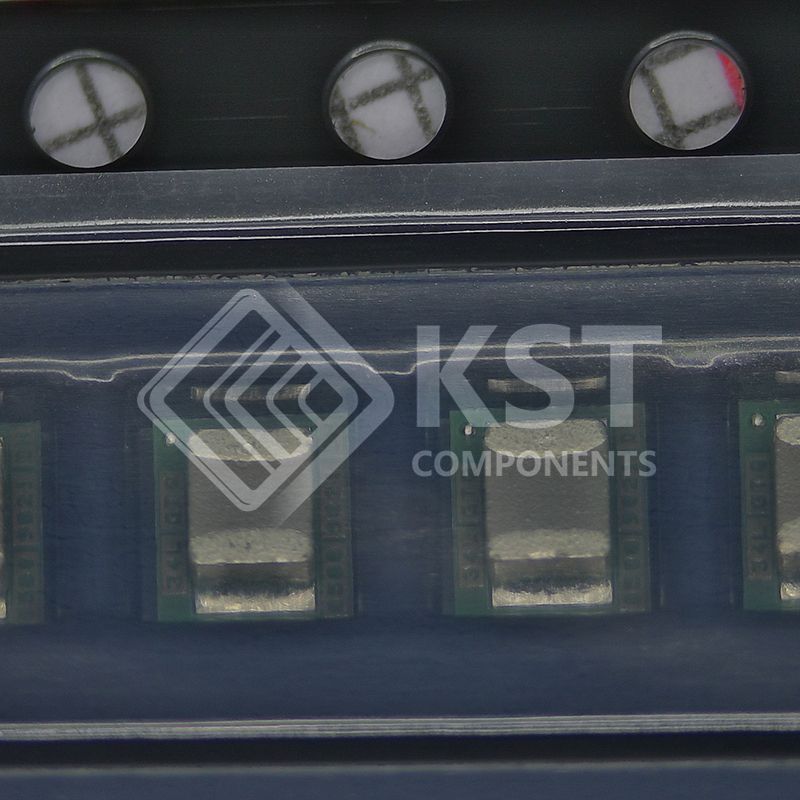

Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Type |
Non-Isolated PoL Module
|
|
|
Number of Outputs |
1
|
|
|
Voltage - Input (Min) |
2.7V
|
|
|
Voltage - Input (Max) |
5.5V
|
|
|
Voltage - Output 1 |
0.6 ~ 3.6V |
|
|
Voltage - Output 2 |
-
|
|
|
Voltage - Output 3 |
-
|
|
|
Current - Output (Max) |
650mA
|
|
|
Applications |
ITE (Commercial)
|
|
|
Features |
OCP, OTP, SCP, UVLO
|
|
|
Operating Temperature |
-40°C ~ 125°C
|
|
|
Efficiency |
95%
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |
8-LDFN Exposed Pad, Module
|
|
|
Size / Dimension |
0.12" L x 0.10" W x 0.06" H (3.0mm x 2.6mm x 1.5mm)
|
|
|
Supplier Device Package |
8-uSIP
|
|
|
Control Features |
Enable, Active High
|
|
|
Base Product Number |
LMZ10500 |
