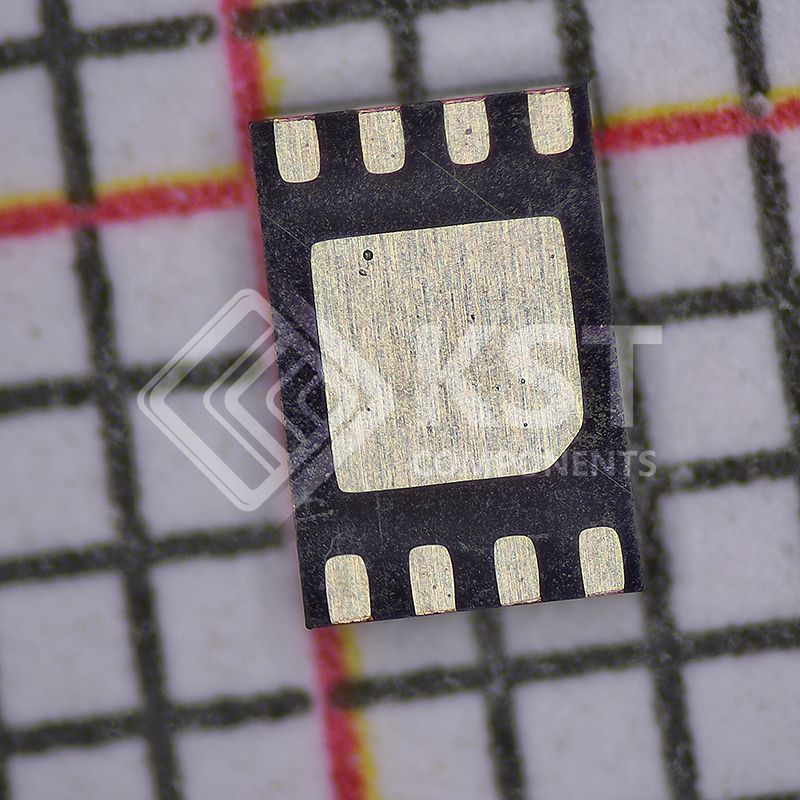

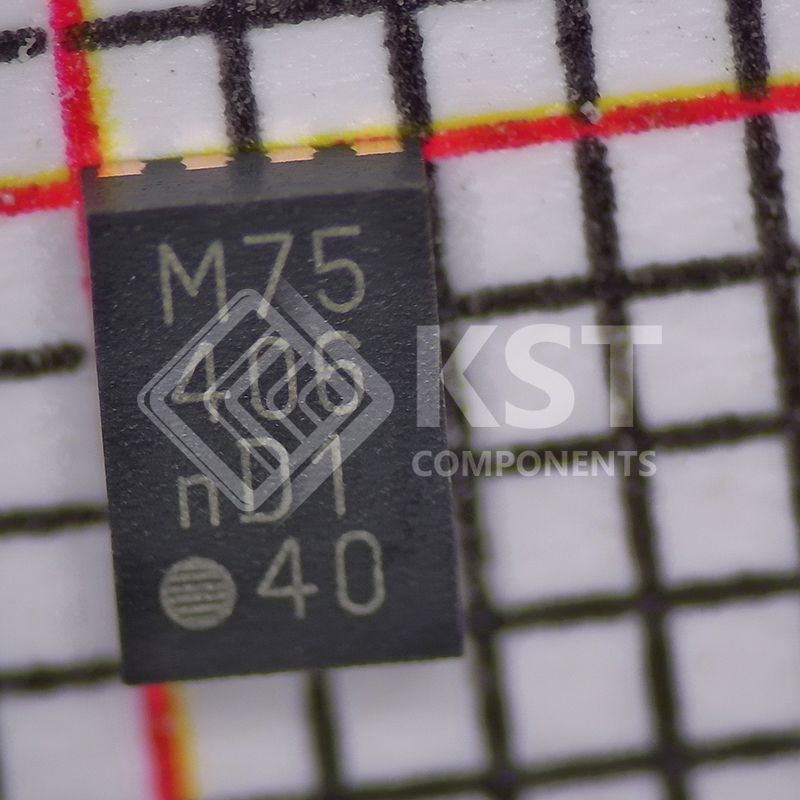

LM75BTP,147

 Pin-for-pin replacement for industry standard LM75 and LM75A and offers improved
temperature resolution of 0.125 C and specification of a single part over power supply
range from 2.8 V to 5.5 V
 I
2C-bus interface with up to 8 devices on the same bus
 Power supply range from 2.8 V to 5.5 V
 Temperatures range from 55 C to +125 C

 Frequency range 20 Hz to 400 kHz with bus fault time-out to prevent hanging up the
bus
 11-bit ADC that offers a temperature resolution of 0.125 C
 Temperature accuracy of:
 2 C from 25 C to +100 C
 3 C from 55 C to +125 C
 Programmable temperature threshold and hysteresis set points
 Supply current of 1.0 A in shutdown mode for power conservation
 Stand-alone operation as thermostat at power-up
 ESD protection exceeds 4500 V HBM per JESD22-A114 and 1000 V CDM per
JESD22-C101
 Latch-up testing is done to JEDEC Standard JESD78 which exceeds 100 mA
 Small 8-pin package types: SO8, TSSOP8, 3 mm  2 mm XSON8U, and
2 mm  3 mm HWSON8
