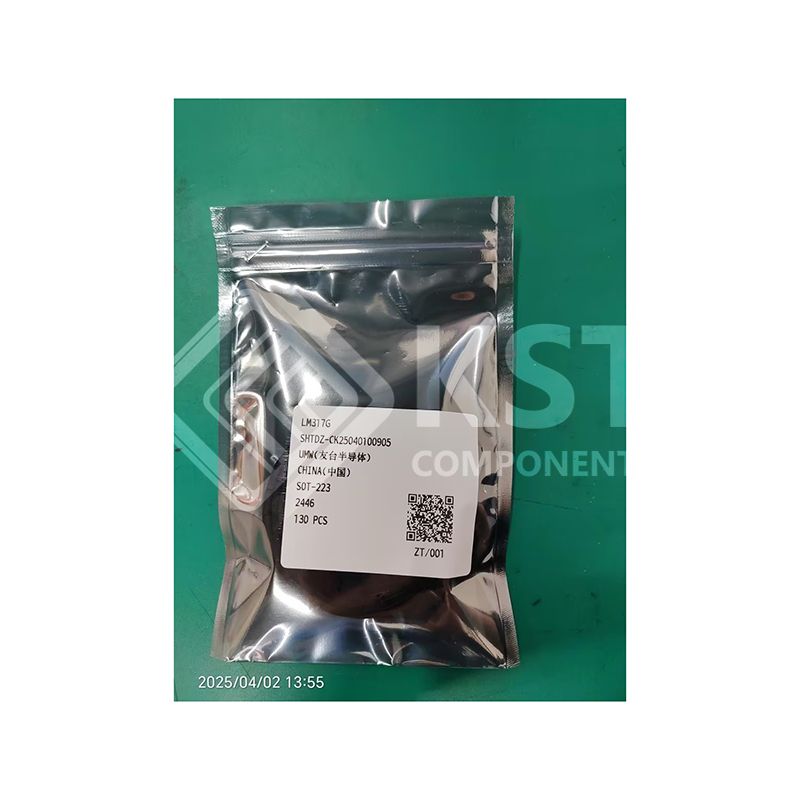

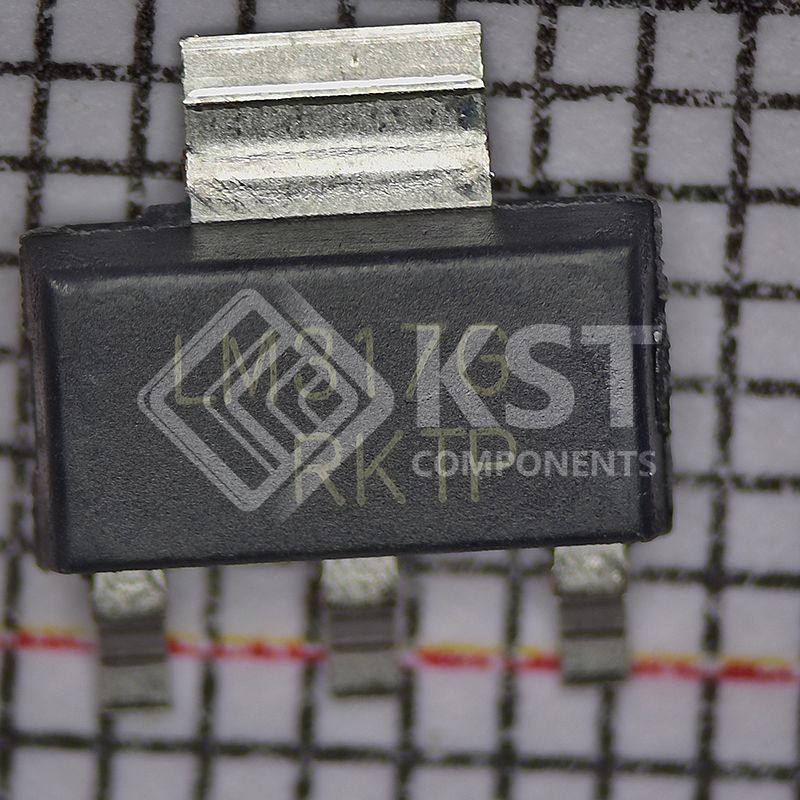

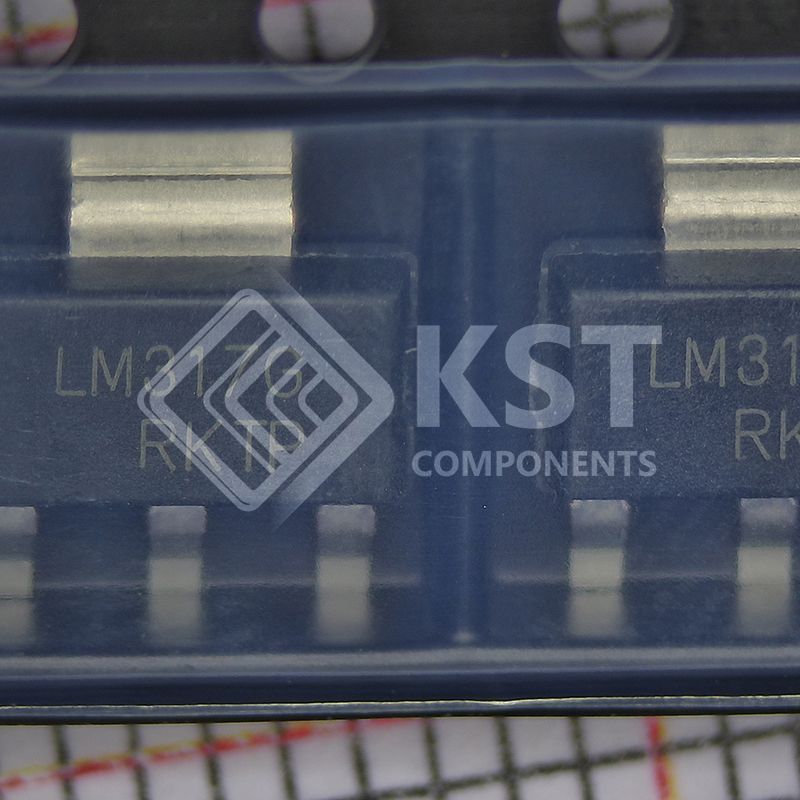

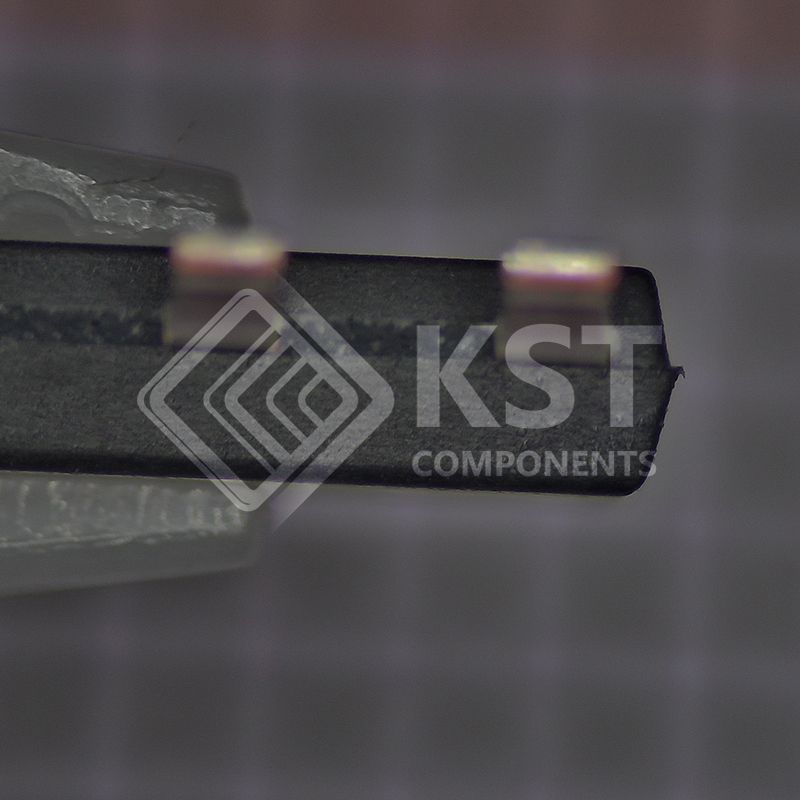

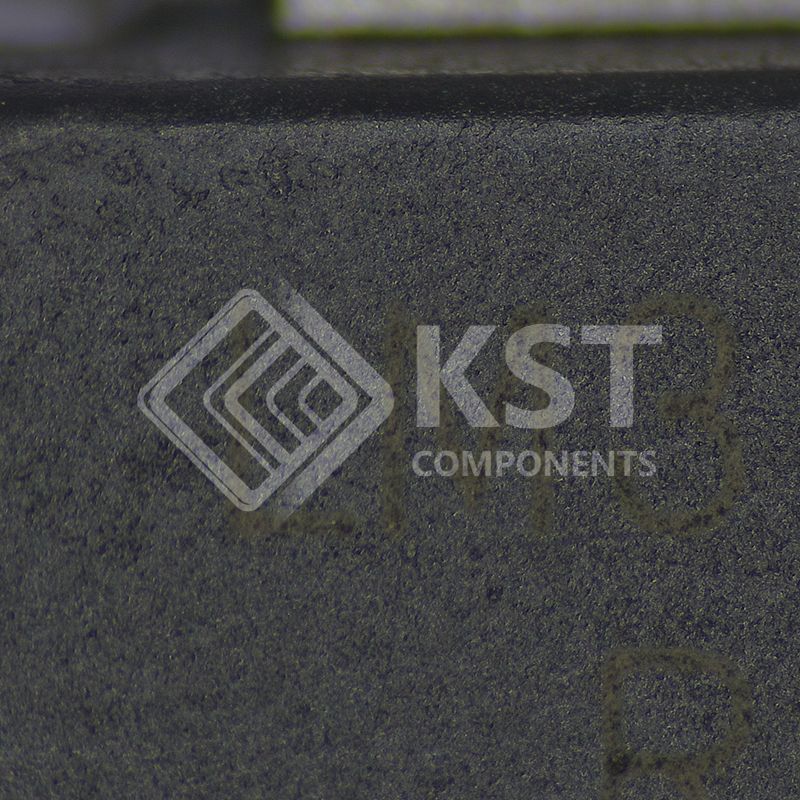

LM317G
Part Number:
LM317G
Product Classification:
Keylock Switches
Manufacturer:
AK-NORD GmbH
Description:
IC REG LIN POS ADJ 1.5A SOT223
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Integrated Circuits (ICs)
Power Management (PMIC)
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
|
|
|
Mfr |
EVVO |
|
|
Series |
-
|
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Output Configuration |
Positive |
|
|
Output Type |
Adjustable |
|
|
Number of Regulators |
1
|
|
|
Voltage - Input (Max) |
40V
|
|
|
Voltage - Output (Min/Fixed) |
1.2V
|
|
|
Voltage - Output (Max) |
37V |
|
|
Voltage Dropout (Max) |
-
|
|
|
Current - Output |
1.5A |
|
|
Current - Quiescent (Iq) |
12 mA
|
|
|
PSRR |
75dB ~ 60dB (120Hz)
|
|
|
Control Features |
-
|
|
|
Protection Features |
Over Current, Over Temperature, Short Circuit
|
|
|
Operating Temperature |
0°C ~ 125°C (TJ)
|
|
|
Grade |
-
|
|
|
Qualification |
-
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |
TO-261-4, TO-261AA
|
|
|
Supplier Device Package |
SOT-223-3L
|
