LH33K010F-HTS
Part Number:
LH33K010F-HTS
Product Classification:
Pushbutton Switches - Hall Effect
Manufacturer:
AerosUSA
Description:
FIXED IND 120NH 1.1A 85 MOHM SMD
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Inductors, Coils, Chokes
Fixed Inductors
|
|
|
Mfr |
Murata Electronics |
|
|
Series |
LQW18 |
|
|

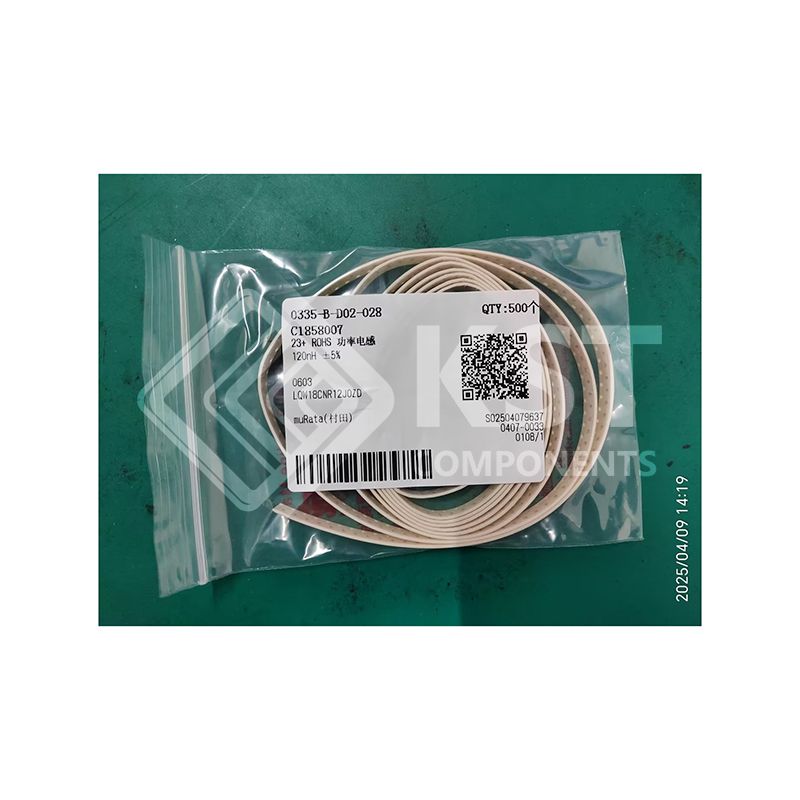

Packaging |

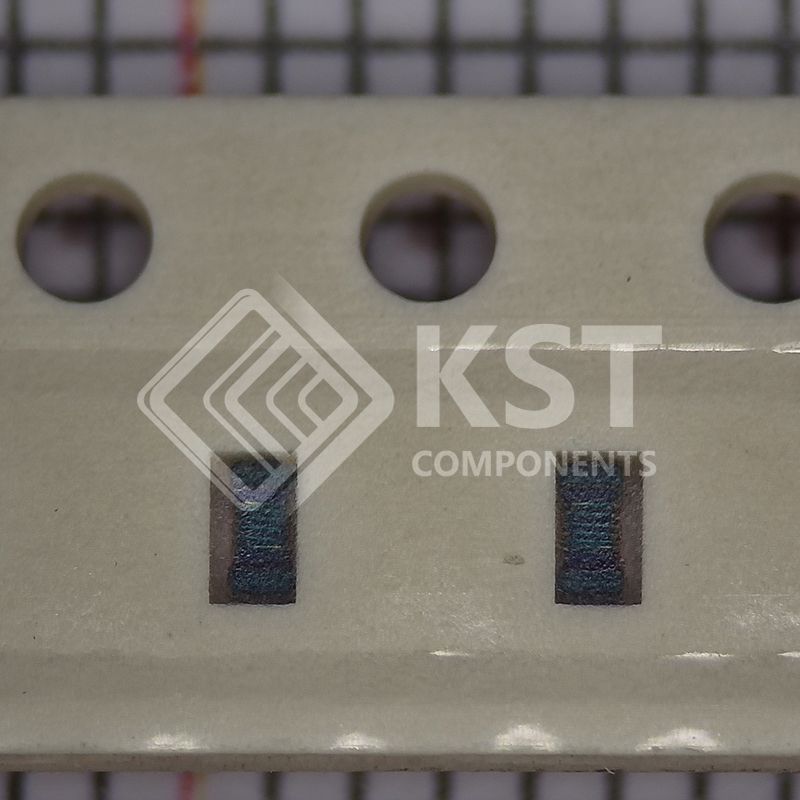

Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|

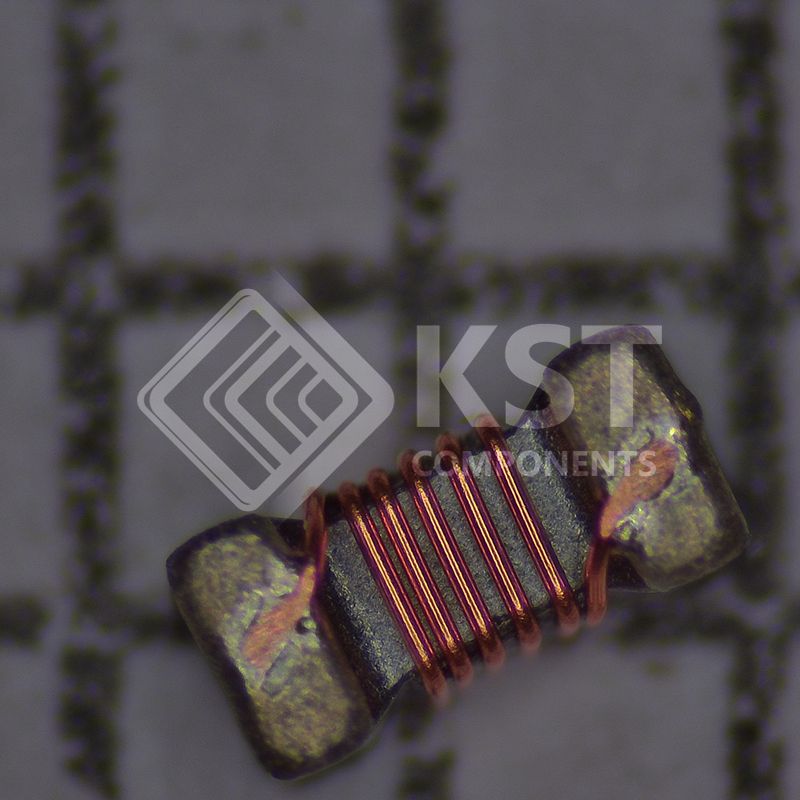

Type |
Drum Core, Wirewound
|
|
|
Material - Core |
Ferrite |
|
|
Inductance |
120 nH
|
|
|
Tolerance |
±5%
|
|
|
Current Rating (Amps) |
1.1 A |
|
|
Current - Saturation (Isat) |
-
|
|
|
Shielding |
Unshielded
|
|
|
DC Resistance (DCR) |
85mOhm Max
|
|
|
Q @ Freq |
-
|
|
|
Frequency - Self Resonant |
1.2GHz
|
|
|
Ratings |
AEC-Q200
|
|
|
Operating Temperature |
-40°C ~ 125°C
|
|
|
Inductance Frequency - Test |
10 MHz
|
|
|
Features |
-
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |
0603 (1608 Metric)
|
|
|
Supplier Device Package |
0603
|
|
|
Size / Dimension |
0.063" L x 0.031" W (1.60mm x 0.80mm)
|
|
|
Height - Seated (Max) |
0.037" (0.95mm)
|
|
|
Base Product Number |
LQW18CN |
|
