JXC0-1016NL
Part Number:
JXC0-1016NL
Product Classification:
LED Lighting Kits
Manufacturer:
Amerway Inc.
Description:
CONN JACK 2PORT PCB
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Connectors, Interconnects
Modular/Ethernet Connectors
Modular/Ethernet Connector (RJ45) Jacks With Magnetics
|
|
|
Manufacturer |
Pulse Electronics
|
|
|
Series |
PULSEJACK™ JXC0 |
|
|
Packaging |

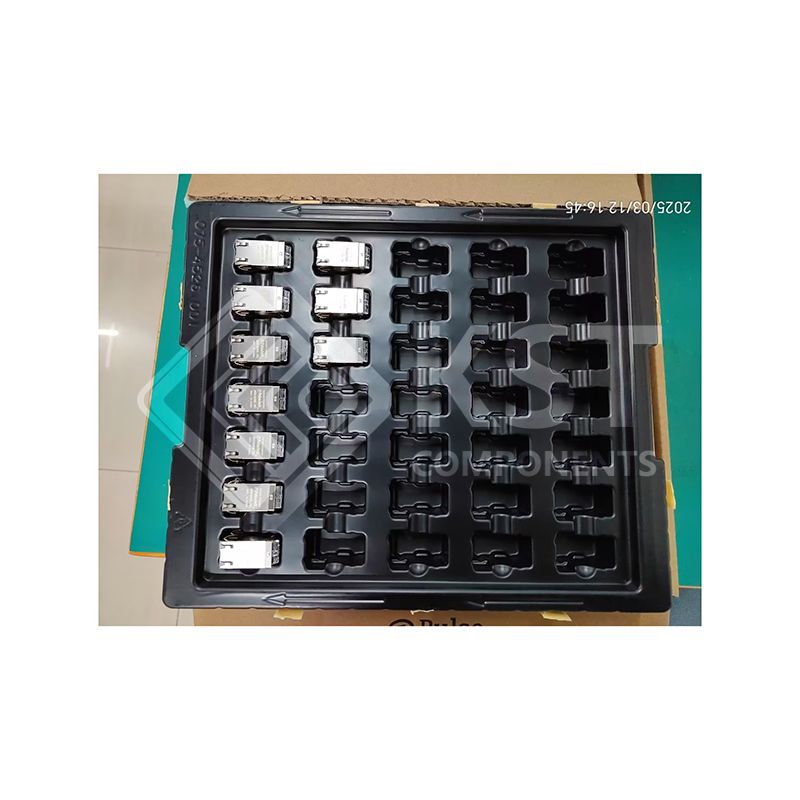

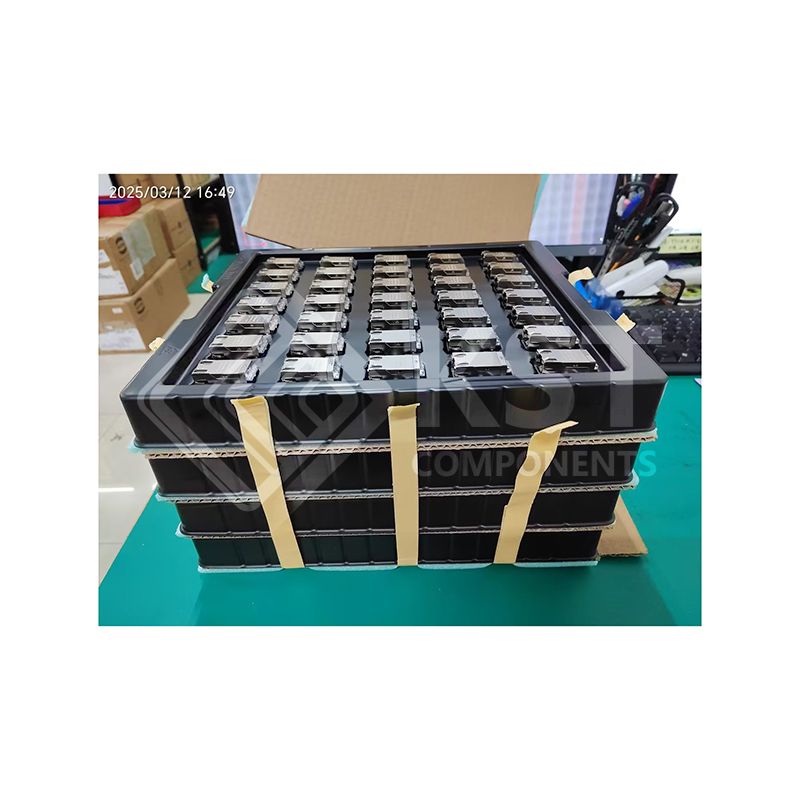

Tray
|
|
|
Part Status |
Active
|
|
|
Connector Type |
RJ45
|
|
|
Number of Ports |
2
|
|
|
Number of Rows |
2
|
|
|
Applications |
10/100/1000 Base-T, AutoMDIX
|
|
|
Mounting Type |
Through Hole
|
|
|
Orientation |
90° Angle (Right)
|
|
|
Termination |
Solder
|
|
|
Height Above Board |
1.050" (26.67mm)
|
|
|
LED Color |
Green - Yellow
|
|
|
Number of Cores per Jack |
8
|
|
|
Shielding |
Shielded, EMI Finger
|
|
|
Features |
Board Guide
|
|
|
Tab Direction |
Up and Down
|
|
|
Contact Material |
Phosphor Bronze
|
|
|
Contact Finish |
Gold
|
|
|
Operating Temperature |
-40°C ~ 85°C
|
|
|
Contact Finish Thickness |
50.0µin (1.27µm)
|
|
|
Shield Material |
Copper Alloy
|
|
|
Housing Material |
Thermoplastic
|
