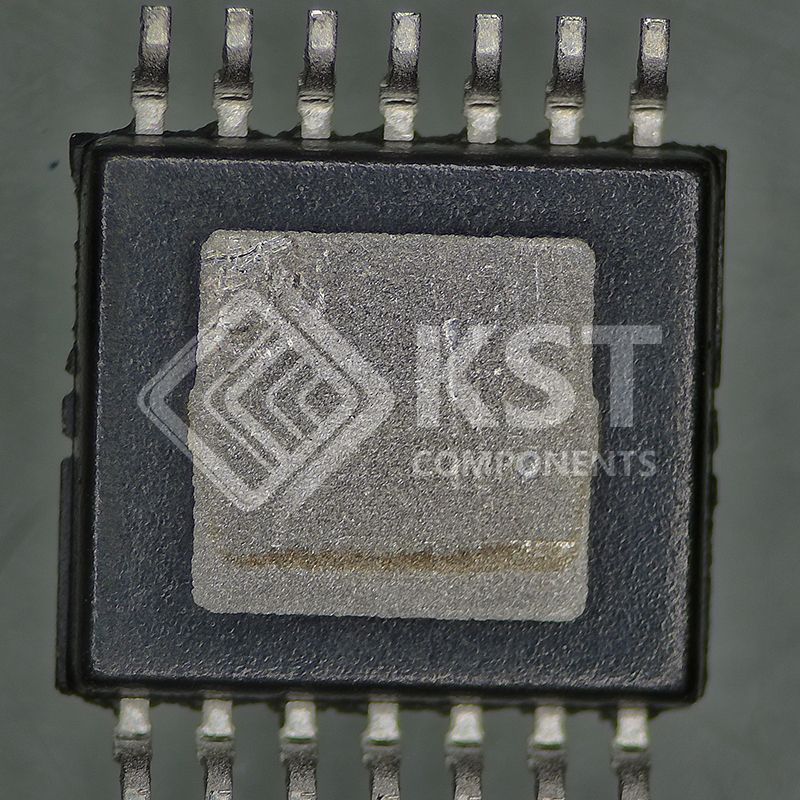

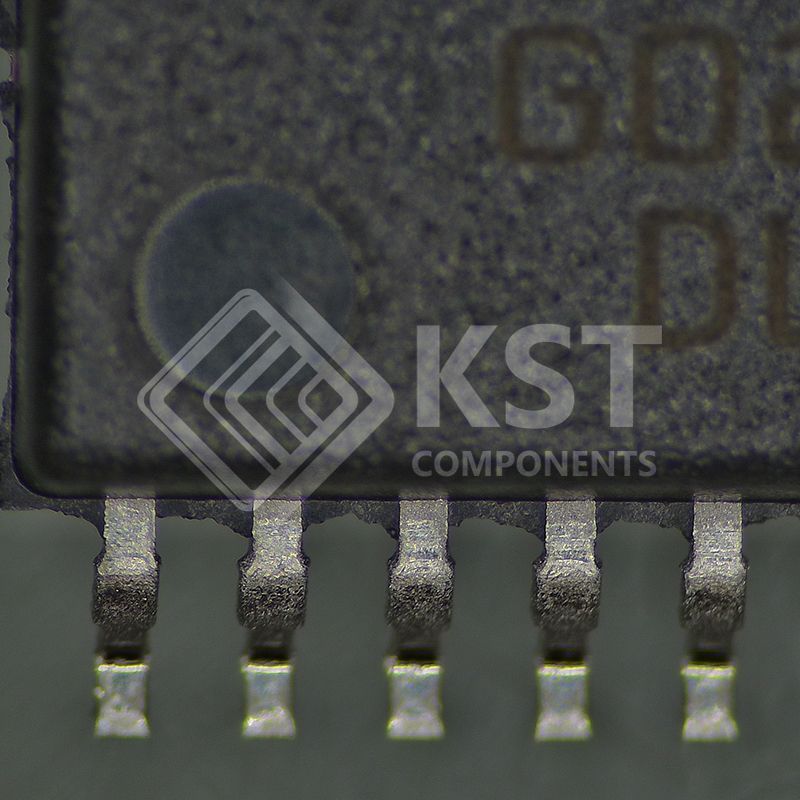

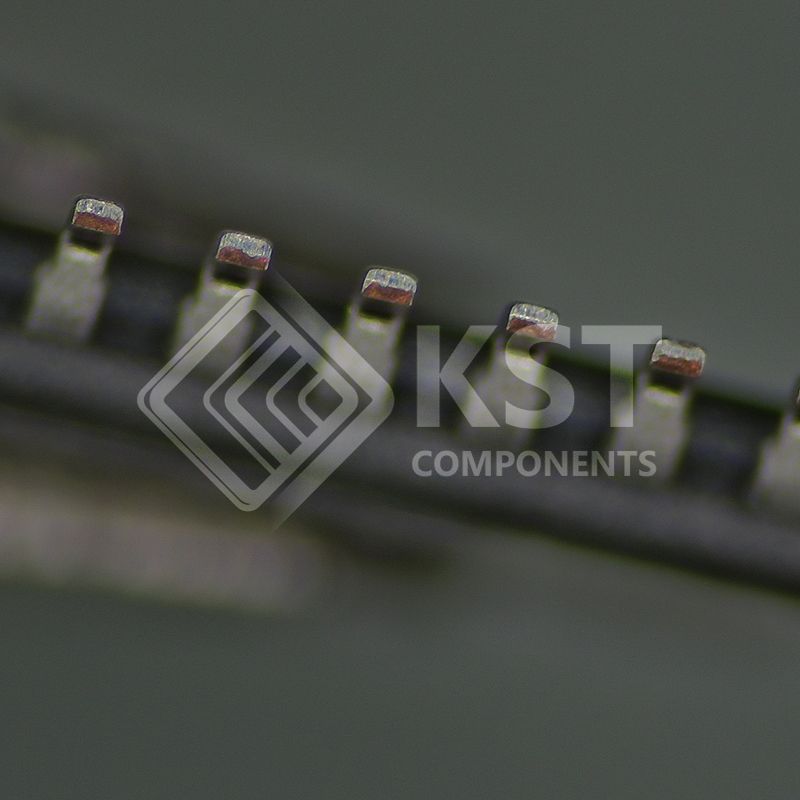

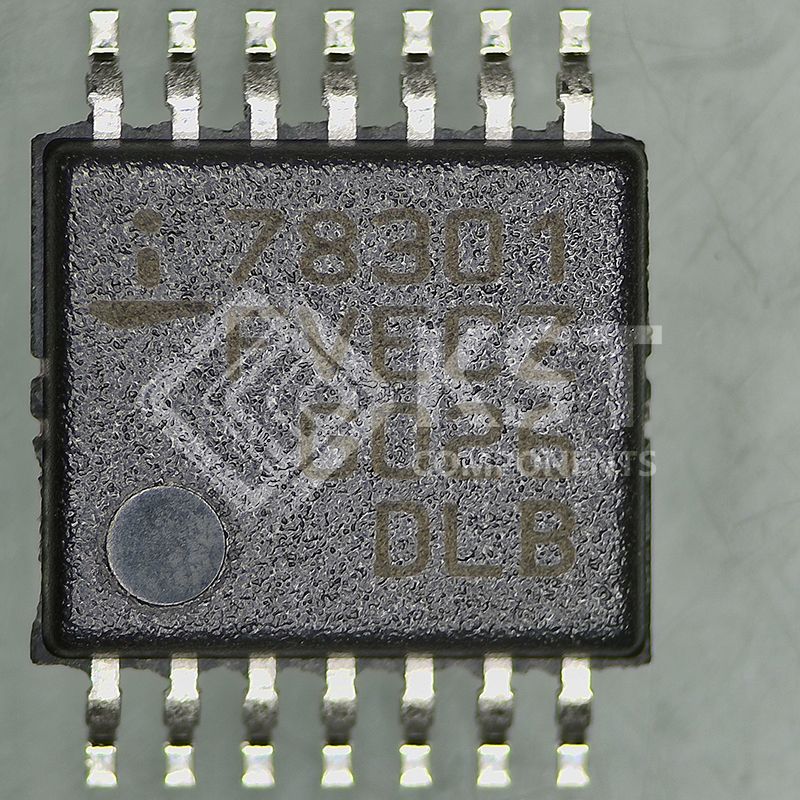

ISL78301FVECZ
Part Number:
ISL78301FVECZ
Product Classification:
Keylock Switches
Manufacturer:
Advantech
Description:
IC REG LIN POS ADJ 14HTSSOP
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Integrated Circuits (ICs)
Power Management (PMIC)
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
|
|
|
Mfr |
Renesas Electronics Corporation |
|
|
Series |
-
|
|
|
Packaging |
Tube
|
|
|
Part Status |
Active
|
|
|
Output Configuration |
Positive |
|
|
Output Type |
Adjustable |
|
|
Number of Regulators |
1
|
|
|
Voltage - Input (Max) |
40V
|
|
|
Voltage - Output (Min/Fixed) |
2.5V
|
|
|
Voltage - Output (Max) |
12V |
|
|
Voltage Dropout (Max) |
-
|
|
|
Current - Output |
150mA |
|
|
Current - Quiescent (Iq) |
24 µA
|
|
|
Current - Supply (Max) |
125 µA
|
|
|
PSRR |
66dB (100Hz)
|
|
|
Control Features |
Enable
|
|
|
Protection Features |
Over Current, Over Temperature
|
|
|
Operating Temperature |
-40°C ~ 125°C
|
|
|
Grade |
Automotive
|
|
|
Qualification |
AEC-Q100
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |
14-TSSOP (0.173", 4.40mm Width) Exposed Pad
|
|
|
Supplier Device Package |
14-HTSSOP
|
|
|
Base Product Number |
ISL78301 |
|
