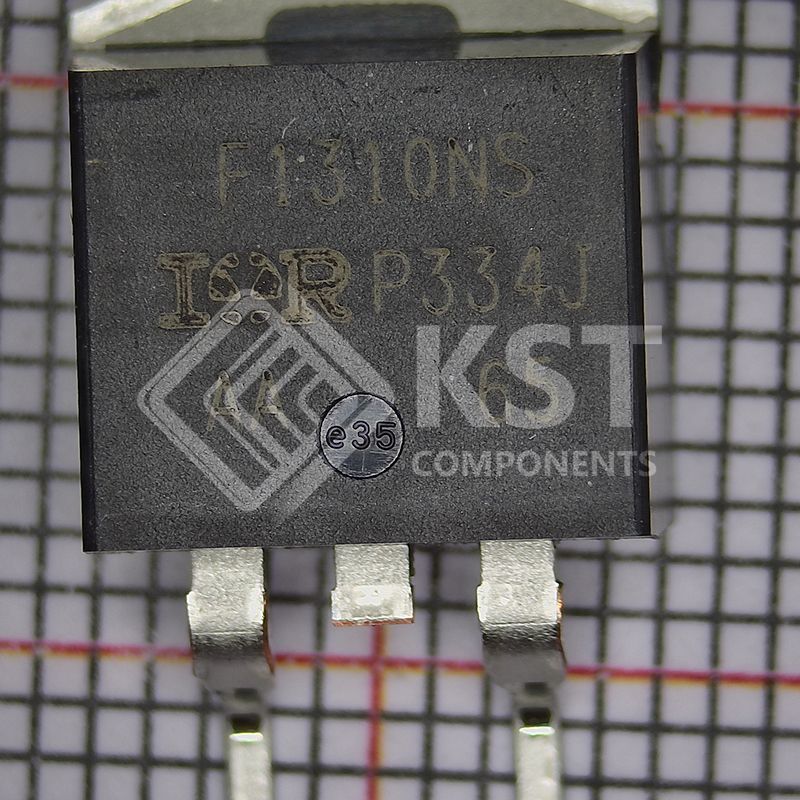

IRF1310NSTRLPBF
Part Number:
IRF1310NSTRLPBF
Product Classification:
Solid State Relays (SSR)
Manufacturer:
AIC tech
Description:
MOSFET N-CH 100V 42A D2PAK
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Discrete Semiconductor Products
Transistors
FETs, MOSFETs
Single FETs, MOSFETs
|
|
|
Mfr |
Infineon Technologies |
|
|
Series |
HEXFET® |
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
FET Type |
N-Channel |
|
|
Technology |
MOSFET (Metal Oxide) |
|
|
Drain to Source Voltage (Vdss) |
100 V
|
|
|
Current - Continuous Drain (Id) @ 25°C |
42A (Tc) |
|
|
Drive Voltage (Max Rds On, Min Rds On) |
10V
|
|
|
Rds On (Max) @ Id, Vgs |
36mOhm @ 22A, 10V
|
|
|
Vgs(th) (Max) @ Id |
4V @ 250µA
|
|
|
Gate Charge (Qg) (Max) @ Vgs |
110 nC @ 10 V
|
|
|
Vgs (Max) |
±20V
|
|
|
Input Capacitance (Ciss) (Max) @ Vds |
1900 pF @ 25 V
|
|
|
FET Feature |
-
|
|
|
Power Dissipation (Max) |
3.8W (Ta), 160W (Tc)
|
|
|
Operating Temperature |
-55°C ~ 175°C (TJ)
|
|
|
Mounting Type |
Surface Mount
|
|
|
Supplier Device Package |
D2PAK
|
|
|
Package / Case |
TO-263-3, D2PAK (2 Leads + Tab), TO-263AB |
|
|
Base Product Number |
IRF1310 |
