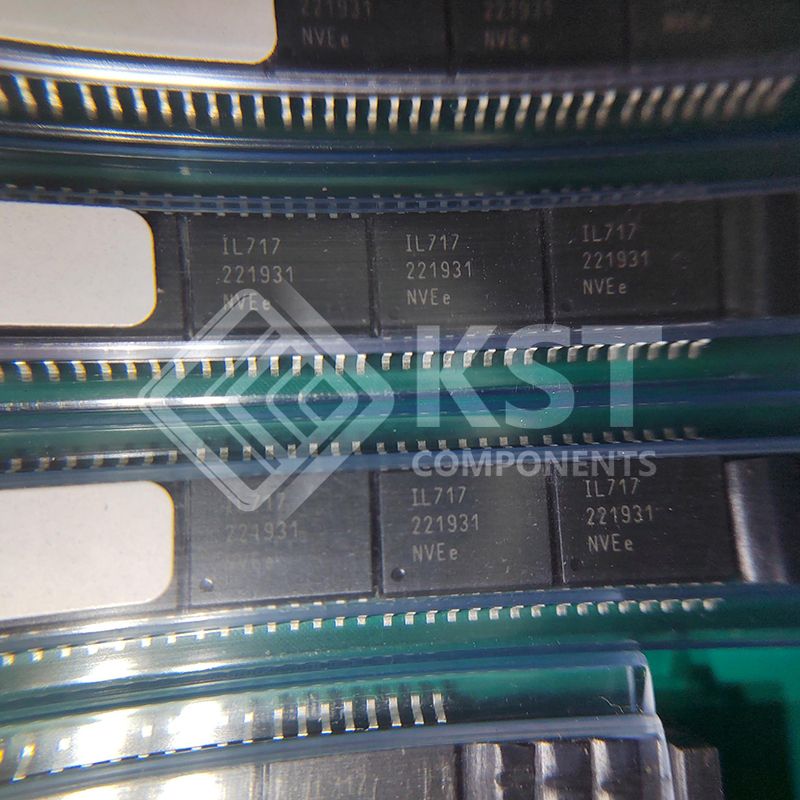

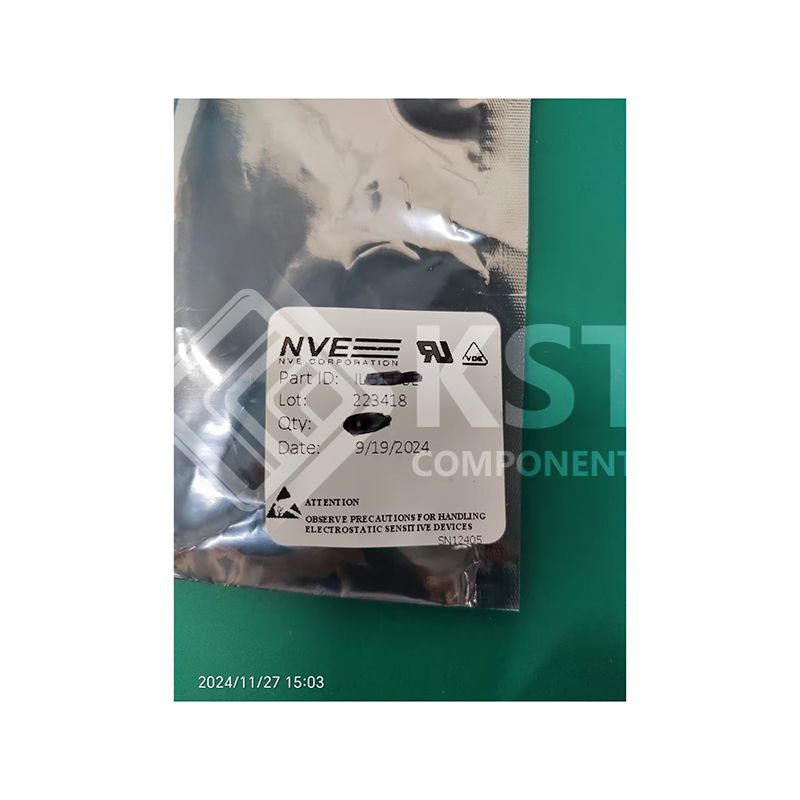

IL 717E
Part Number:
IL 717E
Product Classification:
Accessories - Caps
Manufacturer:
Atlanta Micro
Description:
DGTL ISO 2500VRMS 4CH GP 16SOIC
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Isolators
Digital Isolators
|
|
|
Mfr |
NVE Corp/Isolation Products |
|
|
Series |
IsoLoop® |
|
|
Packaging |

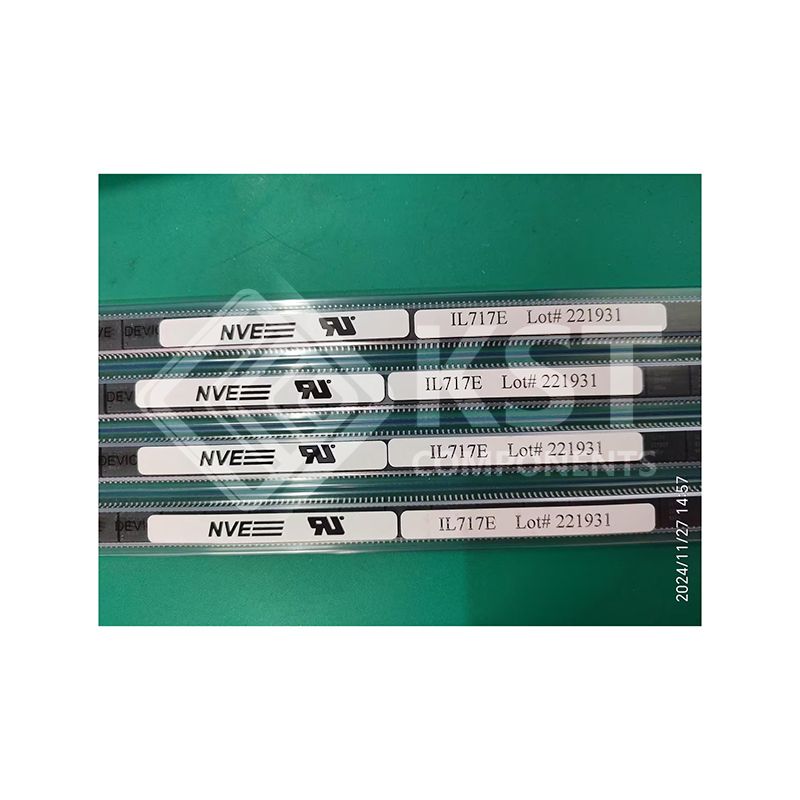

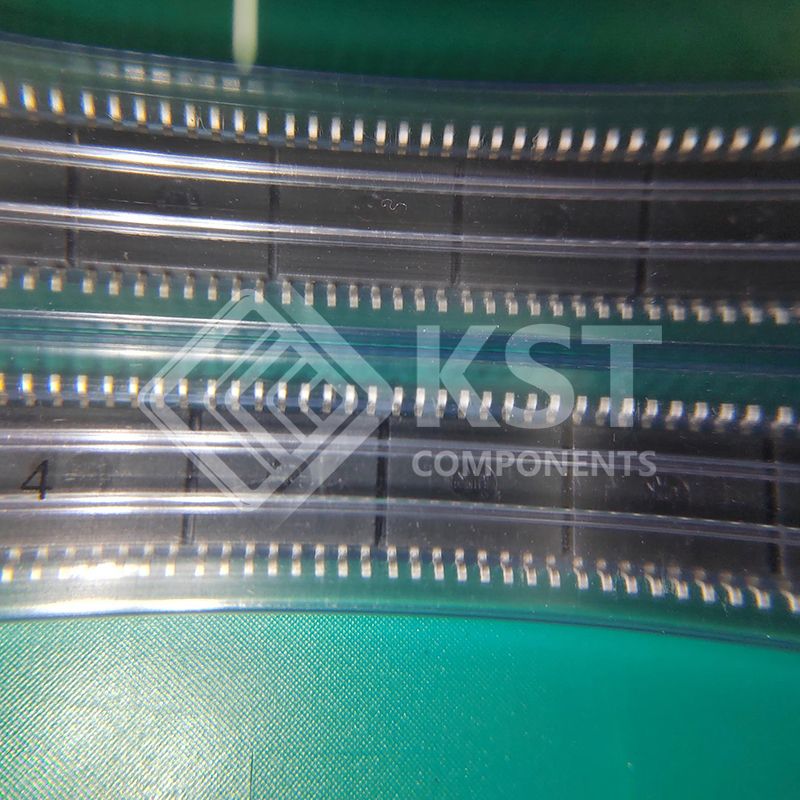

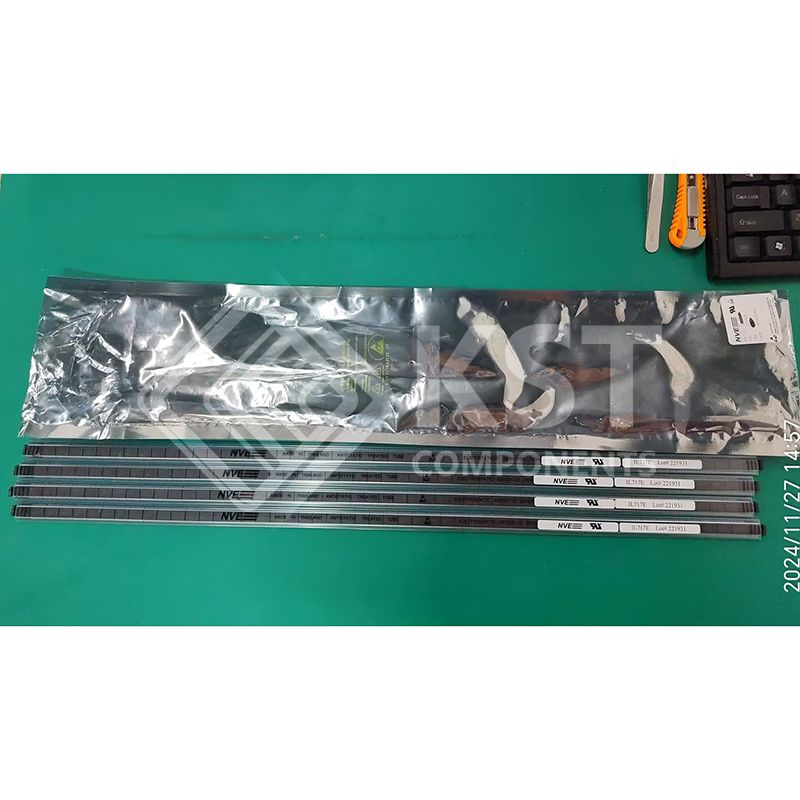

Tube
|
|
|
Part Status |
Active
|
|
|
Technology |
GMR (Giant Magnetoresistive)
|
|
|
Type |
General Purpose
|
|
|
Isolated Power |
No
|
|
|
Number of Channels |
4
|
|
|
Inputs - Side 1/Side 2 |
3/1
|
|
|
Channel Type |
Unidirectional
|
|
|
Voltage - Isolation |
2500Vrms
|
|
|
Common Mode Transient Immunity (Min) |
100kV/µs
|
|
|
Data Rate |
110Mbps |
|
|
Propagation Delay tpLH / tpHL (Max) |
15ns, 15ns
|
|
|
Pulse Width Distortion (Max) |
3ns
|
|
|
Rise / Fall Time (Typ) |
1ns, 1ns
|
|
|
Voltage - Supply |
3V ~ 5.5V
|
|
|
Operating Temperature |
-40°C ~ 100°C
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |

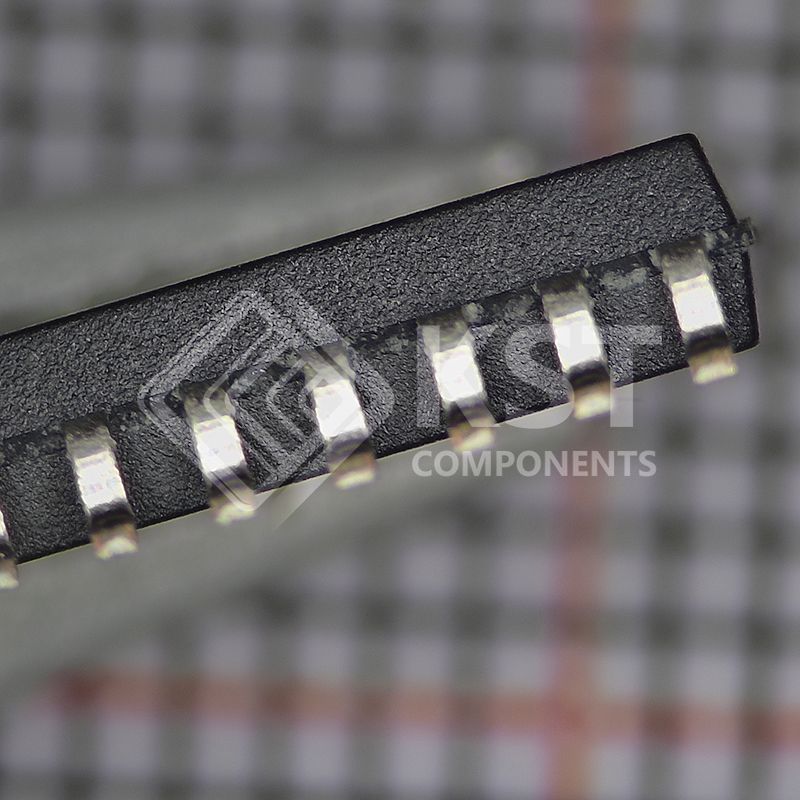

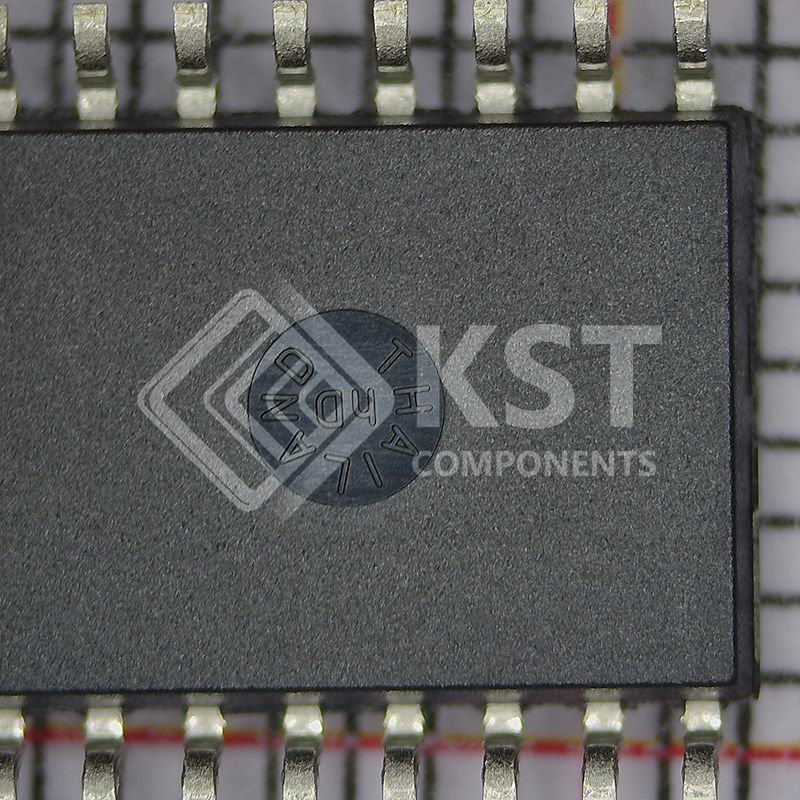

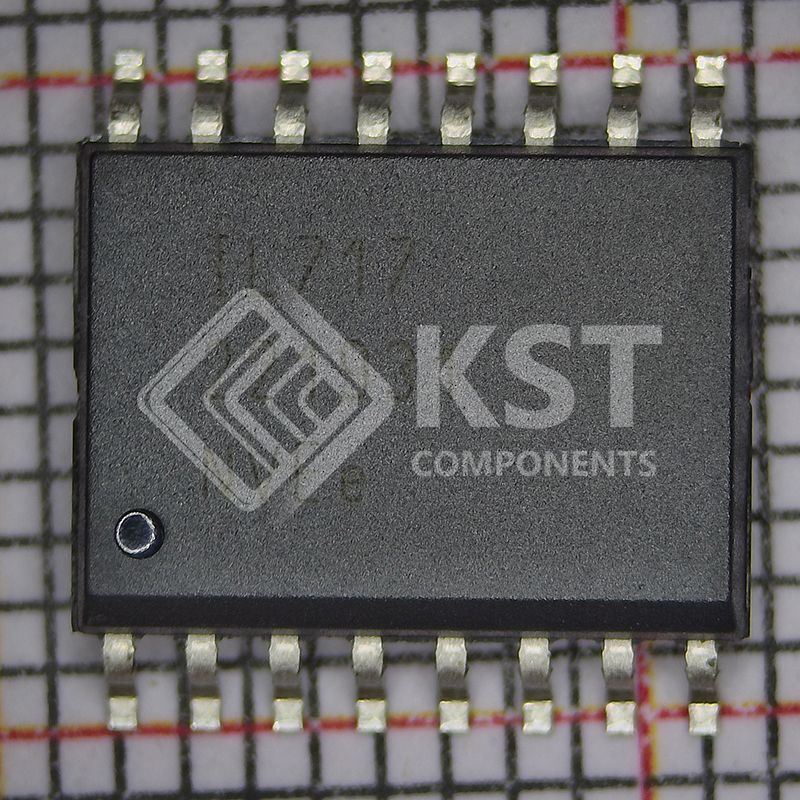

16-SOIC (0.295", 7.50mm Width) |
|
|
Supplier Device Package |
16-SOIC
|
|
|
Base Product Number |
IL 717 |
