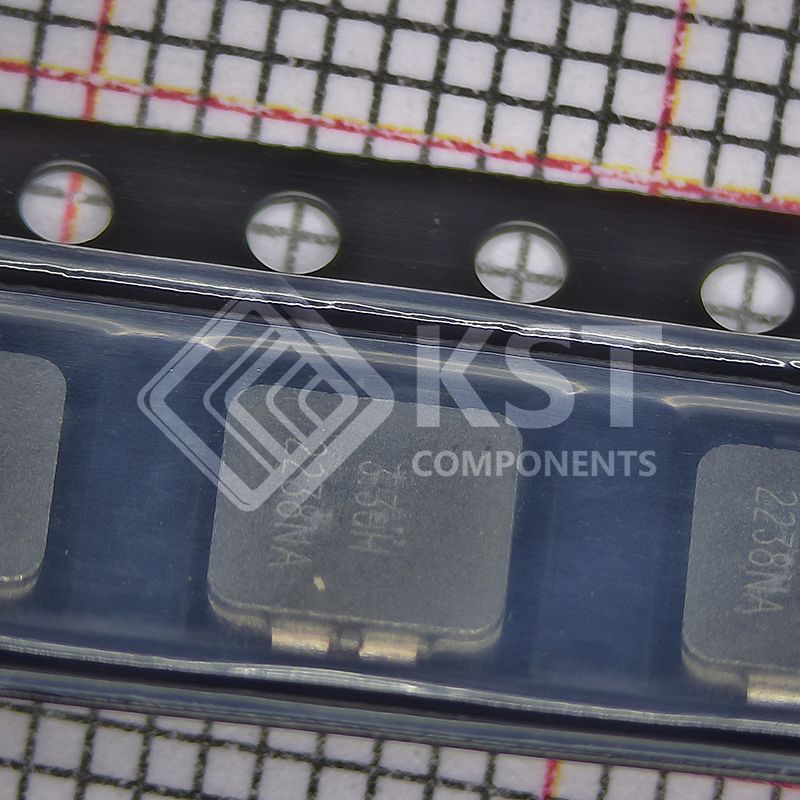

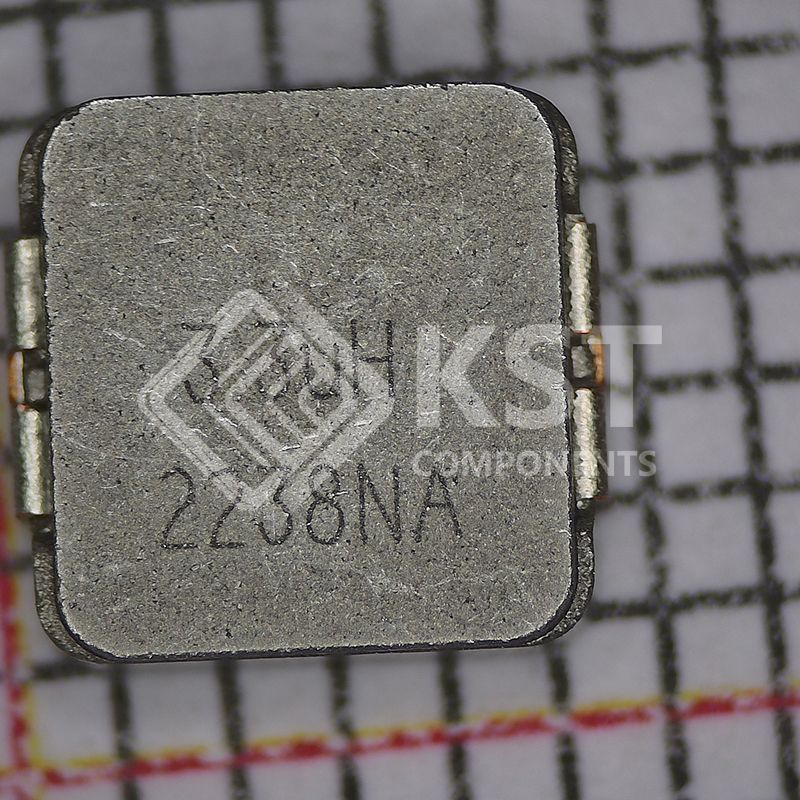

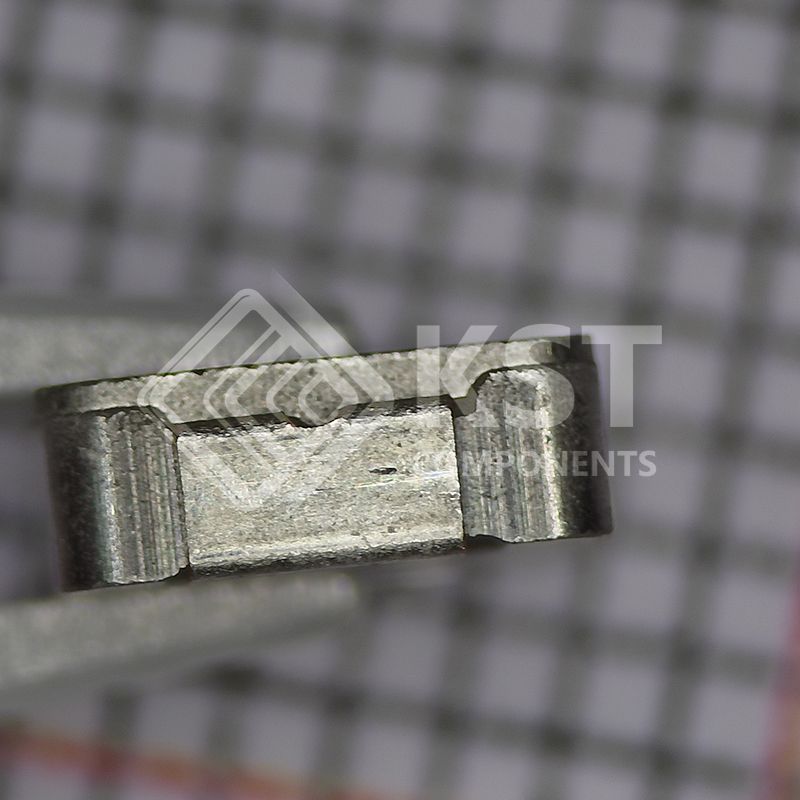

IHLP2020BZER3R3M11
Part Number:
IHLP2020BZER3R3M11
Product Classification:
Pushbutton Switches - Hall Effect
Manufacturer:
AGILINK MICROWIRES
Description:
FIXED IND 3.3UH 4.1A 57.8MOHM SM
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Inductors, Coils, Chokes
Fixed Inductors
|
|
|
Mfr |
Vishay Dale |
|
|
Series |
IHLP-2020BZ-11 |
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Discontinued at Digi-Key
|
|
|
Type |
Molded
|
|
|
Material - Core |
-
|
|
|
Inductance |
3.3 µH
|
|
|
Tolerance |
±20%
|
|
|
Current Rating (Amps) |
4.1 A |
|
|
Current - Saturation (Isat) |
4.7A
|
|
|
Shielding |
Shielded
|
|
|
DC Resistance (DCR) |
57.8mOhm Max
|
|
|
Q @ Freq |
-
|
|
|
Frequency - Self Resonant |
29MHz
|
|
|
Ratings |
-
|
|
|
Operating Temperature |
-55°C ~ 125°C
|
|
|
Inductance Frequency - Test |
100 kHz
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |
Nonstandard
|
|
|
Supplier Device Package |
-
|
|
|
Size / Dimension |
0.216" L x 0.204" W (5.49mm x 5.18mm)
|
|
|
Height - Seated (Max) |
0.079" (2.00mm)
|
