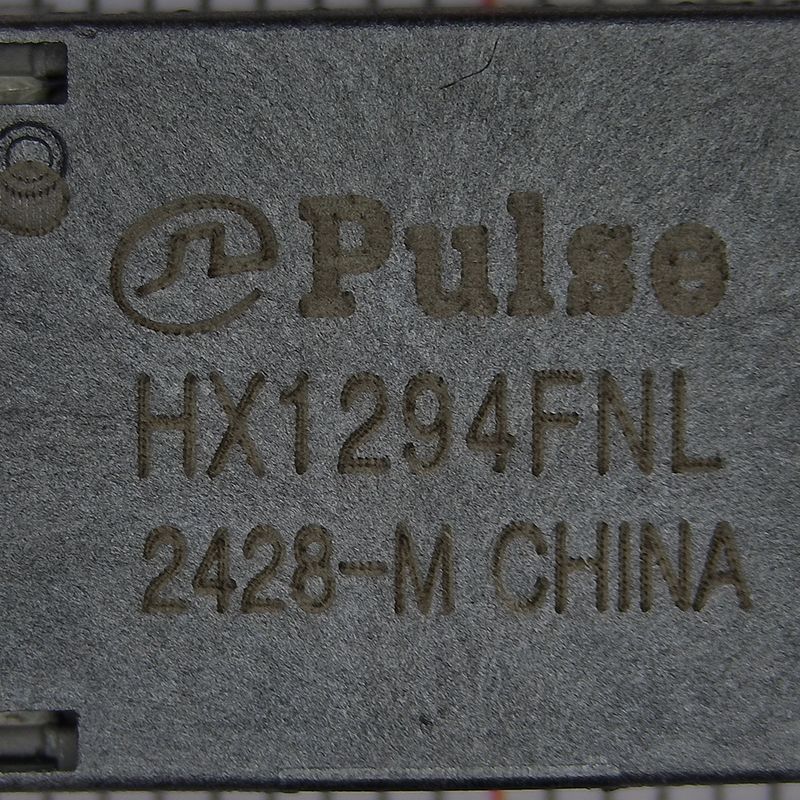

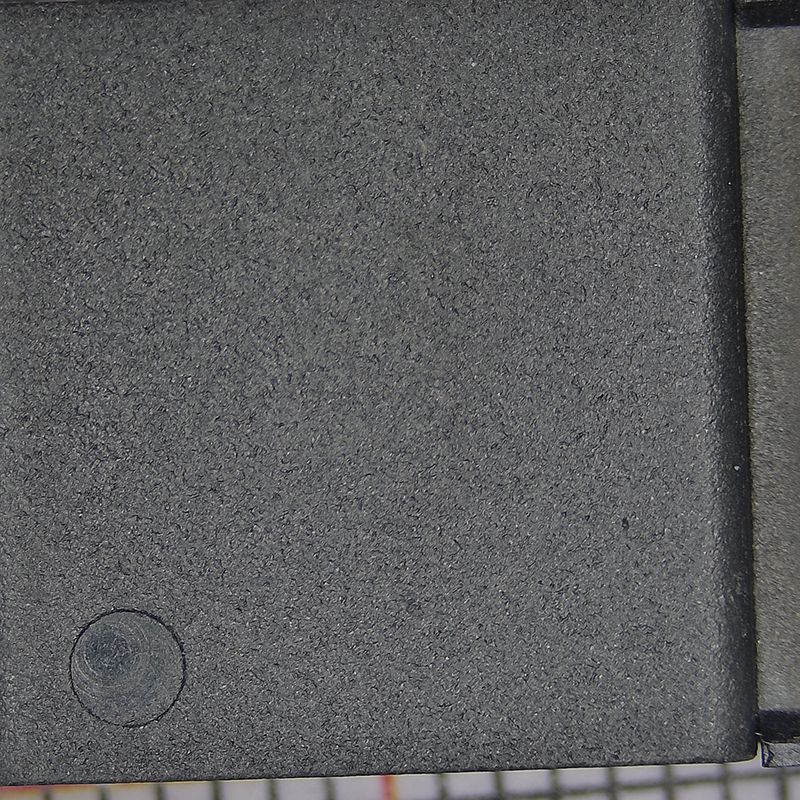

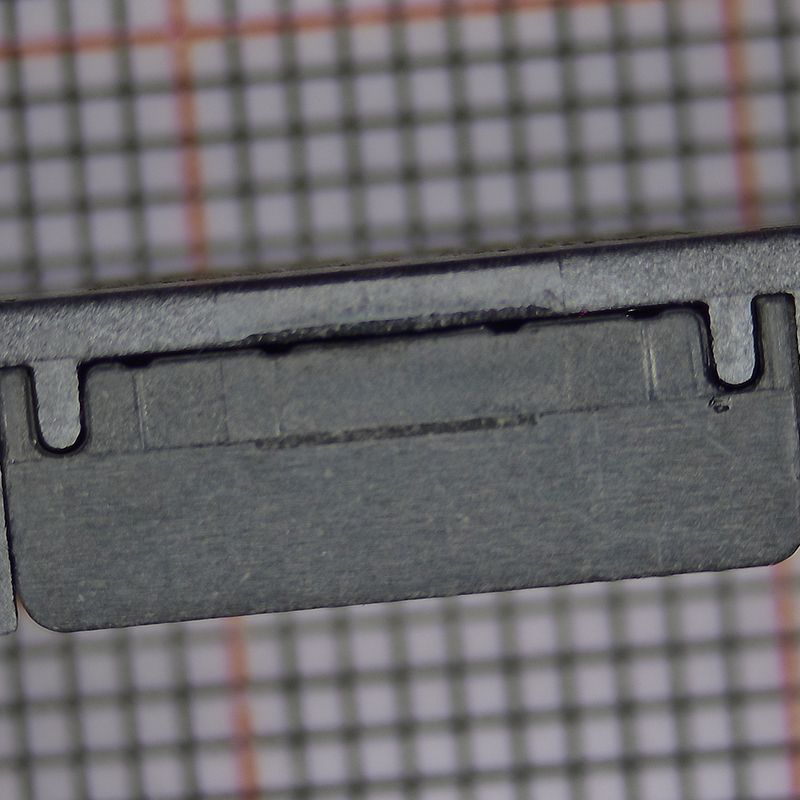

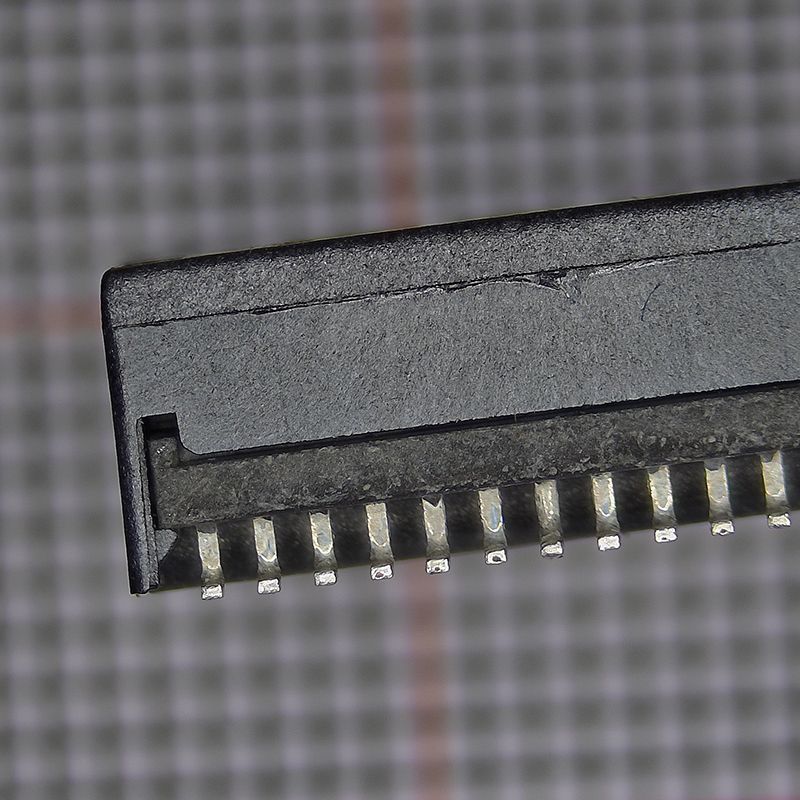

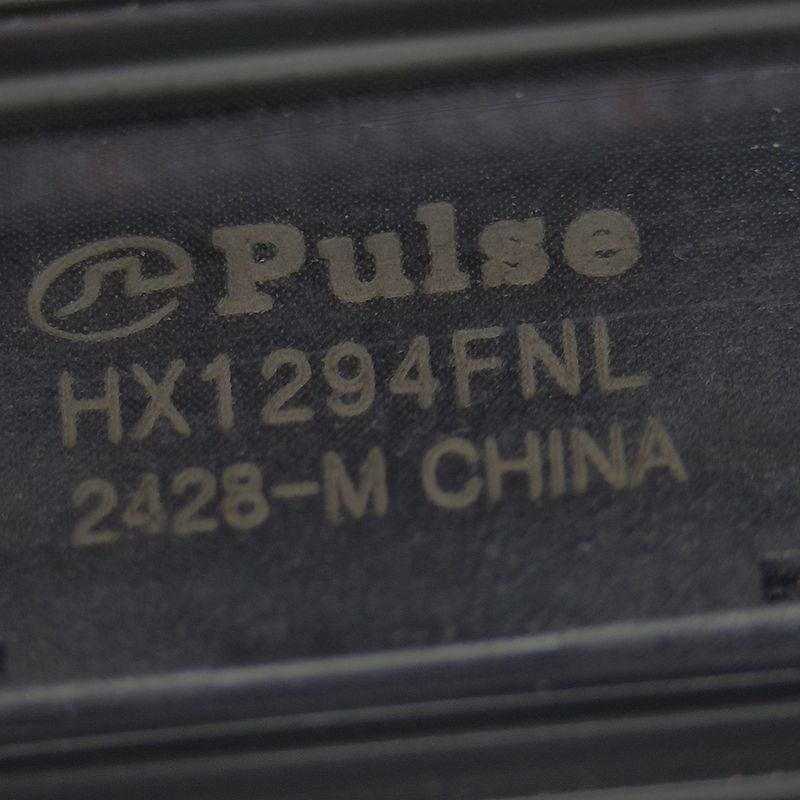

HX1294FNLT
Part Number:
HX1294FNLT
Product Classification:
DIP Switches
Manufacturer:
Amerway Inc.
Description:
PULSE XFMR 1CT:1CT TX 1CT:1CT RX
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Transformers
Pulse Transformers
|
|
|
Manufacturer |
Pulse Electronics
|
|
|
Series |
-
|
|
|
Packaging |

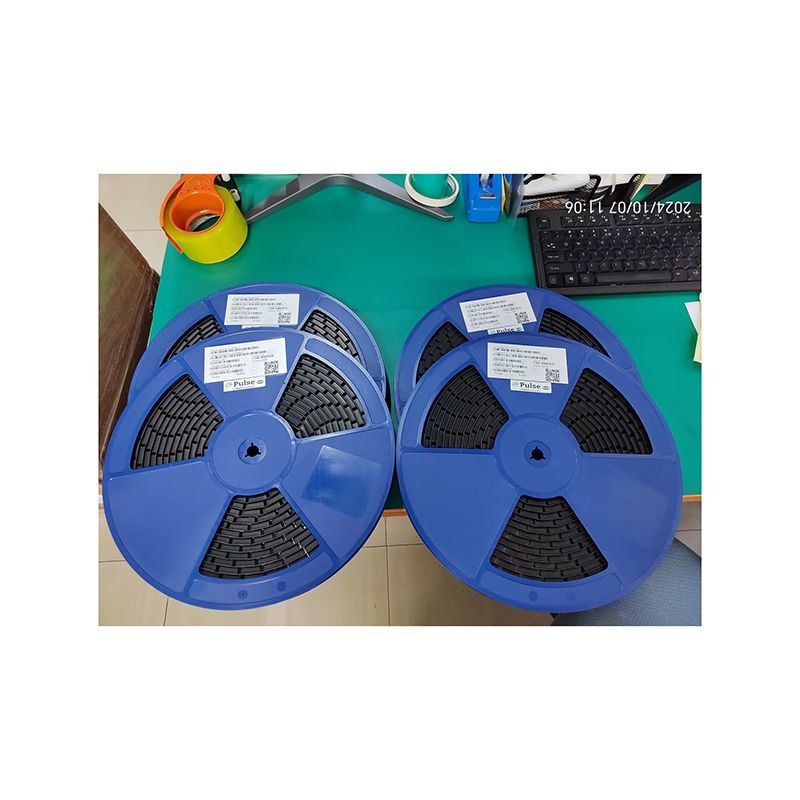

Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Transformer Type |
LAN 10/100 Base-T
|
|
|
Inductance |
325µH
|
|
|
ET (Volt-Time) |
-
|
|
|
Turns Ratio - Primary:Secondary |
1CT:1CT Transmitter, 1CT:1CT Receiver
|
|
|
Mounting Type |
Surface Mount
|
|
|
Size / Dimension |
0.538" L x 0.726" W (13.67mm x 18.44mm)
|
|
|
Height - Seated (Max) |
0.231" (5.87mm)
|
|
|
Operating Temperature |
-40°C ~ 85°C
|
|
|
Weight |
-
|
