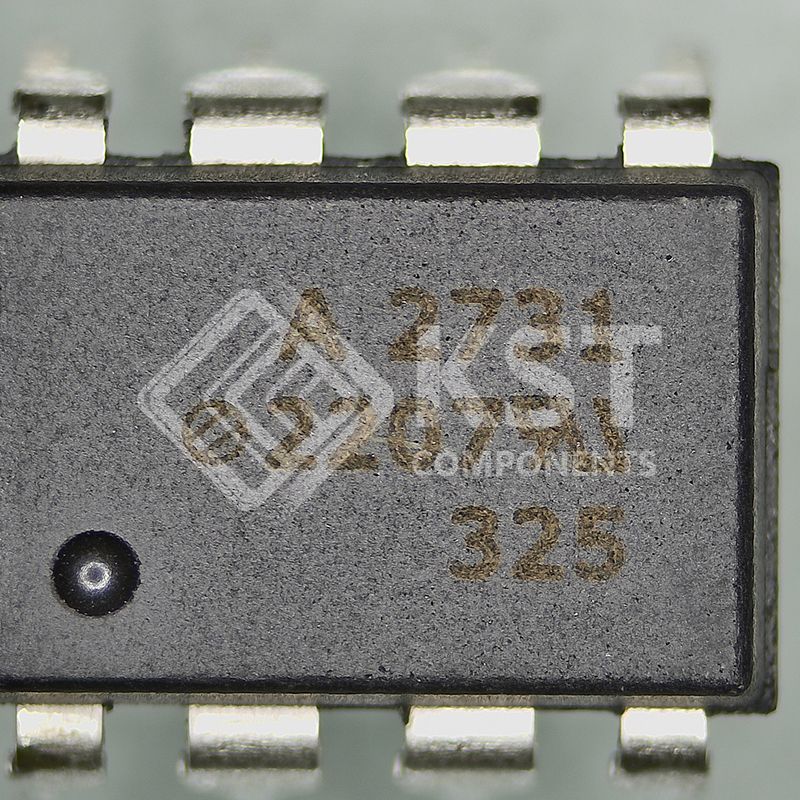

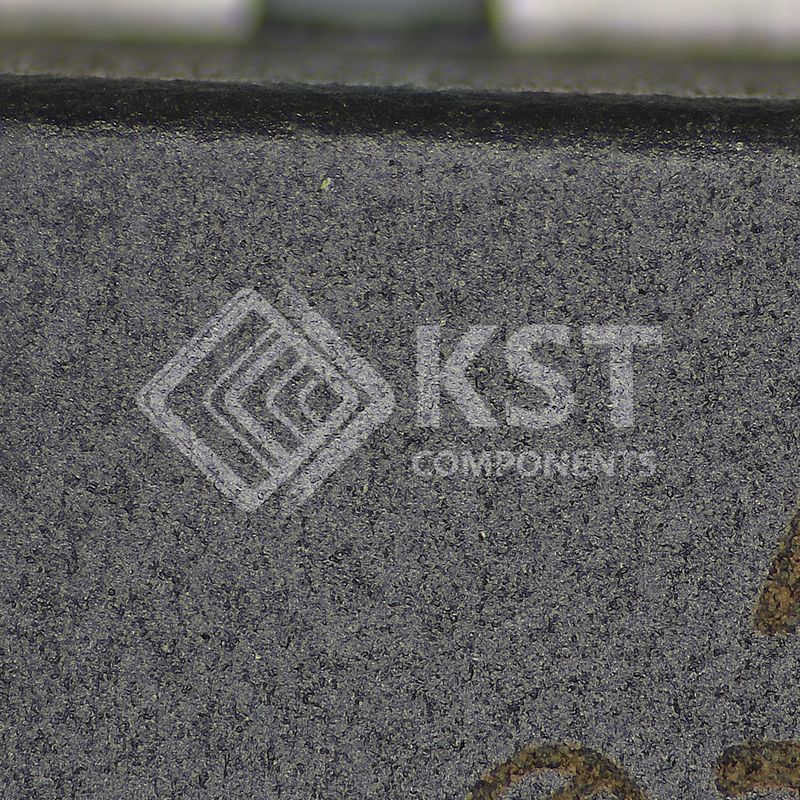

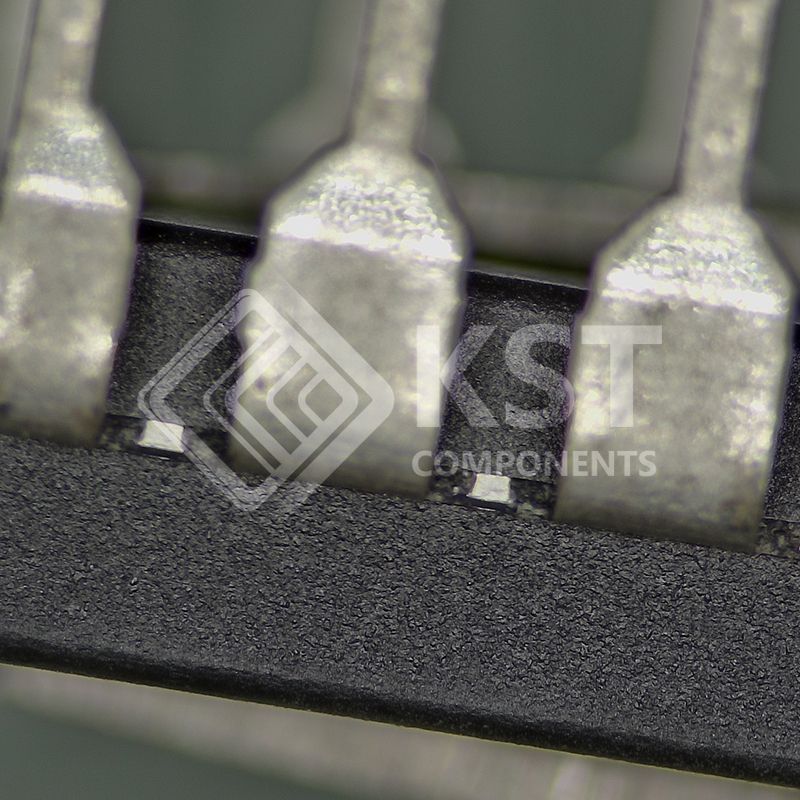

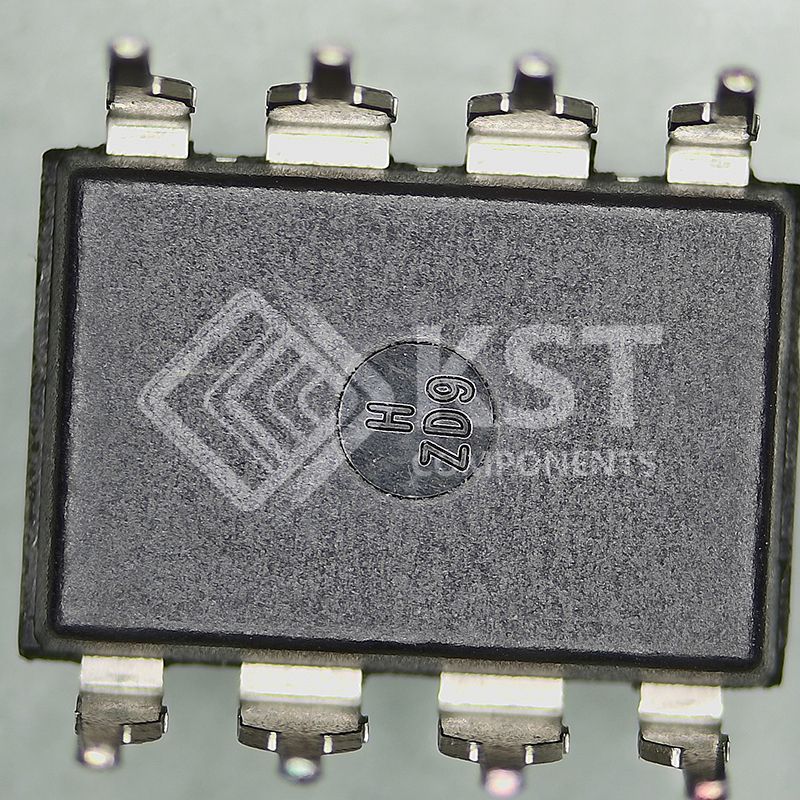

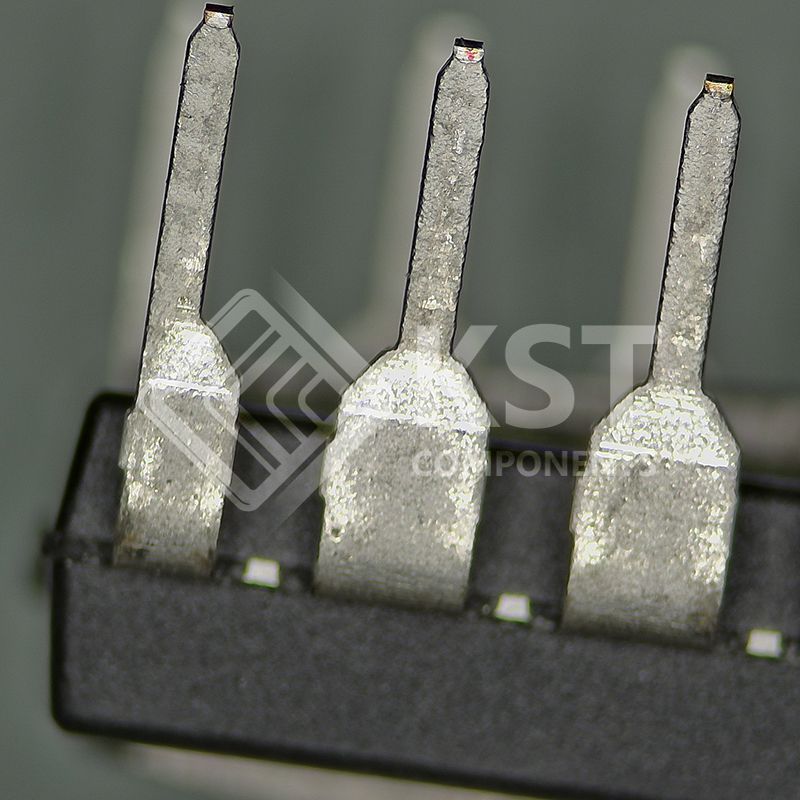

HCPL2731-000E
Part Number:
HCPL2731-000E
Product Classification:
LED Addressable, Specialty
Manufacturer:
Agrowtek Inc.
Description:
OPTOISO 3.75KV 2CH DARLNG 8-DIP
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Isolators
Optoisolators
Transistor, Photovoltaic Output Optoisolators
|
|
|
Manufacturer |
Broadcom Limited
|
|
|
Series |
-
|
|
|
Packaging |
Tube
|
|
|
Part Status |
Active
|
|
|
Number of Channels |
2
|
|
|
Voltage - Isolation |
3750Vrms
|
|
|
Current Transfer Ratio (Min) |
500% @ 1.6mA
|
|
|
Current Transfer Ratio (Max) |
2600% @ 1.6mA
|
|
|
Turn On / Turn Off Time (Typ) |
5µs, 10µs
|
|
|
Rise / Fall Time (Typ) |
-
|
|
|
Input Type |
DC
|
|
|
Output Type |
Darlington
|
|
|
Voltage - Output (Max) |
18V
|
|
|
Current - Output / Channel |
60mA
|
|
|
Voltage - Forward (Vf) (Typ) |
1.4V
|
|
|
Current - DC Forward (If) (Max) |
12 mA
|
|
|
Vce Saturation (Max) |
100mV
|
|
|
Operating Temperature |
0°C ~ 70°C
|
|
|
Mounting Type |
Through Hole
|
|
|
Package / Case |
8-DIP (0.300", 7.62mm)
|
|
|
Supplier Device Package |
8-DIP
|
|
|
Base Product Number |
HCPL-2731 |
