Category |
Isolators
Optocouplers, Optoisolators
Logic Output Optoisolators
|
|
|
Manufacturer |
Broadcom Limited
|
|
|
Series |
-
|
|
|
Packaging |

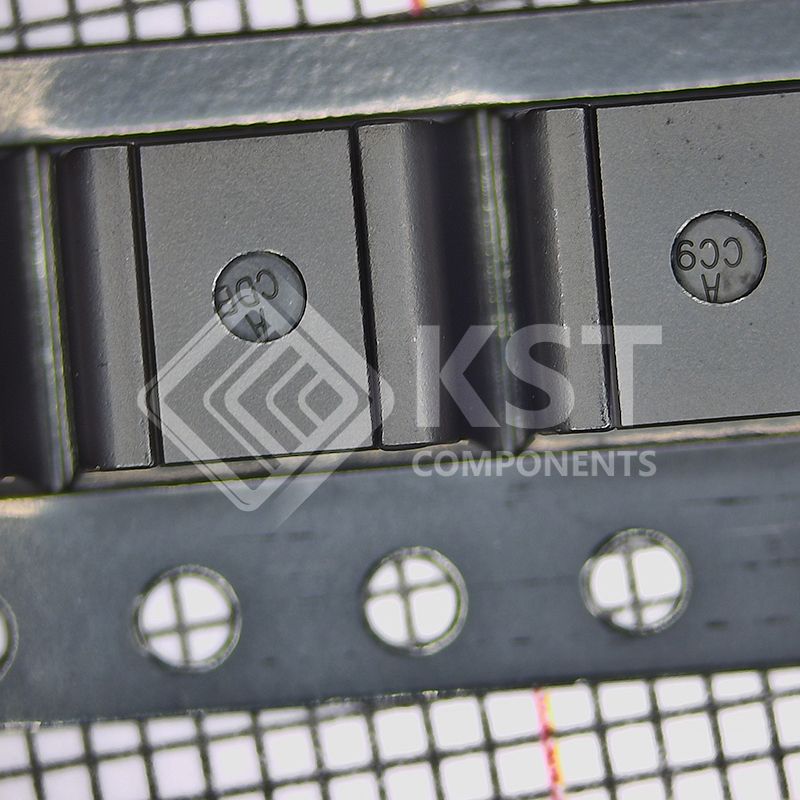

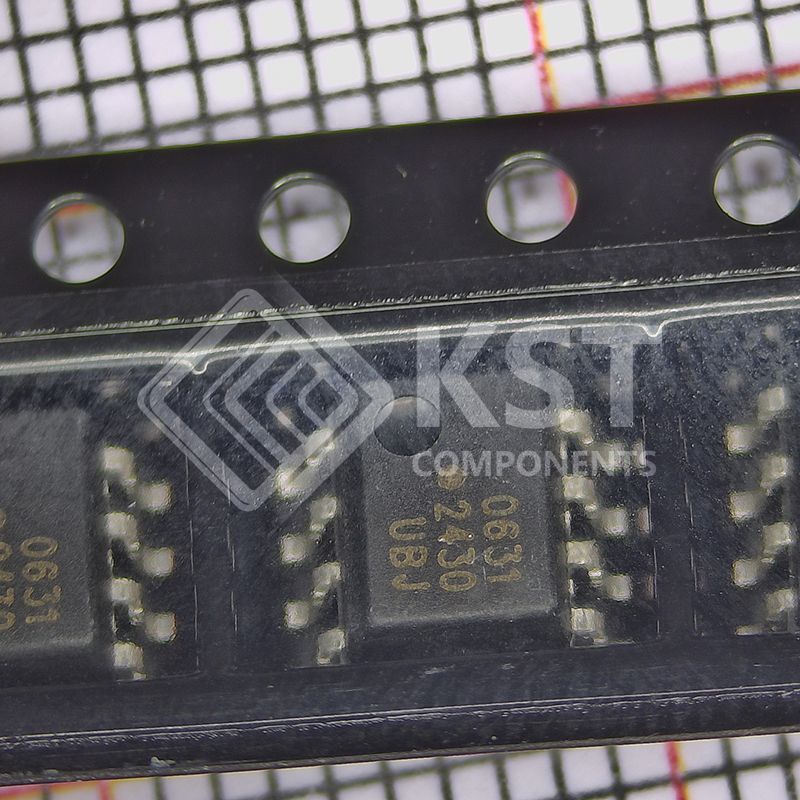

Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Number of Channels |
2
|
|
|
Inputs - Side 1/Side 2 |
2/0
|
|
|
Voltage - Isolation |
3750Vrms
|
|
|
Common Mode Transient Immunity (Min) |
10kV/µs
|
|
|
Input Type |
DC
|
|
|
Output Type |
Open Collector, Schottky Clamped
|
|
|
Current - Output / Channel |
50 mA
|
|
|
Data Rate |
10MBd
|
|
|
Propagation Delay tpLH / tpHL (Max) |
100ns, 100ns
|
|
|
Rise / Fall Time (Typ) |
24ns, 10ns
|
|
|
Voltage - Forward (Vf) (Typ) |
1.5V
|
|
|
Current - DC Forward (If) (Max) |
15mA
|
|
|
Voltage - Supply |
4.5V ~ 5.5V
|
|
|
Operating Temperature |
-40°C ~ 85°C
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |

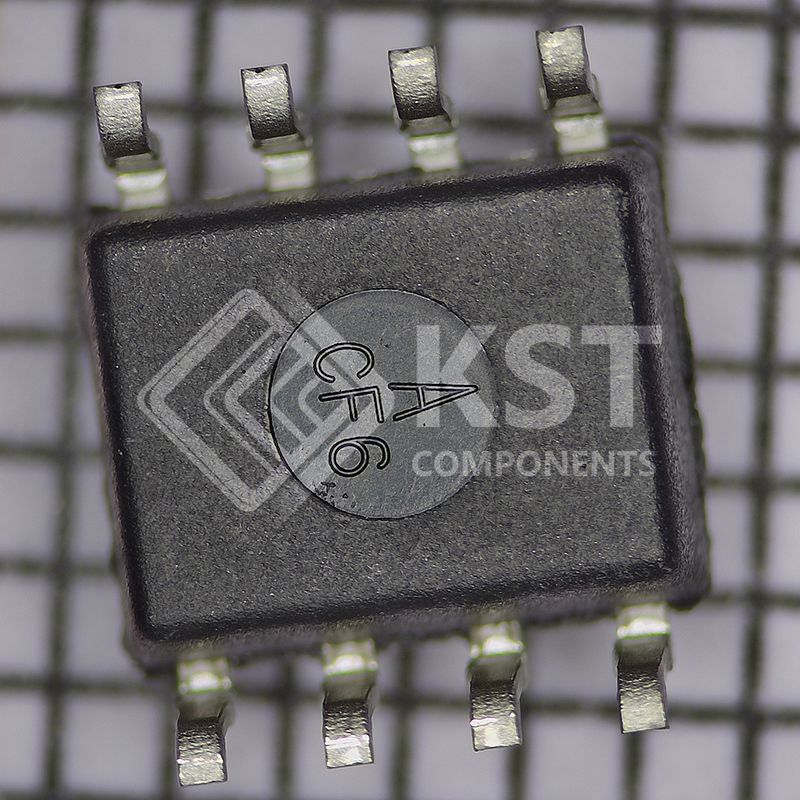

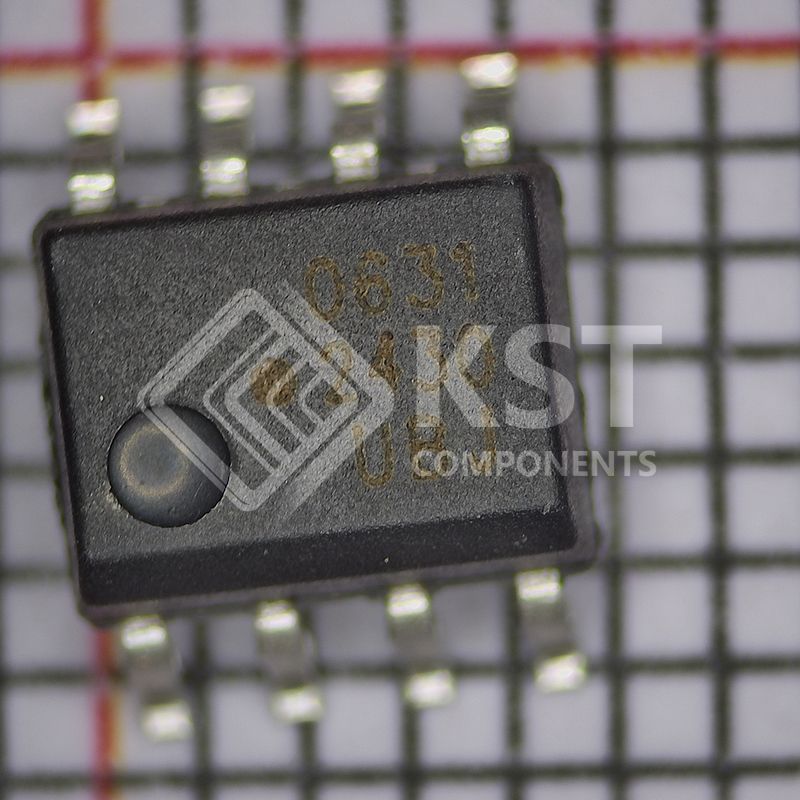

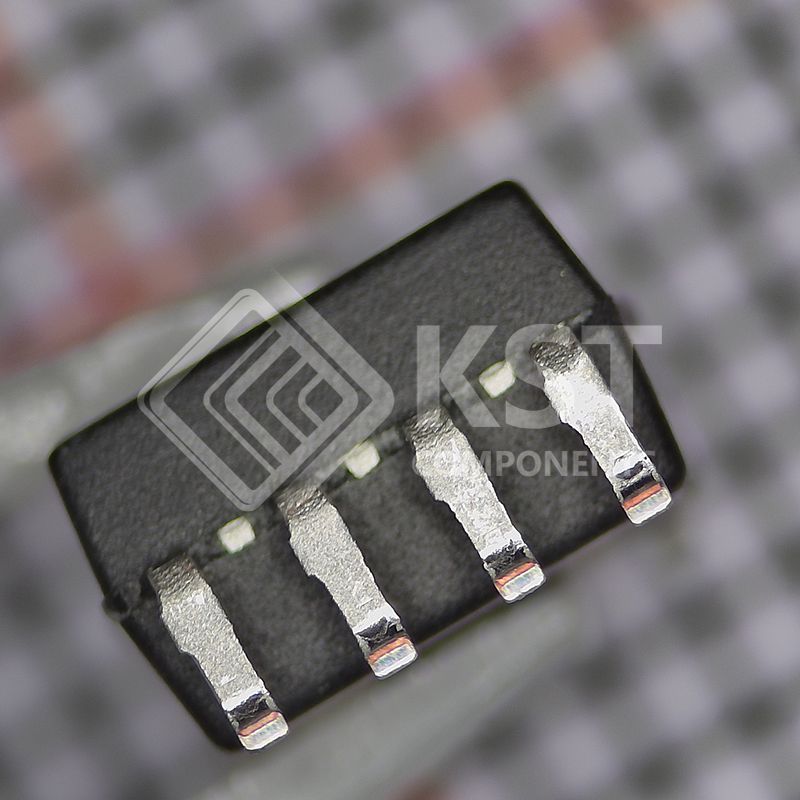

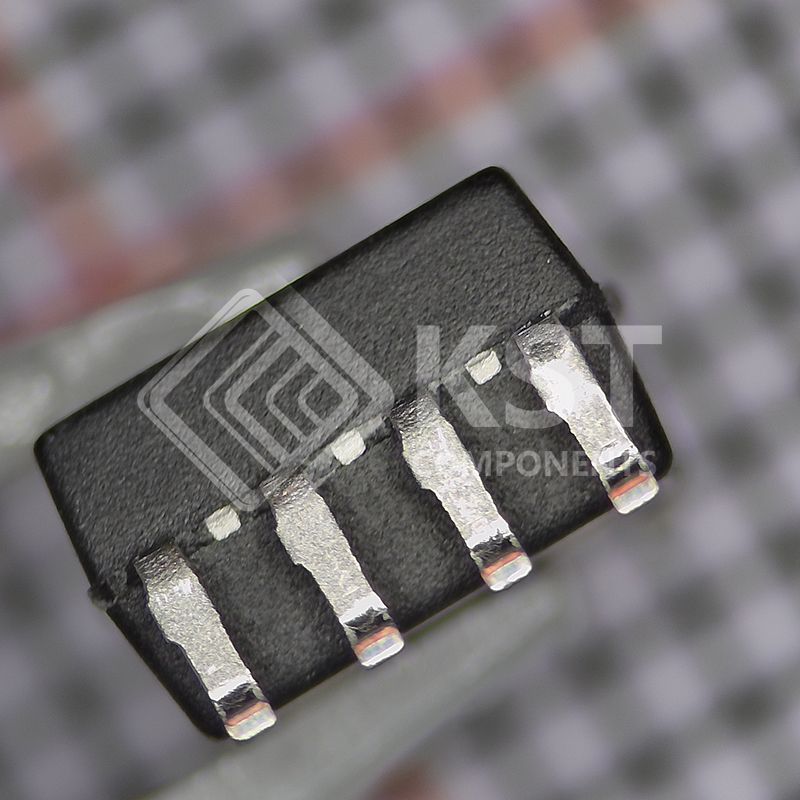

8-SOIC (0.154", 3.90mm Width)
|
|
|
Supplier Device Package |
8-SO Tall
|
|
|
Base Product Number |
HCPL-0631 |
