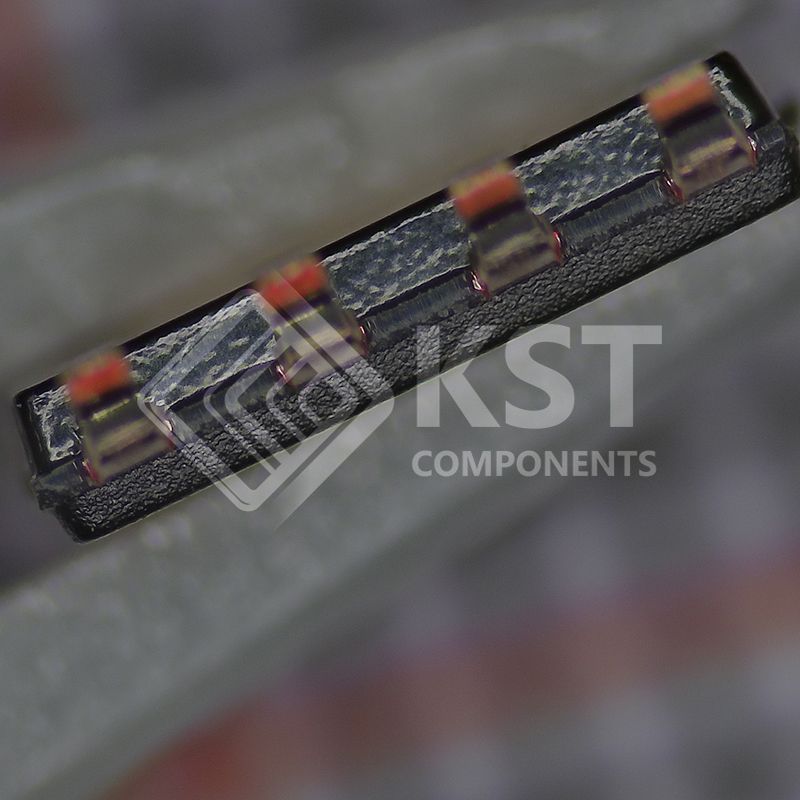

HAT2160H-EL-E
Part Number:
HAT2160H-EL-E
Product Classification:
Solid State Relays (SSR)
Manufacturer:
Advantech
Description:
MOSFET N-CH 20V 60A LFPAK
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Discrete Semiconductor Products
Transistors
FETs, MOSFETs
Single FETs, MOSFETs
|
|
|
Mfr |
Renesas Electronics Corporation |
|
|
Series |
-
|
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
FET Type |
N-Channel |
|
|
Technology |
MOSFET (Metal Oxide) |
|
|
Drain to Source Voltage (Vdss) |
20 V
|
|
|
Current - Continuous Drain (Id) @ 25°C |
60A (Ta) |
|
|
Drive Voltage (Max Rds On, Min Rds On) |
4.5V, 10V
|
|
|
Rds On (Max) @ Id, Vgs |
2.6mOhm @ 30A, 10V
|
|
|
Vgs(th) (Max) @ Id |
2.3V @ 1mA
|
|
|
Gate Charge (Qg) (Max) @ Vgs |
54 nC @ 4.5 V
|
|
|
Vgs (Max) |
±20V
|
|
|
Input Capacitance (Ciss) (Max) @ Vds |
7750 pF @ 10 V
|
|
|
FET Feature |
-
|
|
|
Power Dissipation (Max) |
30W (Tc)
|
|
|
Operating Temperature |
150°C (TJ)
|
|
|
Mounting Type |
Surface Mount
|
|
|
Supplier Device Package |
LFPAK
|
|
|
Package / Case |
SC-100, SOT-669 |
|
|
Base Product Number |
HAT2160 |
