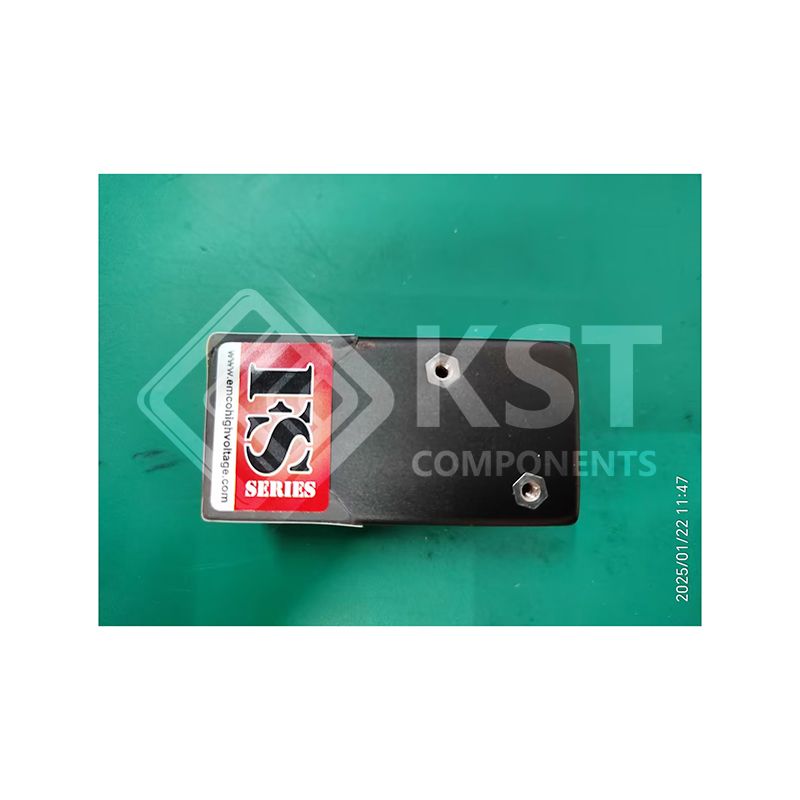

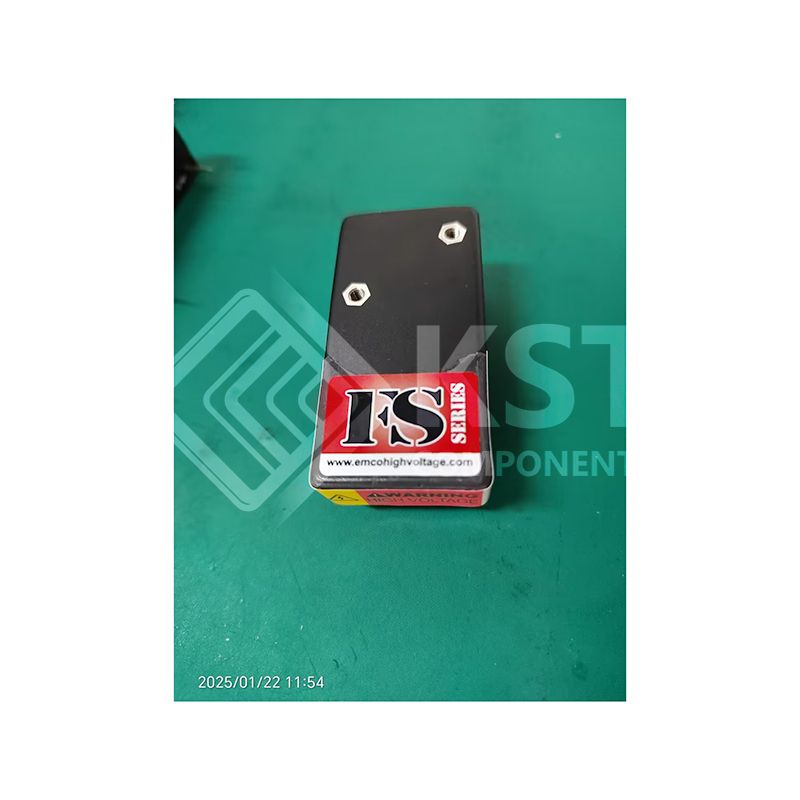

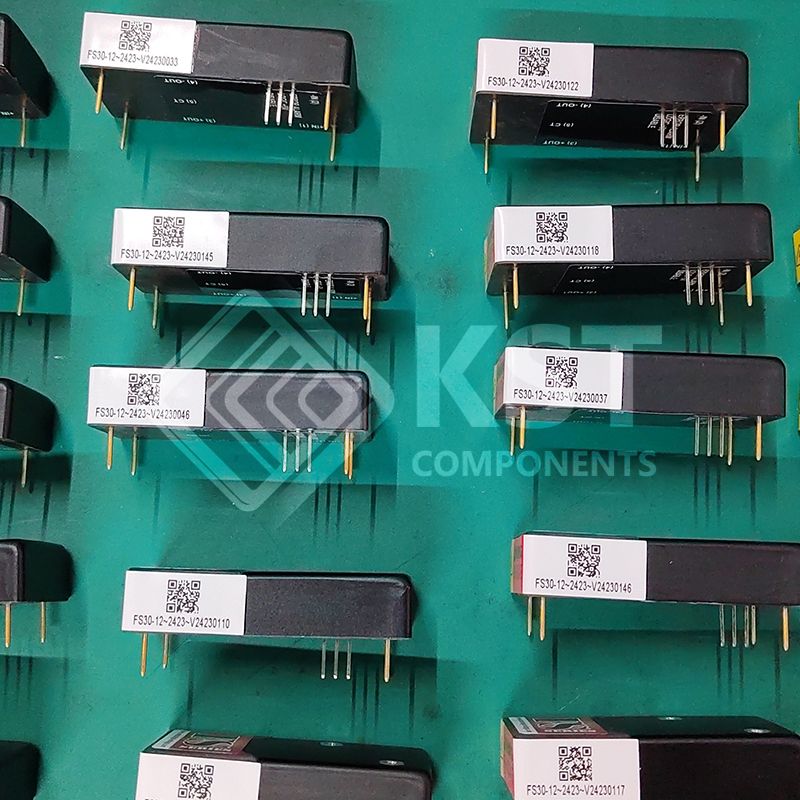

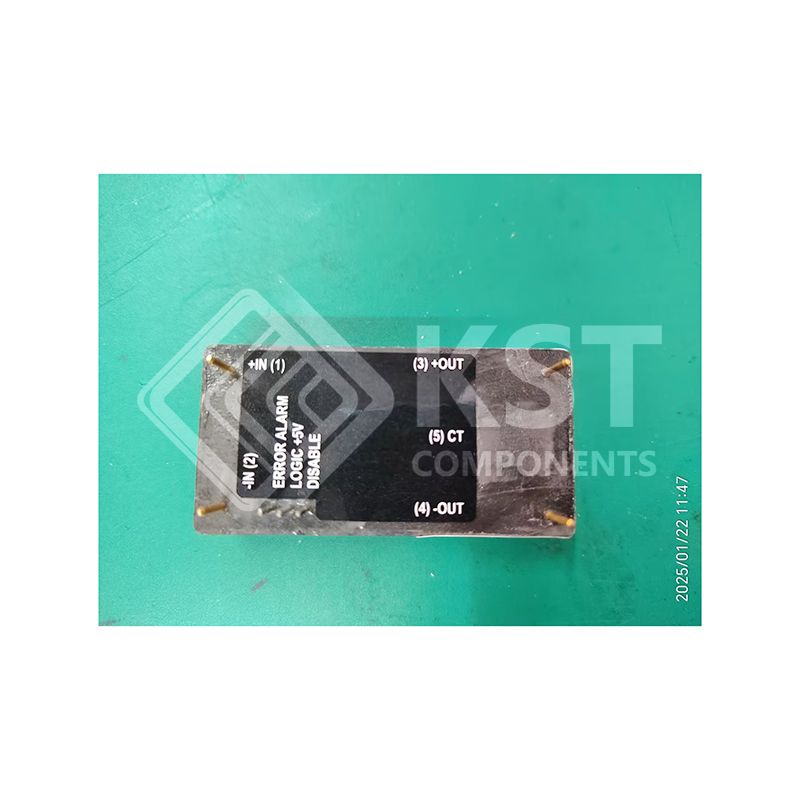

FS30-12
Part Number:
FS30-12
Product Classification:
Programmable Display Switches
Manufacturer:
Anamet Electrical Inc
Description:
DC DC CONVERTER 3000V 10W
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Power Supplies - Board Mount
DC DC Converters
|
|
|
Mfr |
XP Power |
|
|
Series |
XP EMCO - FS (10W) |
|
|
Packaging |
Box
|
|
|
Part Status |
Active
|
|
|
Type |
High Voltage - Isolated Module
|
|
|
Number of Outputs |
1
|
|
|
Voltage - Input (Min) |
0.7V
|
|
|
Voltage - Input (Max) |
12V
|
|
|
Voltage - Output 1 |
3000V |
|
|
Voltage - Output 2 |
-
|
|
|
Voltage - Output 3 |
-
|
|
|
Voltage - Output 4 |
-
|
|
|
Current - Output (Max) |
3.33mA
|
|
|
Power (Watts) |
10 W
|
|
|
Voltage - Isolation |
2.5 kV
|
|
|
Applications |
ITE (Commercial)
|
|
|
Features |
Proportional Output
|
|
|
Operating Temperature |
-25°C ~ 75°C
|
|
|
Efficiency |
85%
|
|
|
Mounting Type |
Through Hole
|
|
|
Package / Case |
4-DIP Module
|
|
|
Size / Dimension |
2.25" L x 1.12" W x 0.50" H (57.2mm x 28.5mm x 12.7mm)
|
|
|
Approval Agency |
-
|
